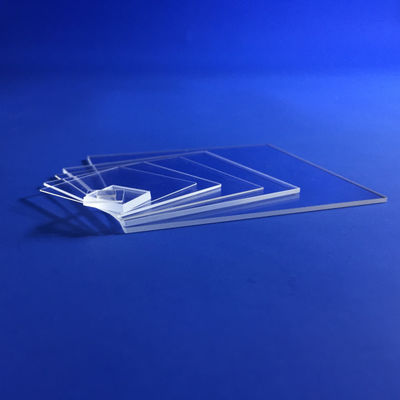

High Precision Smooth Quartz Glass Sheet In Optics Fields

  • High Precision Smooth Quartz Glass Sheet In Optics Fields
  • High Precision Smooth Quartz Glass Sheet In Optics Fields
  • High Precision Smooth Quartz Glass Sheet In Optics Fields
Place of Origin CHINA
Brand Name ZCQ
Certification ISO 9001
Model Number ZCQ-P003
Minimum Order Quantity 1
Price USD0.1 per piece
Packaging Details carton, wooden case
Delivery Time 5 wooking days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chamfer ≤0.2mm×45° Surface Quality 80-50 To 10-5
Clear Aperture ≥90% Parallelism ≤3′
Thickness 0.5-30mm Color Transparent Clear
Material Quartz Shape Square Rectangle
High Light

smooth quartz glass sheet

,

optics fields quartz glass sheet

,

smooth quartz glass plate
Leave a Message
Product Description

High Precision Quartz Glass Sheet



Material: high purity quartz

1. Strong Acids Resistance
Except for some acids corrosive to the glass itself, such as, hydrofluoric acid.

2. Strong Base Resistance
Can withstand 6mol/L sodium hydroxide, holding for 24 hours without degumming, no leakage.

3. Organic Solvents Resistance
Can withstand C₂H₆O, CF4 and benzene, etc., without degumming and no leakage by 24h erosion of organic.

4. High Temperature Resistance
Can withstand high temperatures up to 1200℃



Chemical Purity





 impurities  ppm

(synthetic)

(CVD)JGSI

(Oxy-hyd melting)

JGS2

Electrical melting

JGS3
Al 0.16 17.00 14.44
Fe 0.01 0.36 1.46
Ca 0.31 1.30 2.45
Mg 0.65 0.22 0.46
Ti 0.08 1.3 4.84
Cu 0.01 0.04 0.16
Ni 0.01 0.01 0.04
Co 0.04 0.01 0.02
Mn 0.01 0.03 0.08
K 0.34 0.63 2.16
Na 0.06 1.11 1.33
Li 0.01 0.63 0.81
B / 0.08 0.05
OH 1100~1300 150~250 1~120
SiO2 >99.999% 99.99% 99.92%


Size in stock:

10x10mm T1mm

10x10mm T0.5mm

15x15mm T1mm

15x15mm T0.5mm

20x20mm T1mm

20x20mm T0.5mm

25x25mm T1mm

25x25mm T0.5mm

30x30mm T1mm

30x30mm T0.5mm

40x40mm T1mm

40x40mm T0.5mm

50x50mm T1mm

50x50mm T0.5mm

60x60mm T1mm

60x60mm T0.5mm

100x100mm T1mm

100x100mm T0.5mm

110x110mm T1mm

110x110mm T0.5mm



We also offer custom plate service, please contact us for more details.
