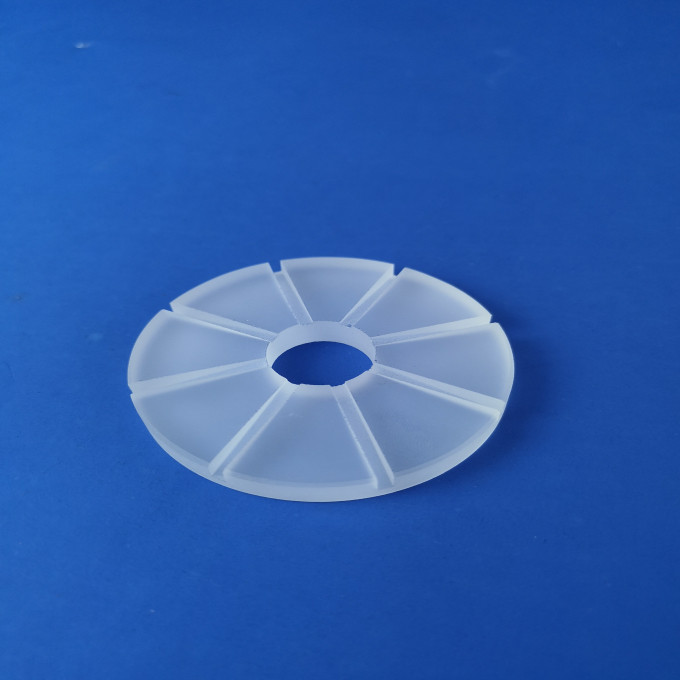

Quartz Glass Plate Slotting Fused Customized Fused Silica Plate
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | ZKTD |
| Certification | SGS,ROHS |
| Model Number | OEM |
| Minimum Order Quantity | 1PC |
| Price | USD 1-20/PC |
| Packaging Details | Bubble Pad, Sponge, Carton, Wooden Box |
| Delivery Time | 5-10Work Day |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000Pcs/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Slotting Customization Of Fused Silica Glass Plate | Material | Quartz Glass |
|---|---|---|---|
| Density | 2.2g/cm3 | Compressive Strength | 1100Mpa |
| Young's Modulus | 72000Mpa | Modulus Of Rigidity | 31000Mpa |
| Mohs Hardness | 5.5~6.5 | Short-term Use Temperature | 1300ºC |
| Long-term Use Temperature | 1100ºC | MOQ | 1 |
| Highlight | Slotting Quartz Glass Plate,Fused Quartz Glass Plate,Customized Fused Silica Plate |
||
Product Description
Quartz Glass Plate Slotting Fused Customized Fused Silica Plate
Rich experience in quartz glass industry
We have more than 25 years industry experience in quartz glass processing. We specialize in quartz glass capillary tubes and rods, quartz glass substrates, CNC machined quartz, and quartz instruments etc. According to product application, we have good grasp of material properties and adapt the proper material into product application.
| Parameter |
Standard Grade |
Precision Grade |
Ultra-precision Grade |
| Dimensional Tolerance | +/-0.2 | +/-0.1 | +/-0.05 |
| Clear Aperture | >80% to >90% | >80% to >90% | >80% to >90% |
| Surface Quality | 80/50 | 60/40 | 40/20 |
| Parallelism | 3 arc min | 1 arc min | 30 arc seconds |
| Wavefront Distortion | 5λper 25mm | 1λper 25mm | λ/4 |
| Protective Bevel | <0.25x45 deg | <0.25x45 deg | <0.25x45 deg |
| Material |
Synthetic fused Silica, Fused quartz, IR quartz, Borosilicate glass,Sapphire crystal, K9, B270, etc. |
||
| Shape |
Circular, square, triangular, oval, and other shaped windows |
||
| Dimension |
Large window, Ultra-thin window, Regular size window |
||
| Precision |
Ordinary refractory window, High precision optical window |
||
| Coating |
High anti-UV Film, antireflective film, gold, aluminum, silver series quartz glass, quartz UV filter, curved reflector and so on. |
||
