Polished Quartz Glass Plates High Precision No Air Bubble Surface

  • Polished Quartz Glass Plates High Precision No Air Bubble Surface
  • Polished Quartz Glass Plates High Precision No Air Bubble Surface
Place of Origin China
Brand Name ZCQ
Certification SGS
Model Number ZCQ
Minimum Order Quantity 1PC
Price USD 1-200/PC
Packaging Details Bubble pad, sponge, carton, wooden box
Delivery Time 5-10work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100pcs/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Precision Polished Quartz Step Sheet Material Silicon Dioxide(Natural Quartz)
Density 2.2g/cm3 Compressive Strength 1100Mpa
Young's Modulus 72000Mpa Modulus Of Rigidity 31000Mpa
Mohs Hardness 5.5~6.5 Surface No Air Bubble,no Process
MOQ 1
High Light

Polished Quartz Glass Plates

,

No Air Bubble Quartz Glass Plates
Leave a Message
Product Description

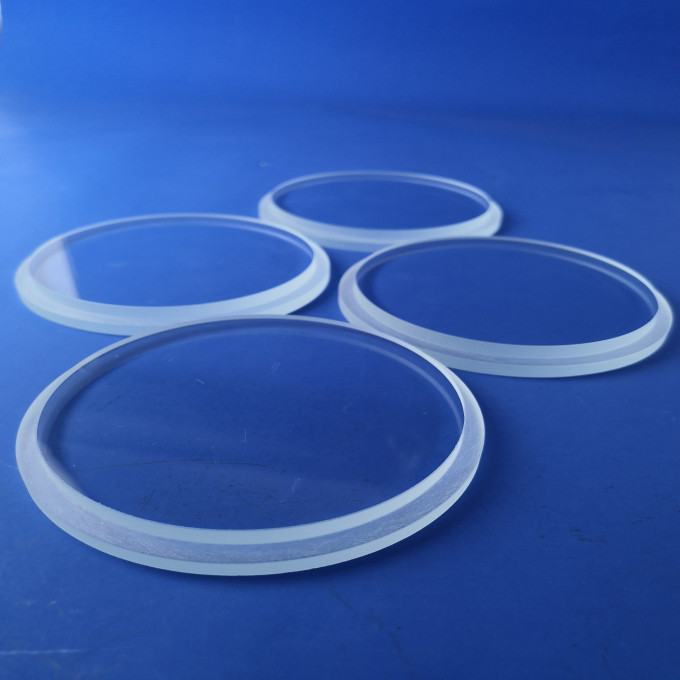

High Precision Polished Quartz Step Sheet



In addition to various round materials, such as quartz glass tubes and quartz glass rods, our company also has quartz glass plates in its product range. Thanks to its outstanding chemical resistance, good optical properties and extremely high temperature resistance, plate material is particularly suitable for applications where thermal processes must be performed and monitored.



 Parameter

Standard Grade

Precision Grade

Ultra-precision Grade
Dimensional Tolerance +/-0.2 +/-0.1 +/-0.05
Clear Aperture >80% to >90% >80% to >90% >80% to >90%
Surface Quality 80/50 60/40 40/20
Parallelism 3 arc min 1 arc min 30 arc seconds
Wavefront Distortion 5λper 25mm 1λper 25mm λ/4
Protective Bevel <0.25x45 deg <0.25x45 deg <0.25x45 deg
Material

Synthetic fused Silica, Fused quartz, IR quartz, Borosilicate glass,Sapphire crystal, K9, B270, etc.
Shape

Circular, square, triangular, oval, and other shaped windows
Dimension

Large window, Ultra-thin window, Regular size window
Precision

Ordinary refractory window, High precision optical window
Coating

High anti-UV Film, antireflective film, gold, aluminum, silver series quartz

glass, quartz UV filter, curved reflector and so on.





Polished Quartz Glass Plates High Precision No Air Bubble Surface 0

Polished Quartz Glass Plates High Precision No Air Bubble Surface 1

Polished Quartz Glass Plates High Precision No Air Bubble Surface 2

Polished Quartz Glass Plates High Precision No Air Bubble Surface 3

Rich experience in quartz glass industry

We have more than 25 years industry experience in quartz glass processing. We specialize in quartz glass capillary tubes and rods, quartz glass substrates, CNC machined quartz, and quartz instruments etc. According to product application, we have good grasp of material properties and adapt the proper material into product application.



Strong technical force in processing and application

Beijing Zhong Cheng Quartz Glass Co., Ltd(ZCQ) is a high-tech manufacturer specializing in the production and customization of quartz glass products and optical glass products. We has excellent technical strength, strong innovation ability and stable product quality. Our processing method is rich, drawing of glass, cold and thermal processing, micro size machining, high precision and difficulty process, combination of multiple processing methods, which guarantee that our product is excellent in all aspects.



Integrity and Quality Assurance

We are well known in quartz glass industry. Quality is the lifeline of enterprise survival and development. Integrity is the source of enterprise reputation, the foundation of standing and the foundation of development. Through unremitting efforts and continuous improvement, we have created a good manufacturing platform of optical glass for customers.

Polished Quartz Glass Plates High Precision No Air Bubble Surface 4
