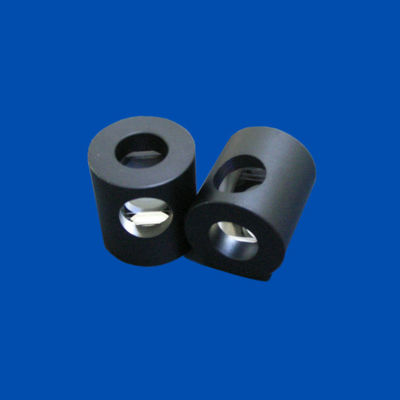

YVO4 Glan Laser Prism For High Power Laser Systems

  • YVO4 Glan Laser Prism For High Power Laser Systems
Place of Origin China
Brand Name NONE
Certification ISO 9001
Model Number ZCQ-QC-GTP-1
Minimum Order Quantity 1 PCS
Packaging Details Export wooden boxes and cartons
Delivery Time 2-3 weeks
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Glan Laser Prism For High-Power Laser Systems Material Calcite, A-BBO, YVO4
Beam Deviation < 3 Arc Minutes Damage Threshold >200MW/cm2@1064nm, 20ns, 20Hz
High Light

yvo4 glan laser prism

,

high-power systems glan laser prism
Leave a Message
Product Description



Glan Laser Prism For High-Power Laser Systems



Gran laser prism is a polarizing device made of two prisms of the same birefringent crystal material, with an air gap structure in the middle. This prism is an upgrade of the Gran Taylor prism with an escape window and is suitable for high-power laser systems.

This prism has a very high laser damage threshold and a slightly higher extinction ratio than ordinary Gran Taylor prisms. After passing through the prism, the beam transmits pure P-polarized light, while the side escape window emits pure S-polarized light and a small portion of P-polarized light. It can be used in situations where both polarizations are needed or for combining two polarized lights.



Characteristic:

• Air gap design

• High polarization output

• There are escape windows on the side

• Suitable for high power applications

• Can be plated with broadband antireflective film



Processing indicators:

Material: Calcite Gran laser prism a-BBO Gran laser prism YVO4 Gran laser prism
Wavelength Range: 350-2000nm 190-3500nm 500-4000nm
Extinction Ratio: <5*10-5 <5*10-6 <5*10-6
Surface Quality: 20/10 Scratch/Dig
Beam Deviation: < 3 arc minutes
Wavefornt Distortion: <λ/4@633nm
Damage Threshold: >500MW/cm2@1064nm, 20ns, 20Hz
Coating: Standard product: P Coating, customizable coating according to customer requirements
Mount Anodized aluminum oxide bracket, available in square or circular shape
