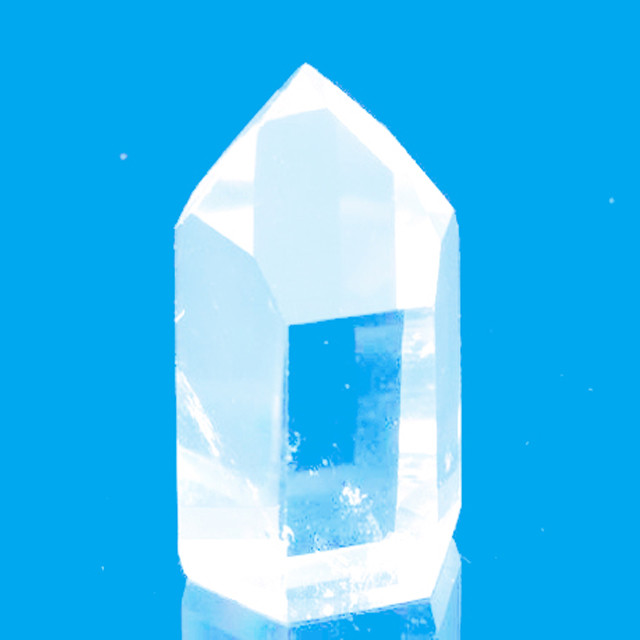

High Density Optical Quartz Crystal 150-4000nm
| Place of Origin | China |
|---|---|
| Brand Name | ZCQ |
| Certification | RoHS |
| Model Number | Customized |
| Minimum Order Quantity | Negotiated |
| Packaging Details | Safe packaging |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Using Wavelength | 150-4000nm | Density | 2.65g/cm3 |
|---|---|---|---|
| Deliquescence | Non Deliquescence | Mohs Hardness | 7 |
| Temperature Coefficient | Aa=6.2x10-6/k Ac=10.7x10-6/k | Damage Threshold | >1GW/cm2 |
| Refractive Index | No=1.5350, Ne=1.5438 @ 1 µm | Processing Thickness | 0.1-100mm |
| Directional Accuracy | <6 Arc Min | Parallelism | <1 Arc Sec |
| High Light | high density optical quartz crystal,150nm optical quartz crystal,4000nm optical quartz crystal |
||
Product Description
Quartz Crystal
Quartz crystal (Quartz) is an excellent artificial growth crystal, which is grown in autoclave by hydrothermal method, and has left and right rotations. Quartz crystal has low stress birefringence and high refractive index uniformity, with a transmittance range of 0.15-4um. Due to its piezoelectric properties, low thermal expansion coefficient, excellent mechanical and optical properties, quartz crystals are used in electronics, precision optics and laser technology, optical communication, X-ray optics and pressure sensors.
Physical properties of quartz crystal:
| Using Wavelength | 150-4000nm |
| Density | 2.65g/cm3 |
| Deliquescence | Non deliquescence |
| Mohs hardness | 7 |
| temperature coefficient | aa=6.2x10-6/k ac=10.7x10-6/k |
| damage threshold | >1GW/cm2 |
| Refractive index | no=1.5350, ne=1.5438 @ 1 µm |
Processing Specifications
| Specification | Quartz Crystal |
| Using Wavelength | 150-4000nm |
| Processing thickness | 0.1-100mm |
| Directional accuracy | <6 arc min |
| Parallelism | <1 arc sec |
| Surface quality | 10/5 |
| Flatness | λ/ 10 |
| Clear aperture | >95% |
| Coating | Custom according to customer’s requirement |
