Gran Taylor Prism For Medium To Low Power Systems
| Place of Origin | China |
|---|---|
| Brand Name | NONE |
| Certification | ISO 9001 |
| Model Number | ZCQ-QC-GTP-1 |
| Minimum Order Quantity | 1 PCS |
| Packaging Details | Export wooden boxes and cartons |
| Delivery Time | 2-3 weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Gran Taylor Prism Suitable For Medium To Low Power Systems | Material | Calcite, A-BBO, YVO4 |
|---|---|---|---|
| Surface Quality | 20/10 Scratch/Dig | Damage Threshold | >200MW/cm2@1064nm, 20ns, 20Hz |
| High Light | gran taylor prism,medium to low power systems taylor prism |
||
Product Description

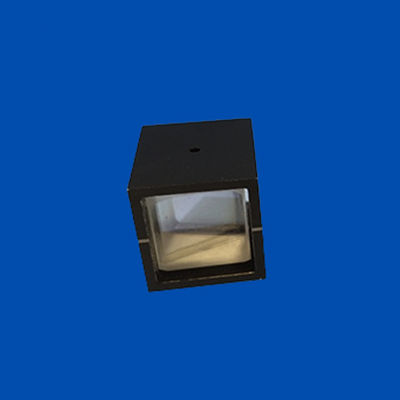

Gran Taylor Prism Suitable For Medium To Low Power Systems
The Gran Taylor prism is a polarizing device made of two identical birefringent crystal materials. It adopts a compact design, shorter in length than the Gran laser prism, and has no escape window on the side, making it suitable for medium to low power systems.
Characteristics of Gran Taylor prism:
• Air gap design
• Compact structure
• High polarization output
• No escape window on the side
• Suitable for medium to low power applications
• Can be plated with broadband antireflective film
Gran Taylor prisms made of different materials have different receiving angles.
| Material: | Calcite Glan Taylor Polarizer | a-BBO Glan Taylor Polarizer | YVO4 Glan Taylor Polarizer |
| Wavelength Range: | 350-2300nm | 190-3500nm | 500-4000nm |
| Extinction Ratio: | <5*10-5 | <5*10-6 | <5*10-6 |
| Surface Quality: | 20/10 Scratch/Dig | ||
| Beam Deviation: | < 3 arc minutes | ||
| Wavefornt Distortion: | <λ/4@633nm | ||
| Damage Threshold: | >200MW/cm2@1064nm, 20ns, 20Hz | ||
| Coating: | Standard product: P Coating, customizable coating according to customer requirements | ||
| Mount | Black Anodized Aluminium | ||
