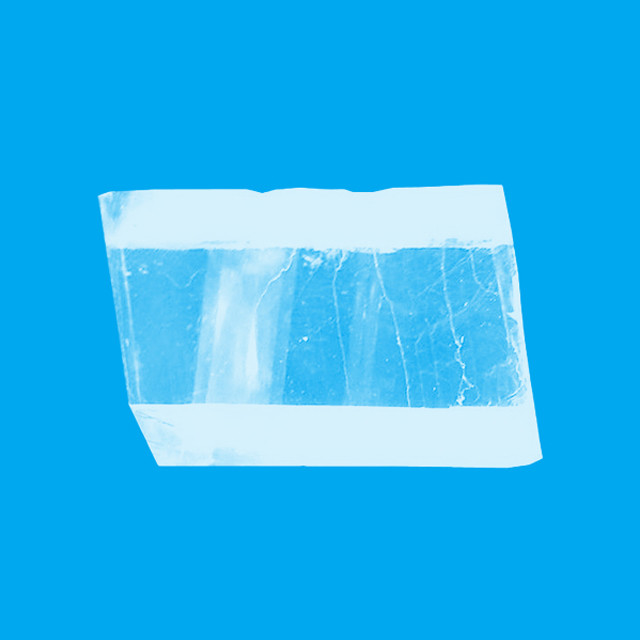

350-2300nm Clear Calcite Crystal Use In Polarization Devices

  • 350-2300nm Clear Calcite Crystal Use In Polarization Devices
Place of Origin China
Brand Name ZCQ
Certification RoHS
Model Number Customized
Minimum Order Quantity Negotiated
Packaging Details Safe packaging
Delivery Time 3-4 weeks
Payment Terms T/T
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Calcite Crystal Using Wavelength 350-2300nm
Density 2.7 G/cm 2 Deliquescence Non Deliquescence
Mohs Hardness 3 Thermal Conductivity αa=24.39 X10-6/K，ac=5.68X10-6/K
Damage Threshold >1GW/cm2 Processing Dimension 1mm-40mm
Surface Quality 10-5 Optical Axis Accuracy 6 Arc Min
High Light

2300nm clear calcite crystal

,

polarization devices clear calcite crystal
Leave a Message
Product Description

Calcite Crystal Used In Polarization Devices



Calcite crystal is a kind of natural birefringent material, which has good optical properties in near infrared. Calcite crystal is widely used in polarization devices because of its large size and low price.

Application: Gran prism, polarization beam splitter, etc.



Calcite Crystal Characteristics

Using Wavelength 350~2300nm
Density 2.7 g/cm 2
Deliquescence Non deliquescence
Mohs hardness 3
Thermal conductivity αa=24.39 X10-6/K
ac=5.68X10-6/K
Damage threshold >1GW/cm2
Refractive index

No= 1.66315,Ne= 1.48854,532nm

No=1.64237,Ne=1.47968,1064nm
Sellmeier equation (λ in μm)

no2=2.69705 + 0.0192064/(λ2-0.01820) - 0.0151624λ2

ne2=2.18438 + 0.0087309/(λ2-0.01018) - 0.0024411λ2



Processing Specifications

Material Calcite crystal
Processing dimension 1mm-40mm
Surface quality 10-5
Optical axis accuracy 6 arc min
Parallelism <10 arc sec
Flatness λ/4@633nm
Clear aperture >90%
Coating Coating according to customer’s requirement
Bracket Custom according to customer’s requirement
