Machining Quartz Glass Quartz Glass Plate Transparent With Small Holes
| Place of Origin | Shandong |
|---|---|
| Brand Name | ZKTD |
| Certification | SGS,ISO, |
| Model Number | OEM |
| Minimum Order Quantity | 1pc Or As Negotiate |
| Price | USD 3-15 / Pc |
| Packaging Details | Wooden Box, Carton |
| Delivery Time | 5-7 Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000PCS/Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Softening Point | 1683℃ | Tensile Strength | 48.3Mpa |
|---|---|---|---|
| Applications | Chemical Indust | ||
| Highlight | high accurate quartz glass plate,cnc laser drilling quartz glass plate,small holes fused silica plate |
||
Product Description

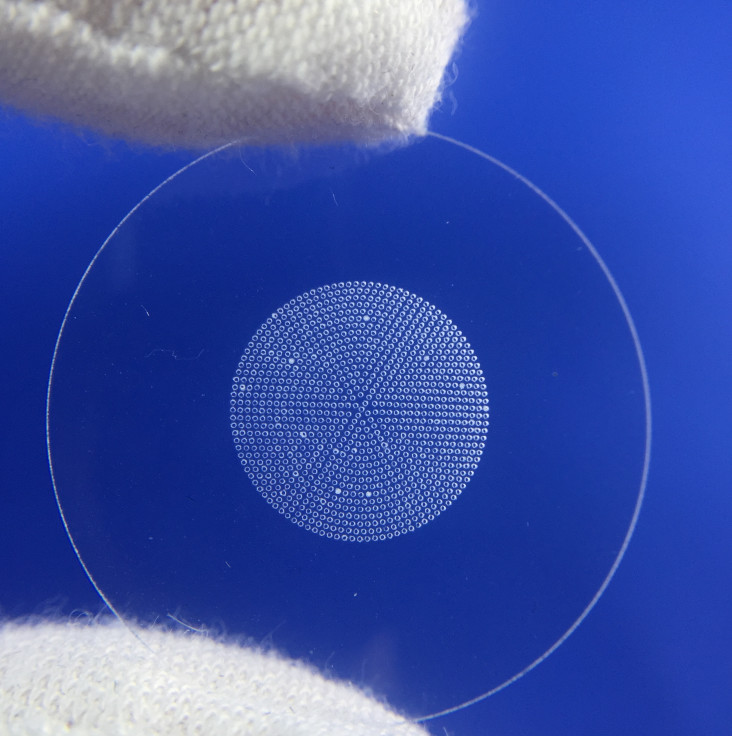

Machining Quartz Glass Quartz Glass Plate Transparent With Small Holes
| Round shape plate |
Diamater:8-500mm Thickness:1-100mm |
| Rectangle |
Length:10mm-750mm Width:10-550mm Thickness:1-100mm |
| Triangle | According to customer’s design |
| Trapezoid | According to customer’s design |
Performance table:
| Bending Strength | 67Mpa | Hot work temperature | 1750~2050°C |
| Tensile Strength | 48.3Mpa | The temperature for a short time | 1300°C |
| Poisson's Ratio | 0.14~0.17 | The temperature for a long time | 1100°C |
| Elastic Modulus | 71700Mpa | Resistivity | 7×107Ω.cm |
| Shearing Modulus | 31000Mpa | Dielectric Strength | 250~400Kv/cm |
| Moths Hardness | 5.3~6.5(Moths Scale) | Dielectric Constant | 3.7~3.9 |
| Deformation Point | 1280°C | Dielectric absorption coefficient | <4×104 |
| Specific Heat(20~350°C) | 670J/Kg°C | Dielectric loss coefficient | <1×104 |
| Thermal Conductivity(20°C) | T1.4W/m°C | Typical Mechanical Property of Fused Quartz | |
Advantages:
| 1.Very Low Coefficient of Thermal Expansion |
| 2.Resistance to High Temperature |
| 3.High Chemical Purity |
| 4. High Corrosion Resistance |
| 5.Extensive Optical Transmission from Ultra-Violet to Infra-Red |
| 6.Excellent Electrical Insulation Qualities |
