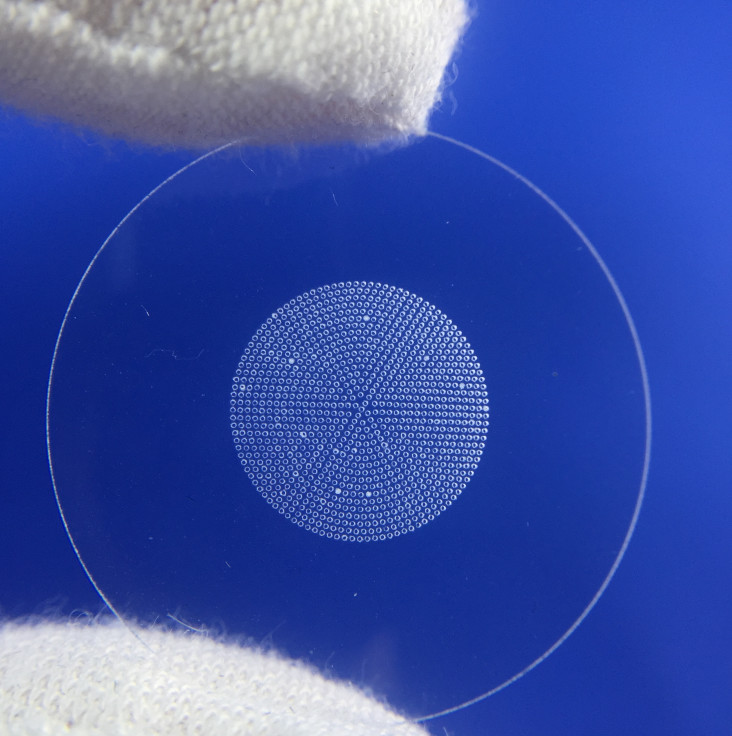

High Accurate Quartz Glass Plate Cnc Laser Drilling Transparent With Small Holes
Place of Origin | China |
---|---|
Brand Name | ZCQ |
Certification | SGS,ISO, |
Model Number | ZCQ |
Minimum Order Quantity | 1pc |
Price | USD 3-15 /PC |
Packaging Details | Wooden box carton packaging, protective air cushion |
Delivery Time | 5-7days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000PCS/Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Quartz Glass | Size | OEM |
---|---|---|---|
Purity | 99.99% | Work Temperature | 1100 Degree |
Place Of Origin | China | Application | Heating |
Density | 2.2g/cm2 | Dimension | Accurate With Tight Tolerance |
High Light | high accurate quartz glass plate,cnc laser drilling quartz glass plate,small holes fused silica plate |
China Factory Custom High Accurate CNC Laser Drilling Transparent Quartz Glass Plate With Small Holes
Through CNC design and software control, the Quartz Part could be precisely manufactured especially when doing the arc, lope, slots, sphere, hole and angle processing.
CHARACTERISTICS: Custom Designed Dimensions; High Precision; Long Working Life
Specification:
Round shape plate |
Diamater:8-500mm Thickness:1-100mm |
Rectangle |
Length:10mm-750mm Width:10-550mm Thickness:1-100mm |
Triangle | According to customer’s design |
Trapezoid | According to customer’s design |
Performance table:
Bending Strength | 67Mpa | Hot work temperature | 1750~2050°C |
Tensile Strength | 48.3Mpa | The temperature for a short time | 1300°C |
Poisson's Ratio | 0.14~0.17 | The temperature for a long time | 1100°C |
Elastic Modulus | 71700Mpa | Resistivity | 7×107Ω.cm |
Shearing Modulus | 31000Mpa | Dielectric Strength | 250~400Kv/cm |
Moths Hardness | 5.3~6.5(Moths Scale) | Dielectric Constant | 3.7~3.9 |
Deformation Point | 1280°C | Dielectric absorption coefficient | <4×104 |
Specific Heat(20~350°C) | 670J/Kg°C | Dielectric loss coefficient | <1×104 |
Thermal Conductivity(20°C) | T1.4W/m°C | Typical Mechanical Property of Fused Quartz |
Advantages:
1.Very Low Coefficient of Thermal Expansion |
2.Resistance to High Temperature |
3.High Chemical Purity |
4. High Corrosion Resistance |
5.Extensive Optical Transmission from Ultra-Violet to Infra-Red |
6.Excellent Electrical Insulation Qualities |
