UV Quartz Coating Plate For Curing Equipment Fully Customizable

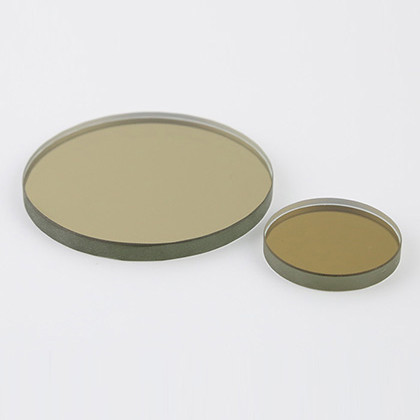

  • UV Quartz Coating Plate For Curing Equipment Fully Customizable

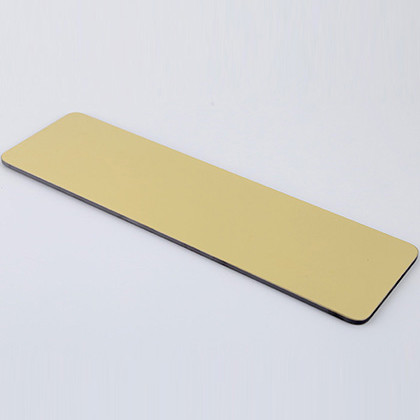

  • UV Quartz Coating Plate For Curing Equipment Fully Customizable

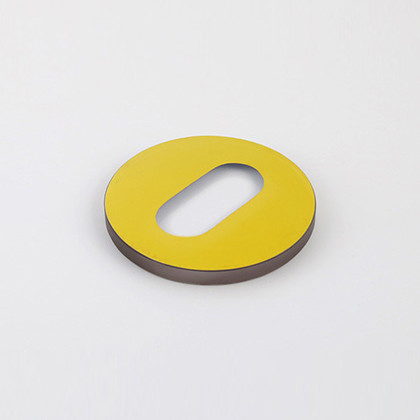

  • UV Quartz Coating Plate For Curing Equipment Fully Customizable
Place of Origin China
Brand Name ZKTD
Certification ISO 9001, RoHs
Model Number ZKTD-G001
Minimum Order Quantity 1 pc
Price 0.1 USD per pc
Packaging Details carton, wooden case
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UV Quartz Coating Plate For Curing Equipment Material High Purity Quartz
Feature Allows UV Ray To Transmit And Reflect IR Ray Application Curing Equipment
Shape Customized Size Customized
High Light

fully customizable Quartz Coating Plate

,

UV Quartz Coating Plate

,

Curing Equipment Quartz Coating Plate
Leave a Message
Product Description

UV Quartz Coating Plate for Curing Equipment



Descriptions of UV Quartz Coating Plate for Curing Equipment
1. In addition to being used as an anti-heat blocker, the UV quartz plate filter can also be used in UV curing equipment.
2. The quartz plate filter allows UV ray to transmit and reflect IR ray, and also can cold down the printing object for higher printing quality.

Applications of UV Quartz Coating Plate for Curing Equipment only used for the Heidelberg IST UV Curing System, Swedish M2, Kamman15-40 Offset Printing Equipment, 4M, ODME, Data Disc Instrument, SINGLUS, German ELTOSCH and German IST.

Technical Specification of UV Quartz Coating Plate for Curing Equipment
Ordinary Application Wavelength: 365nm, 420nm
Dimension of Quartz Substrate: All Custom Design (e.g.) L150mm×W150mm×T 2-3mm

Parameter Standard Grade Precision Grade Ultra-precision Grade
Dimensional Tolerance +/-0.2 +/-0.1 +/-0.05
Clear Aperture >80% to >90% >80% to >90% >80% to >90%
Surface Quality 80/50 60/40 40/20
Parallelism 3 arc min 1 arc min 30 arc seconds
Wavefront Distortion 5λper 25mm 1λper 25mm λ/4
Protective Bevel <0.25x45 deg <0.25x45 deg <0.25x45 deg
Material Synthetic fused Silica, Fused quartz, IR quartz, Borosilicate glass,Sapphire crystal, K9, B270, etc.
Shape Circular, square, triangular, oval, and other shaped windows
Dimension Large window, Ultra-thin window, Regular size window
Precision Ordinary refractory window, High precision optical window
Coating

High anti-UV Film, antireflective film, gold, aluminum, silver series quartz

glass, quartz UV filter, curved reflector and so on.
