Transparent Large Quartz Window - Fully Customizable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xThermal Shock Resistance | Excellent | Density | 2.2(g/cm3) |
---|---|---|---|
Thickness | Customizable | Type | Clear Quartz Plate |
Chamfer | ≤0.2mm×45° | Working Temparature | 1100℃ |
Transformation Point | 1280ºC | Surface Finish | Polished 80/50 40/20 10/5 |
Melt Point | 1750-1850℃ | Uv Resistance | Excellent |
Transparency | High | ||
High Light | Transparent Quartz Window,Fully Customizable Quartz Window,Large Quartz Window |

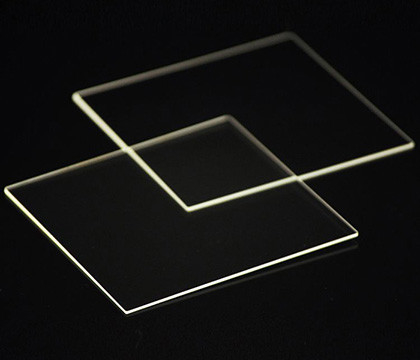

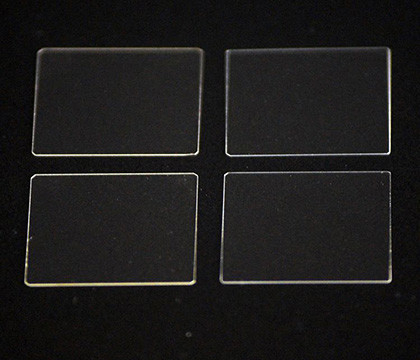

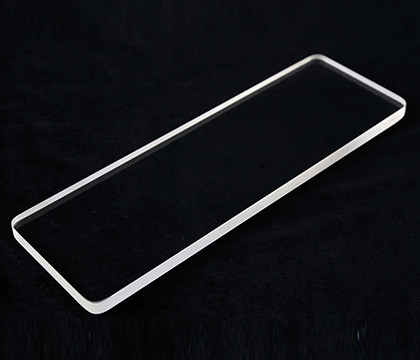

Transparent Large Quartz Window - fully customizable
Technical Specification of Large Quartz Window
Φ400mm-Ф1000mm×Custom-Made Thickness
L 900mm×W 700mm×Custom-Made Thickness
Dimension Tolerance: ±0.05mm-±1mm
As a large quartz window manufacturer and supplier with over 20 years of experience, we at ZKTD can provide a wide variety of optical fused quartz products, such as SiO2 targets, quartz apparatus & wares, optical prisms, and optical coatings etc. As a result of high quality and reliability, our fused quartz products are widely used by customers in America, the UK, Australia, Korea, Japan, and more.
Our office is located in Beijing, China. This location enables us to provide high-quality products at a low cost to our customers. Please contact us today for more information by sales.t@zktdoptics.com
