Optical Communication Quartz Glass Plate High Precision

Place of Origin CHINA
Brand Name ZCQ
Certification ISO 9001
Model Number ZCQ-P005
Minimum Order Quantity 1
Price USD0.1 per piece
Packaging Details carton, wooden case
Delivery Time 5 wooking days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Surface Hardness ≥650HV Surface Roughness Ra≤0.2μm
Bevel ≤0.2mm×45° Parallelism ≤3′
Chamfer ≤0.2mm×45° Flatness ≤3λ
Shape Plate Surface Quality 80-50 To 10-5
High Light

optical communication quartz glass plate


quartz glass plate high precision


optical communication quartz glass sheet

Leave a Message
Product Description

Product Description:

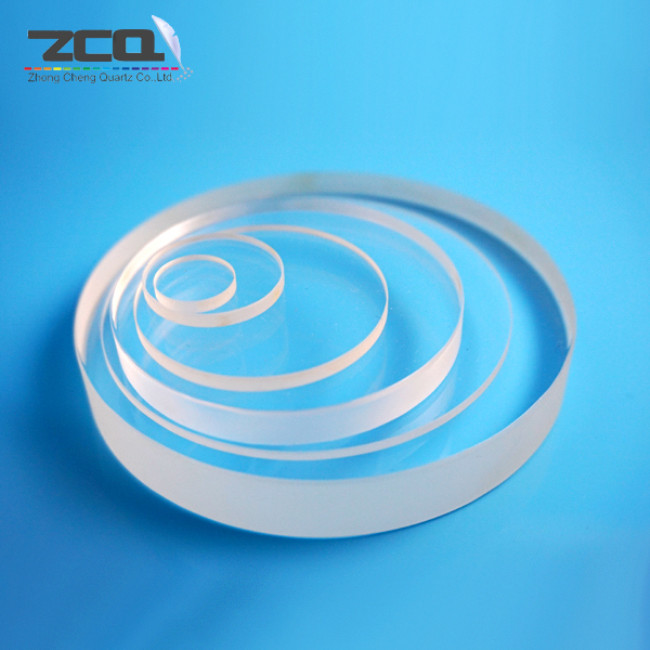

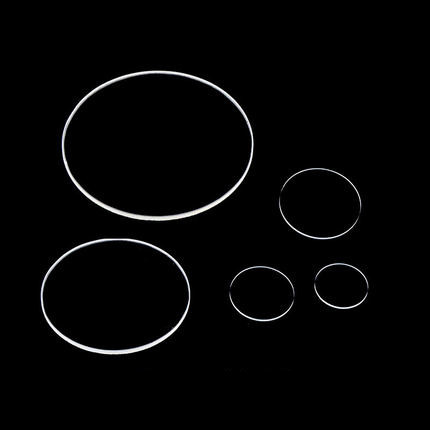

Quartz glass plate is a kind of high precision optical components with different shapes and sizes customized according to clients' requirements. It is made from high quality synthetic quartz material with high transmittance and excellent mechanical and thermal properties. It features excellent flatness, chamfer, bevel, surface hardness and clear aperture, which are all ≤3λ, ≤0.2mm×45°, ≤0.2mm×45°, ≥650HV, ≥90% respectively. It can be widely used in various industries, such as optical communication, aerospace, laser technology, medical treatment, etc. With high precision and excellent performance, quartz glass plate is the ideal choice for various applications.



  • Product Name: Quartz Glass Plate
  • High temperature resistant
  • Optical glass
  • High purity quartz
  • Surface Roughness: Ra≤0.2μm
  • Edge: Smooth
  • Size: Customized
  • Clear Aperture: ≥90%
  • Surface Quality: 80-50


ZCQ Quartz Glass Plate, with model number ZCQ-P005 and place of origin from China, offers excellent properties for a wide range of applications. It features surface hardness up to 650HV, transparent clear color, thickness ranging from 0.5mm to 30mm, clear aperture up to 90%, and surface roughness of Ra≤0.2μm. What’s more, it is also customizable in shape and size, and features excellent transmittance, heat resistance and durability. Its wide range of applications including optics, medical, lightening, laser, semiconductor and electronic industry, making it the ideal material for various applications.


Technical Parameters:

Property Value
Perpendicularity ≤3'
Chamfer ≤0.2mm×45°
Bevel ≤0.2mm×45°
Surface Quality 80-50
Flatness ≤3λ
Parallelism ≤3'
Color Transparent Clear
Surface Hardness ≥650HV
Material Quartz
Edge Smooth
High Purity Quartz Yes
High Transmittance Yes
Shape and Size Customized Yes


Customized Quartz Glass Plate

Brand Name: ZCQ
Model Number: ZCQ-P005
Place of Origin: CHINA
Surface Quality: 80-50
Perpendicularity: ≤3′
Edge: Smooth
Chamfer: ≤0.2mm×45°
Flatness: ≤3λ

Our quartz glass plate is made of high quality optical glass with high transmittance and high-precision. The surface of the plate is flat and smooth, with excellent perpendicularity, chamfer and flatness.


Support and Services:

Quartz Glass Plate Technical Support and Service

We provide technical support and service on quartz glass plates to ensure that our customers can get the most from their investment. Our experts are available to answer any questions you may have about quartz glass plates and provide advice on how to best use them.

We offer a range of services to help you get the most out of your quartz glass plates, including:

  • Troubleshooting and technical support
  • Maintenance and repair services
  • Custom fabrication services
  • Installation and training

Whether you need advice on how to use quartz glass plates or need help with a specific project, our technical support team is here to help.


Packing and Shipping:

Packaging and Shipping of Quartz Glass Plate

Quartz glass plates are extremely fragile items and must be properly packaged and shipped to ensure safe arrival.


The plates should be carefully wrapped in multiple layers of shock-absorbent bubble wrap or a combination of shock-absorbent foam and bubble wrap. The wrapped plates should then be placed in a rigid, double-walled cardboard box or a durable wooden crate. For extra protection, the box or crate should be filled with foam or bubble wrap to prevent the plates from shifting inside.


The package should be shipped via a reliable shipping service such as UPS, FedEx, or DHL. The package should be clearly labeled with the delivery address and other relevant information. The package should also be insured for the full value of the contents.



Q1: What is Quartz Glass Plate?
A1: Quartz Glass Plate is a high-temperature resistant product manufactured by ZCQ. Its model number is ZCQ-P005 and it is made in China.
Q2: What are the advantages of Quartz Glass Plate?
A2: Quartz Glass Plate has excellent chemical stability, heat resistance, and high temperature resistance. It can withstand temperatures up to 1200℃.
Q3: What are the applications of Quartz Glass Plate?
A3: Quartz Glass Plate has a wide range of applications and is widely used in chemical, semiconductor, optical, and other industries.
Q4: What is the size of Quartz Glass Plate?
A4: The size of Quartz Glass Plate is customized according to customer requirements.
Q5: What are the payment methods for Quartz Glass Plate?
A5: ZCQ accepts various payment methods, including bank transfer, PayPal, Western Union, and others.
