Optical Measuring Eccentricity Tester Instrument Digital M100 Series
| Place of Origin | CHINA |
|---|---|
| Brand Name | ZKTD |
| Certification | None |
| Model Number | ZKTD-M100 |
| Minimum Order Quantity | 1 set |
| Packaging Details | Safe packing |
| Delivery Time | 2-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Equipment Type | Optic-centration Testing Equipment | Measurement Method | Non-contact |
|---|---|---|---|
| CCD Connection | USB2.0 | Resolution | 0.1um |
| Test Accuracy | 0.5um | Test Range | <Φ200mm |
| RoC/EFL | ± 3 ~ ± 450mm | Size (cm) | 62x40x135 |
| Weight | 60Kg | Origin | China |
| High Light | optical measuring eccentricity tester,digital eccentricity tester,eccentricity tester digital |
||
Product Description

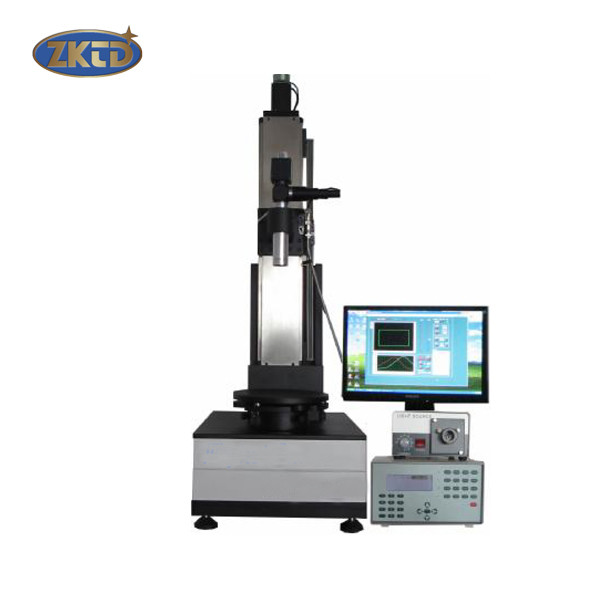

Optical Measuring Instrument Digital Eccentricity Tester M100 series
Lens module Eccentricity Tester M series is a serial high precision, non-contact optic-centration testing equipment. They are equipped with a precision air bearing, and specially designed for Multi-Lenses group or with large aperture lenses. The friendly software can directly record the data and show the testing result in required way, and make the actual measurement simply and efficiency.
They could be used for single lens inspection before module assembly, or center offset control during the lenses assembly, also the combination center deviation detection after module assembly, as well as the every curve surfaces eccentricity reveal for each component lens inside the module after assembly.
Advantages:
- Both transmission and reflection measurement, good for single lens and lens group;
- With software, could locate the Optic-center (Focus point or center of curvature) automatically, and record the position data, and display in required graph or in excel data.
- Equipped with high-precision air bearing, could directly show testing result.
- Could extend to EFL and RoC testing function(multi-functions type)
Product model and index
| Model | M100-AFMR | M100-AFM | M100-AFA | M100T-AFA |
| Product Name | Reflective lens group centering instrument | Lens group transmissive reflection deflectometer | Full-automatic lengs group deflectometer | ens group comprehensive measuring instrument |
| Measurement mode/function |
1. Lens group reflective centering assembly 2. Non destructive eccentric measurement |
1.Transmission or reflective lens group centering assembly 2. Non destructive eccentricity measurement (mutual inclination and deviation between lenses) 3. Deviation Measurement of the lens group transmission optical axis and mechanical axis |
1. Transmission or reflective lens group centering assembly 2. Non destructive eccentric measurement
3. Automatic measurement of focal lengths (including front and rear focal lengths) 4. Measurement of lens eccentricity and curvature before assembly |
|
| Device capable of detecting a complete set of optical paths | ||||
| Configure | Manual lifting and focusing, manual air floating rotary table | Automatic focusing, manual air floating rotary table | Automatic focusing, electric air floating rotary table | Automatic focusing, electric air floating rotary table, single lens eccentric rotary table |
| Measuring range |
Eccentricity: ±3~±1000mm (Extensible) Caliber range: φ3~φ200 (Extensible) |
Eccentricity: ±3~±1000mm (Extensible) Radius of curvature/focal length: ±3~±500mm Caliber range: φ3~φ200 (Extensible) |
||
| Measurement accuracy | ±0.5um (or ±3”) |
0.5umAccuracy of centering and eccentricity measurement 0.03~0.3%Focal length/curvature measurement accuracy |
||
| Maximum load | 15kg (Extensible) | |||
| Remark | It can display the eccentric position in real-time image and digital display, including analysis software that can non-destructive reproduce the mutual tilt and offset between lenses within the lens; Can simulate actual optical axis position and deviation | |||
