Vertical Spherical Interferometer Optical Measuring Instrument For Optical Lens Inspection

  • Vertical Spherical Interferometer Optical Measuring Instrument For Optical Lens Inspection
Place of Origin CHINA
Brand Name ZKTD
Certification None
Model Number ZKTD-D100
Minimum Order Quantity 1 set
Packaging Details Safe packing
Delivery Time 3-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Interference Principle Fizzy Effective Beam Diameter 4 Inches (101.6mm)
Test Wavelength LD Laser (635nm)/Imported HeNe Laser (632.8nm) Optical Path Switching Align/test Electronic Control Switching, Response Frequency 0.5S
System Detection Stroke 950mm/1250mm Instrument Size 310*460*1872mm (length, Width And Height)
Instrument Weight About 98KG Working Power AC100-240V/1.8A/50-60Hz
Image Parsing Imported 1/2 Inch HD Camera HD LCD Monitor 15 Inches
High Light

interferometer optical measuring instrument

,

lens inspection optical measuring instrument
Leave a Message
Product Description

Optical Measuring Instrument Vertical Spherical Interferometer For Optical Lens Inspection



Product Specification

Product Model

 D100 Vertical Laser Interferometer

Interference Principle Fizzy




Effective Beam Diameter 4 inches (101.6mm)




Test Wavelength LD Laser (635nm)/Imported HeNe Laser (632.8nm)




Optical Path Switching Align/test electronic control switching, response frequency 0.5S




System Detection Stroke 950mm/1250mm




Standard Spherical Lens Accuracy λ/15 and λ/20(@632.8nm)




Standard Spherical Lens Specifications F0.65/0.75/1.0/1.5/2.2/3.3/5.0/7.1/10.7/15/15D, etc. F number specifications can be customized




Standard Flat Lens Accuracy λ/20(@632.8nm)




Instrument Size 310*460*1872mm (length, width and height)




Instrument Weight About 98KG




Working Power AC100-240V/1.8A/50-60Hz




Image Parsing

Imported 1/2 inch HD camera




HD LCD Monitor 15 inche

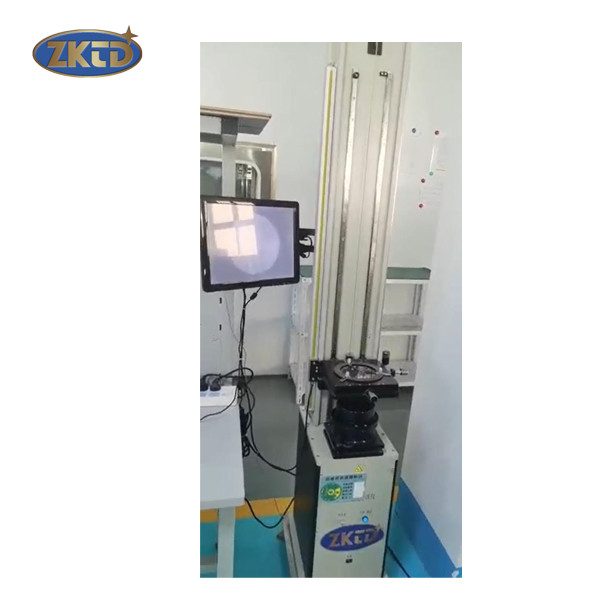

Vertical Spherical Interferometer Optical Measuring Instrument For Optical Lens Inspection 0
