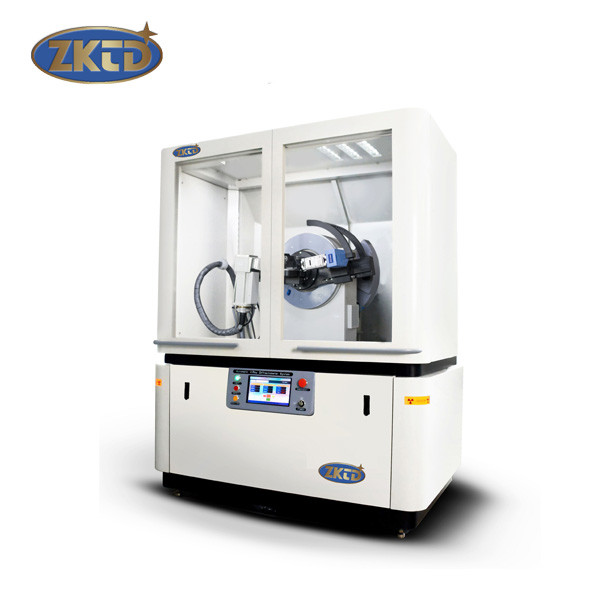

Optical Measuring Xrd Machine For Study Crystalline Composition And Atomic Structure

  • Optical Measuring Xrd Machine For Study Crystalline Composition And Atomic Structure
Place of Origin CHINA
Brand Name ZKTD
Certification None
Model Number ZKTD-XR48A
Minimum Order Quantity 1 set
Packaging Details Safe packing
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Optical Analytical Instruments Analysis Material The Composition And Atomic Structure Of Crystalline Materials
Maximum Output Power Kw High Frequency High Voltage Generator Scanning Range -35°~160°
Scan Speed 0.0012°~120°/min Positioning Speed 1500°/min
Measurement Accuracy ≦0.001° Dimensions 1300mmx1000mmx1800mm
High Light

optical measuring xrd machine

,

crystalline xrd machine
Leave a Message
Product Description



Optical Measuring Instrument X-ray Diffractometer for study the composition and atomic structure of crystalline material

X-ray diffractometers are analytical instruments that study and characterize the composition and atomic structure of crystalline materials and materials. The X-ray diffractometer introduces the mature and stable programmable controller technology in industrial process control into the product design concept, making the x-ray powder diffractometer with high precision and high accuracy. The product is with good mechanical stability durability, easy upgrade, easy operation and intelligent features, it can flexibly adapt to test analysis and research in various industries.

  • PLC(programmable logic control) for stability and reliability.
  • Modular design,wide range of accessories.
  • SC or PC detector
  • High frequency and high voltage x-ray power technology for stability and reliability(optional)
  • High stability x-ray generator
  • High-precision multi-function goniometer
  • Vertical (θs-θd) patented technology goniometer

Main Technical Specification and Features

X-ray tube Target: Cu,Fe,Co,Cr,Mo,W (Metal or Ceramic optional )
Focus size: 1*10mm2 or 0.4*14mm2
Rated power:2.4kw or 2.7 kw
X-ray generator (PLC Control) Maximum output power: 4kw high frequency high voltage generator
X-ray tube voltage:10~60kv, 0.1kv/step
X -ray tube current: 5~80mA, 0.1mA/step
Output stability ≦0.05% (mains fluctuation ±10%)
Goniometer

Goniometer structure: vertical goniometer θs-θd (sample fixed)

scanning radius: Standard 225mm (185- 300mm continuously adjustable
Scanning range: -35°~160°
Scan speed: 0.0012°~120°/min
Positioning speed: 1500°/min
Drive mode: θs-θd linkage, θs or θd single
Scan mode: Stepping, continuous, segmentation, transmission scanning
Minimum step angle: 0.0001°
measurement accuracy: ≦0.001°
20 angle repeatability: 0.0001°
Record control unit (detector) Detector Type: SDD or SC
Maximum linear count rate: 1X107cps,( noise≤0.2cps)
Energy resolution: SC ≤50%,PC ≤2
Working mode: PLC automatic control differential, integral mode conversion
PLC automatically performs PHA dead time correction
Detector high voltage 0~2200VDC continuously adjustable
Voltage stability: 0.005%
Safety protection alarm type KV and mA are too high or too low, overload protection, no water alarm, X-ray tube over-temperature and other multiple protection, to prevent radiation leakage, protective door interlock protection and platform lead shielding protection.
X-ray leakage stability Dimensions (main body ≦0.1 µSv/h (maximum power of X-ray tube, without subtracting the background)
≦0.3% (40kV, 40mA, continuous operation for 8 hours)
1300mmx1000mmx1800mm (length * width* height)
