Electronic Digital Radius Gauge Optical Measuring Instrument R50
| Place of Origin | CHINA |
|---|---|
| Brand Name | ZKTD |
| Certification | None |
| Model Number | R50 |
| Minimum Order Quantity | 1 set |
| Packaging Details | Safe packing |
| Delivery Time | 2-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Range | 0-50.8mm | Accuracy | 30μm |
|---|---|---|---|
| Resolution（mm/in） | 0.005/0.0005” | Radius Accuracy | <1% |
| Display Range | Length Displacement 0-50mm | Radius Range | 450-2500mm |
| Displacement Measurement Error | △S≦0.02mm | Radius Measurement Error | △R≦(0.02/2)R |
| Power Supply | 3V The Button Battery（CR2032） | Working Temperature | 0±40℃ |
| High Light | optical measuring digital radius gauge,electronic digital radius gauge,optical measuring electronic radius gauge |
||
Product Description
Optical Measuring Instrument Electronic Digital Radius Gauge R50
Product Features
1. It can be used in places with arc measurement, such as mechanical parts, wood formwork, building steel formwork, etc;
2. It can measure the radius of circular arc surface of any specification. It is easy to operate and fast to read. It has the characteristics of small volume, convenient reading and hand-held measurement;
3. The small radius gauge is designed with multiple sets of measuring claws, and the measuring claws of different spans are selected for different radius and measuring accuracy of the circular arc surface;
4. It has multiple purposes: high-precision digital dial indicator function (remove the measuring claw);
5. Multiple measurements: radius measurement of outer circle and inner arc surface, depth measurement and step measurement;
6. Three modes of inner diameter/outer diameter/high precision percentage switching;
7. Small radius 10/20/30/60/100 five sets of measuring claw specification conversion;

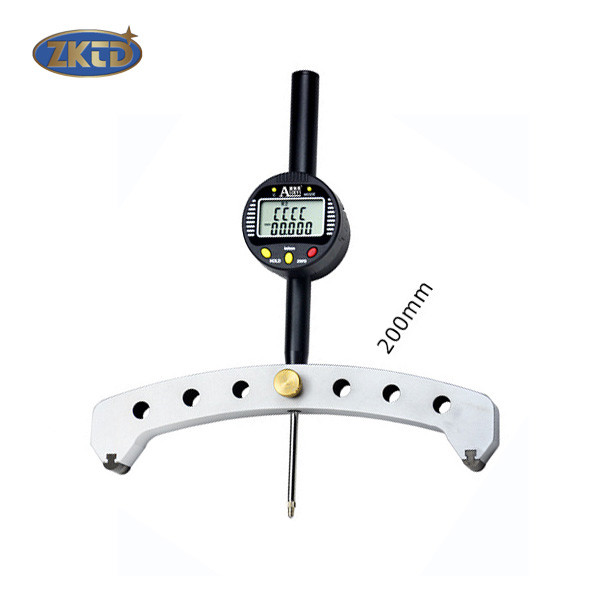

8. Large radius gauge measuring claw span 200mm: outer diameter and inner diameter measuring range 450mm~2500mm
9. It has the functions of data retention, data output interface, metric-inch interconversion, reset and automatic/manual shutdown;
10. The maximum measuring speed is greater than 1.5m/s;
11. Aviation aluminum alloy body, glass capacitive grid sensor, large capacity 3V lithium battery.
Specification
With data output port, data can be imported into the computer, easy to operate.
