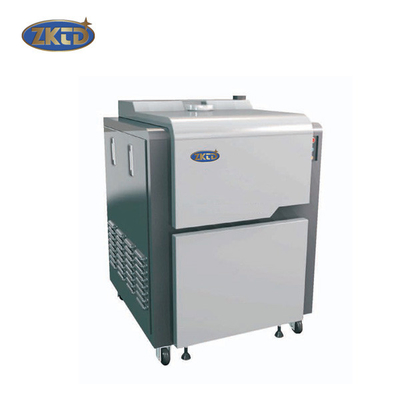

Wavelength Dispersive X-Ray Fluorescence Spectrometer Optical Measuring Instrument

Place of Origin CHINA
Brand Name ZKTD
Certification None
Model Number ZKTD-XFS104
Minimum Order Quantity 1 set
Packaging Details Safe packing
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Measurable Elements 10 Arbitrary Elements From Na To U Analysis Algorithms Empirical Coefficient Algorithm And Theoretical A -coefficient Algorithm
AC220V Power Supply 1KVA AC Purified Stabilized Voltage Power Supply High Voltage Supply 200W (50KV4mA)
12-hour Stability Of Tube Voltage & Tube Current Less Than 0.05 % Vacuum Pump Bi-phase -220V, 2 Liters
Industrial Computer Industrial 104 Computer Analysis Accuracy σn-1(24 Hours, Percent Content)≤0.05 %
High Light

wavelength dispersive x ray fluorescence spectrometer


optical measuring x ray fluorescence spectrometer


wavelength dispersive xrf spectrometer

Leave a Message
Product Description


Optical Measuring Instrument Wavelength Dispersive X-ray Fluorescence Spectrometer


ZKTD-XFS104 Compact Multi-channel X-ray Fluorescence Spectrometer, with configuration of 10 fixed channels and capability to analyze 10 elements simultaneously, is able to conduct elemental analysis of arbitrary ten elements from Na to U based on the users' requirements. It is widely used in coal, petroleum, kaolin, glass,cement, steel, powder metallurgy, refractory materials and environment protection, and accordingly an ideal choice for quality control in large and middle scaled enterprises.


Application Fields:

  • Building materials (cement, glass, ceramics)
  • Metallurgy (steel, non-ferrous metals)
  • Petroleum (trace elements S, Pb and so on)
  • Chemical Engineering
  • Geography and Mining
  • Commodity Inspection
  • Quality Inspection
  • Human Body Trace Elements Inspection


3. Product Features

Rapid and non-destructive analysis of powder and bulk samples.

Multi-channel high speed MCA offers timely measurement of every element peak, benefiting not only instrument debugging and failure diagnosis but also the enhancement of stability of the instrument.

Compared with sequential scan large power spectrometers, the instrument gains adequate analysis precision even when lower power and equal measurement time are adopted, which not only endows the instrument with high cost performance, but also prevents wearing of the goniometer, prolongs the service life of X-ray tube, minimizes failures of the high voltage power supply and reduces the maintenance cost of the whole instrument.
