Optical Manufacturing 5mm Edge Profiling Machine / Equipment

Place of Origin China
Brand Name ZKTD
Certification None
Model Number ZKTD-MG80
Minimum Order Quantity 1 Set
Packaging Details Standard export packing
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter Machining Range Φ5~Φ80mm Spindle Speed 0~3700 RPM
Workpiece Speed 0~19 RPM Processing Cycle 18~40 S
Left And Right Movement Distance Of Axis 40mm Spindle Runout (radial / Axial) ≦0.006mm
Workpiece Shaft Runout (radial / Axial) ≦0.006mm Total Power 2KW
Overall Dimension(L*W*H) 1120x620x1600mm Total Weight About 260kg
High Light

5mm edge profiling machine

,

optical manufacturing edge profiling machine

,

edge profiling optical manufacturing equipment

Leave a Message
Product Description

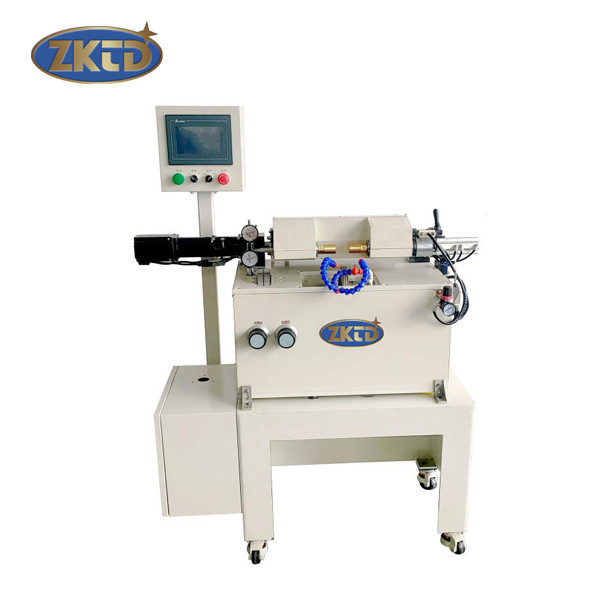

Glass Edge Profiling Machine

This machine is suitable for the peripheral processing of circular and special-shaped lenses with medium and small planes to meet the requirements of size and appearance.

1) The clamping mode is pneumatic clamping, and the pressure is adjustable;

2) The left and right movement is driven by servo motor, and the chamfer is accurate;

3) The rotating speed of the workpiece is driven by the stepping motor, and the grinding is uniform

4) The processing process can be carried out automatically after the time set by the program;

5) The equipment is equipped with double grinding wheels, which can complete rough and fine machining at one time;

6) The outer diameter of circular lens is controlled by fine-tuning profiling, and the accuracy is stable;

7) The profiled lens adopts profiling and 1:1 direct grinding,

8) The headstock is lifted and lowered automatically under the action of air cylinder, which is convenient for clamping;

9) Stainless steel water pump has mixing function, and the grinding liquid does not precipitate;

10) The headstock and base of the main engine are formed by casting, with reasonable structural design, precision, stability and high efficiency;



System composition: (residual current protection device must be included to meet Party A's requirements on safety and environment.)

1) The spindle motor is controlled by frequency converter, with wide speed regulation range and convenient and fast process parameter setting;

2) The workpiece rotation is controlled by stepping motor + planetary reducer,

3) The workpiece translation and chamfering are controlled by servo motor + planetary reducer,

4) The speed of spindle and workpiece can be adjusted by frequency conversion and pulse respectively, which can be set separately;

5) The workpiece is vacuum adsorbed and pneumatically clamped;

6) During the conversion of loading and unloading and rough and fine grinding, the headstock is lifted and lowered automatically by the cylinder;

7) Processing times can be recorded;

8) Install fixed protective covers at all transmission parts;

9) Install safety switch and safety lock on each box cover;



List of main accessories and maintenance parts

See Technical Specification of the Equipment
