2.4kw Xray Diffractometer Analysis Composition Atomic Structure Crystalline Material

Place of Origin China
Brand Name ZKTD
Certification ISO
Model Number ZKTD-XR48A
Minimum Order Quantity 1 set
Packaging Details Export Wooden Cases
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Target Cu、Fe、Co、Cr、Mo、W (Metal Or Ceramic Optional ) Focus Size 1*10mm2 Or 0.4*14mm2
Rated Power 2.4kw Or 2.7 Kw Maximum Output Power 4kw High Frequency High Voltage Generator
X-ray Tube Voltage 10~60kv, 0.1kv/step X -ray Tube Current 5~80mA, 0.1mA/step
Output Stability ≦0.05% (mains Fluctuation ±10%) Scanning Range -35°~160°
Scan Speed 0.0012°~120°/min Dimensions 1300mmx1000mmx1800mm (length * Width* Height)
High Light

crystalline material xray diffractometer


2.4kw xray diffractometer


crystalline material xrd diffractometer

Leave a Message
Product Description

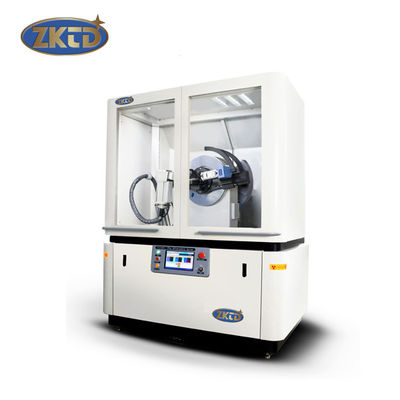

X-Ray Diffractometer for Analysis the Composition And Atomic Structure of Crystalline Material


X-ray diffractometers are analytical instruments that study and characterize the composition and atomic structure of crystalline materials and materials. The X-ray diffractometer introduces the mature and stable programmable controller technology in industrial process control into the product design concept, making the x-ray powder diffractometer with high precision and high accuracy. The product is with good mechanical stability durability, easy upgrade, easy operation and intelligent features, it can flexibly adapt to test analysis and research in various industries.

  • PLC(programmable logic control) for stability and reliability.
  • Modular design,wide range of accessories.
  • SC or PC detector
  • High frequency and high voltage x-ray power technology for stability and reliability(optional)
  • High stability x-ray generator
  • High-precision multi-function goniometer
  • Vertical (θs-θd) patented technology goniometer

 2.4kw Xray Diffractometer Analysis Composition Atomic Structure Crystalline Material 0


We mainly supply Optical Glass and Crystal Processing Equipment, Analysis and Inspection Equipment, Mobile Phone Cover Glass Making Machine, and Japan Second-Hand Optical Processing Equipment. Equipment includes double sided lapping grinding and polishing machine, inner circle cutting optical manufacturing equipment, double head glass engraving machine for making mobile phone cover, plane and spherical surface milling grinding machine, profiling edging machine, multi wire cutting equipment etc.


If you are interested in any type of optical manufacturing equipment, please feel free to contact us.
