Swing Arm Optical Machine Grinding And Polishing

Place of Origin CHINA
Brand Name ZKTD
Certification NONE
Model Number ZKTD-LP4
Minimum Order Quantity 1 set
Packaging Details Standard Export Packing
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Curvature Processing Range R1~R20 Diameter Machining Range (MAX) Φ30mm
Quasi Spherical Center Height 70mm Number Of Spindles 6
Spindle Connecting Thread M16X1 Spindle Positioning Inner Hole Φ18(0~+0.02)mm
Spindle Speed 450~3000 RPM Heater Power 1KW (Polishing)
High Light

swing arm optical machine


grinding and polishing optical machine

Leave a Message
Product Description

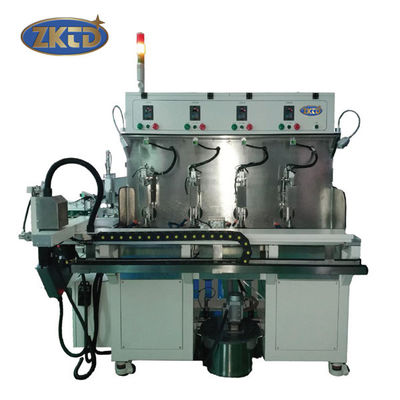

Swing Arm Grinding and Polishing Machine

The equipment is an upper shaft swing ball core fine grinding and polishing machine, which meets the requirements of size and appearance.

1) The machine is suitable for small diameter and curvature lens. The upper shaft design is light, especially suitable for the fine grinding and polishing of concave lens;

2) The working pressure is spring pressure, and the pressure is adjustable;

3) The tilting angle of the pendulum shaft can be adjusted arbitrarily under the control of the servo motor, which is convenient to install and match the manipulator;

4) The spindle speed can be adjusted steplessly, and the speed range is large;

5) The processing process can be carried out automatically after the time set by the program;

6) The welded base of the whole machine has the characteristics of reasonable structural design, precision, stability and high efficiency;

7) Stainless steel platen is waterproof, easy to clean.


System composition: (residual current protection device must be included to meet Party A's requirements on safety and environment.)

1) The speed regulating motor is controlled by the speed regulating box, with wide speed regulating range and convenient and fast process parameter setting;

2) The swing shaft is controlled by a servo motor and can stay anywhere between 0-60 degrees;

3) Each axis can work independently without being affected by clamping and suspension;

4) The speed of main shaft and pendulum shaft can be stepless speed regulation and pulse speed regulation respectively, which can be set separately;

5) Processing times can be recorded;

6) Install fixed protective covers at all transmission parts;

7) Install safety switch and safety lock on each box cover;


List of main accessories and maintenance parts

See Technical Specification of the Equipment

Swing Arm Optical Machine Grinding And Polishing 0
