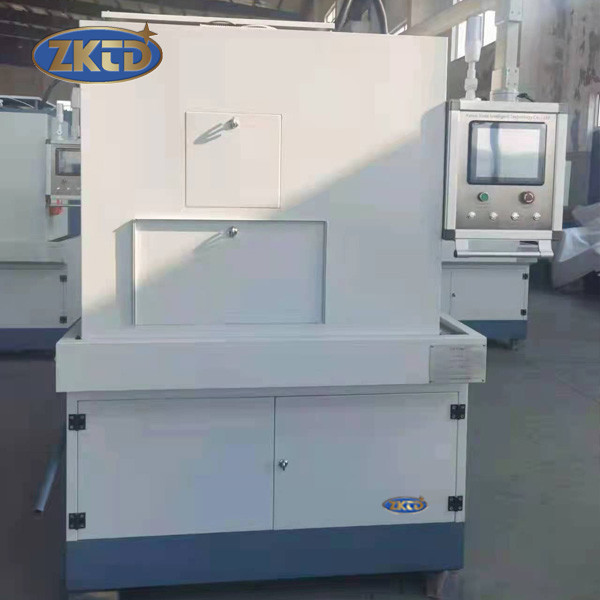

450mm Servo Multi Wire Cutting Machine With Touch Screen
| Place of Origin | CHINA |
|---|---|
| Brand Name | ZKTD |
| Certification | NONE |
| Model Number | ZKTD-MWM450 |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Export Packing |
| Delivery Time | 2-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Spindle Power | 15kw | Power Of Winding In And Setting Out Motor | 4.4kw |
|---|---|---|---|
| Power Of Tension Motor | 1.8kw | Touch Screen | 10 Inches |
| Control System | Huichuan Motion Control | Linear Speed | 10-1000m Adjustable |
| Feed Speed | 0.01-99.99 Adjustable | Weight Of Equipment | 2 Metric Ton |
| High Light | servo multi wire cutting machine,450mm multi wire cutting machine,touch screen multi wire cutting machine |
||
Product Description
450mm Servo Muti-wire Cutting Machine
Overall Dimension of Equipment
Transverse (width) 13600mm, Longitudinal (length) 2160mm, 1960mm high.
Overall dimensions of refrigeration system
Transverse (width) 1000mm, Longitudinal (length) 1060mm, 730mm high.
Weight of Equipment
2 metric ton (Deviation due to different models)
Mechanical Technical Data
1; Table stroke 450mm (customizable)
2; The size of the material plate is 450x450 (this size is a conventional model, and other sizes can be customized in advance)
4; Verticality of lifting body 0.01mm
5; Independent nodular cast iron tripod (4-angle frame, 5-angle frame, U-shaped frame, different due to different machinery)
6; Roller diameter 135-170mm (double taper roller)
7; Roller length 450mm (customizable)
Other configurations:
See product’s Technical Specification
