380mm Multi Wire Saw Machine Optical Manufacturing

Place of Origin CHINA
Brand Name ZKTD
Certification NONE
Model Number ZKTD-MWM380
Minimum Order Quantity 1 set
Packaging Details Standard Export Packing
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month
Product Details
Host 1 Set Refrigeration System 1 Set
Roller 1 Vice Take Up And Take Off Rollers Two Pieces Of Each
Operating Pedal 1 Piece Oil Pan 1 Piece
Special Tools 1 Set Material Plate 5 Pieces
High Light

380mm multi wire saw machine

,

optical manufacturing multi wire saw machine

,

380mm multi wire cutting machine

Leave a Message
Product Description

380mm Servo Muti-wire Cutting Machine



Overall Dimension of Equipment

Transverse (width) 13600mm, Longitudinal (length) 2160mm, 1960mm high.

Overall dimensions of refrigeration system

Transverse (width) 1000mm, Longitudinal (length) 1060mm, 730mm high.

Weight of Equipment

1.8 metric ton (Deviation due to different models)



Mechanical Technical Data

1; Table stroke 300mm (customizable)

2; The size of the material plate is 300x380 (this size is a conventional model, and other sizes can be customized in advance)

4; Verticality of lifting body 0.01mm

5; Independent nodular cast iron tripod (4-angle frame, 5-angle frame, U-shaped frame, different due to different machinery)

6; Roller diameter 135-170mm (double taper roller)

7; Roller length 380mm (customizable)



Other configurations:

See product’s Technical Specification

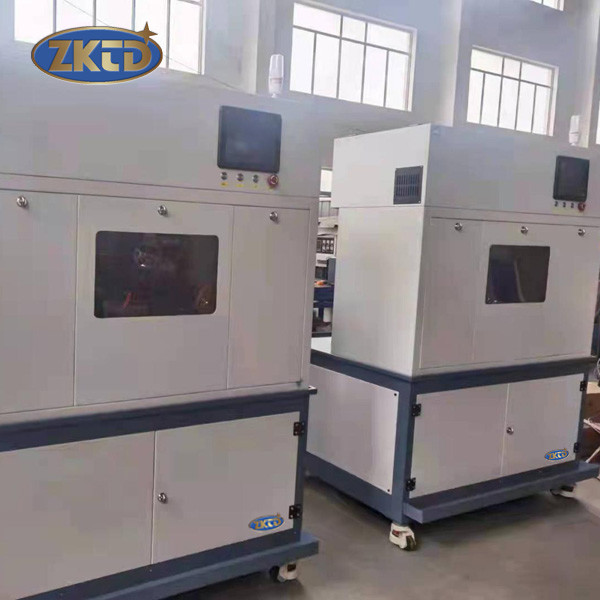

380mm Multi Wire Saw Machine Optical Manufacturing 0



380mm Multi Wire Saw Machine Optical Manufacturing 1



380mm Multi Wire Saw Machine Optical Manufacturing 2



380mm Multi Wire Saw Machine Optical Manufacturing 3



We mainly supply Optical Glass and Crystal Processing Equipment, Mobile Phone Cover Glass Making Machine, and Japan Second-Hand Optical Processing Equipment. Equipment includes double sided lapping grinding and polishing machine, inner circle cutting optical manufacturing equipment, double head glass engraving machine for making mobile phone cover, mobile screen printing machine, plane and spherical surface milling grinding machine, profiling edging machine, multi wire cutting equipment etc.



If you are interested in any type of optical manufacturing equipment, please feel free to contact us.
