16b-5l Gear Boxes Double Sided Grinder Equipment Optical Manufacturing

Place of Origin CHINA
Brand Name ZKTD
Certification NONE
Model Number ZKTD-16B-5L
Minimum Order Quantity 1 set
Packaging Details Export packing
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Dimenion Of Upper Grinding Discs Ø1149* Ø371*65mm Dimension Of Lower Grinding Discs Ø1149* Ø371*60mm
Number Of Planet Wheel 5 Number Of Correction Wheels 4 Pieces (one Set For 4 Machines), Electroplated Or Pill
Maximum Diameter Of Planet Wheel (mm) Ø425.72mm Minimum Grinding / Polishing Thickness (mm) 0.3
Maximum Grinding / Polishing Thickness (mm) 40 Stroke Of Lifting Cylinder Of Upper Grinding Disc (mm) ≥400
High Light

optical manufacturing double sided grinder


gear boxes double sided grinder


optical manufacturing double side grinding machine

Leave a Message
Product Description

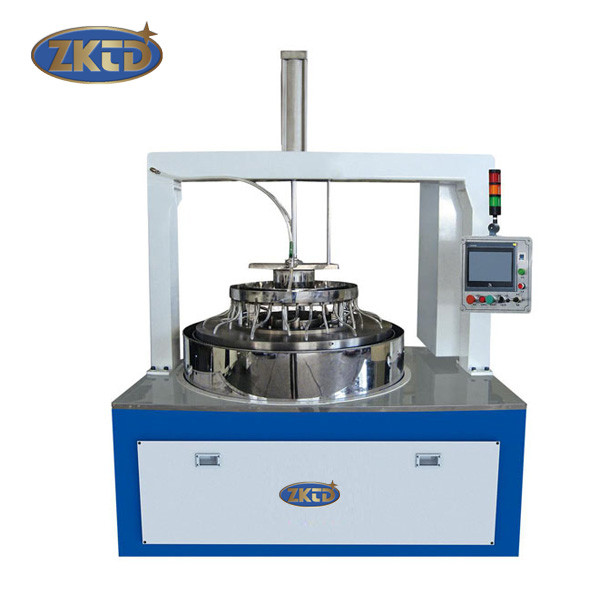

16B-5L Optical Manufacturing Equipment Double Sided Grinder

The equipment is mainly used for precision plane rough grinding and polishing of sapphire, ceramics, optical glass, window glass and other electronic and optical materials; at the same time, it is suitable for precision plane rough grinding and polishing of parts made of ultra-thin and brittle materials.

16b-5l Gear Boxes Double Sided Grinder Equipment Optical Manufacturing 0



1) The three gear boxes and transmission systems adopt patented design, with higher transmission efficiency, good lubrication and cooling effect and long service life. Non human factors, lifetime warranty;

2) The upper grinding plate is hollow and can be connected with circulating cooling water to ensure constant and optimal temperature during grinding and polishing and give full play to the best effect of grinding and chemical polishing, reduce crystallization, improve yield and reduce the use of consumables;

3) The whole machine has reasonable structure, good stability and sufficient rigidity;

4) Three motor input (adjust speed by variable frequency motor with frequency converter speed), wide speed regulation range and many process parameter settings;

5) Gear reducer direct connection structure is adopted, which is efficient and energy-saving;

6) Key bearings and electrical appliances are imported with original packaging;

7) The whole machine has the characteristics of precision, stability and high efficiency;

8) Proportional valve, man-machine interface, frequency conversion and PLC communication build a strong humanized control system to realize real-time constant pressure setting and control, fully digital setting;

9) The sun wheel can be controlled independently to realize free speed change and direction change;

10) Freely choose the working mode of timing or lap counting;

11) The system has perfect self diagnosis and alarm prompt functions;

12) Good man-machine engineering coordination and convenient man-machine operation.


We mainly supply Optical Glass and Crystal Processing Equipment, Mobile Phone Cover Glass Making Machine, and Japan Second-Hand Optical Processing Equipment. Equipment includes double sided lapping grinding and polishing machine, inner circle cutting optical manufacturing equipment, double head glass engraving machine for making mobile phone cover, plane and spherical surface milling grinding machine, profiling edging machine, multi wire cutting equipment etc.


If you are interested in any type of optical manufacturing equipment, please feel free to contact us.
