Vibrating Disc Optical Manufacturing Equipment Automatic Mill Grinding Machine

  • Vibrating Disc Optical Manufacturing Equipment Automatic Mill Grinding Machine
Place of Origin CHINA
Brand Name ZKTD
Certification NONE
Model Number ZKTD-MG20(A)-Z
Minimum Order Quantity 1 SET
Packaging Details EXPORT PACKING STANDARD
Delivery Time 2-4 WEEKS
Payment Terms T/T
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Curvature Processing Range R2~Plane Diameter Machining Range Φ4~Φ20mm
Spindle Adjustment Angle 0～45° Spindle Speed 8000/10000 Rpm
Workpiece Speed 0～35 Cpm (Infinitely Variable Speeds) Chamfer Shaft Speed 5000rpm
Spindle Installation Φ24/M20X1.5 Total Power 1.5KW
Overall Dimension(L*W*H) 1300x850x1600mm Total Weight 700kg
High Light

vibrating disc optical manufacturing equipment

,

auto mill grinding optical manufacturing equipment
Leave a Message
Product Description

Vibrating Disc Automatic Mill Grinding Machine

The machine is suitable for spherical milling of small and medium-sized optical glass to meet the requirements of size and appearance.

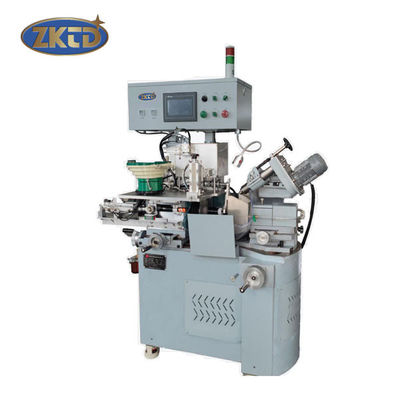

Vibrating Disc Optical Manufacturing Equipment Automatic Mill Grinding Machine 0

1) Equipped with automatic feeding vibrating plate to replace manual feeding and reduce manual labor intensity;

2) The micrometer equipped with data transmission can automatically identify the difference between the two sides of the lens and automatically turn the glass to meet the demand;

3) Configure vacuum detection to monitor the vacuum degree of glass adsorption in real time to avoid empty pieces;

4) The pressure and damping can be adjusted to avoid glass processing and crushing;

5) 7 "touch screen is configured, and all parameters and buttons can be set, checked and troubleshooting through the screen;

6) The cast iron base of the whole machine, the matching surface is scraped and formed, the structural design is reasonable, and has the characteristics of precision, stability and high efficiency;

7) The appearance of the whole machine is neat and beautiful.



System composition: (residual current protection device must be included to meet Party A's requirements on safety and environment.)

1) The vibrating disk is used as the workpiece carrier to stack a large amount of workpieces;

2) Complete the functions of reclaiming, transportation, centering and clamping through a variety of cylinder combinations;

3) External common buttons for easy adjustment;

4) Touch screen live 3D picture, the buttons are intuitive and clear, not prone to mis-operation;

5) Convenient parameter setting and intuitive fault detection;

6) Install fixed protective covers at all transmission parts;

7) Install safety switch and safety lock on each box cover;



Main Technical Specification

Sr. Description Value Remark
1 Curvature processing range R2~Plane
2 Diameter machining range Φ4~Φ20mm
3 Spindle adjustment angle 0～45°
4 Spindle speed 8000/10000 rpm
5 Workpiece speed 0～35 cpm (Infinitely Variable Speeds)
6 Chamfer shaft speed 5000rpm Chamfered (optional)
7 Spindle installation Φ24/M20X1.5
8 Total power 1.5KW 1.8KW (Chamfered)
9 Overall dimension(L*W*H) 1300x850x1600mm
10 Total Weight 700kg 750kg (Chamfered)



List of main accessories and maintenance parts

See Technical Specification of the Equipment



We mainly supply Optical Glass and Crystal Processing Equipment, Mobile Phone Cover Glass Making Machine, and Japan Second-Hand Optical Processing Equipment. Equipment includes double sided lapping grinding and polishing machine, inner circle cutting optical manufacturing equipment, double head glass engraving machine for making mobile phone cover, mobile screen printing machine, plane and spherical surface milling grinding machine, profiling edging machine, multi wire cutting equipment etc.



If you are interested in any type of optical manufacturing equipment, please feel free to contact us.
