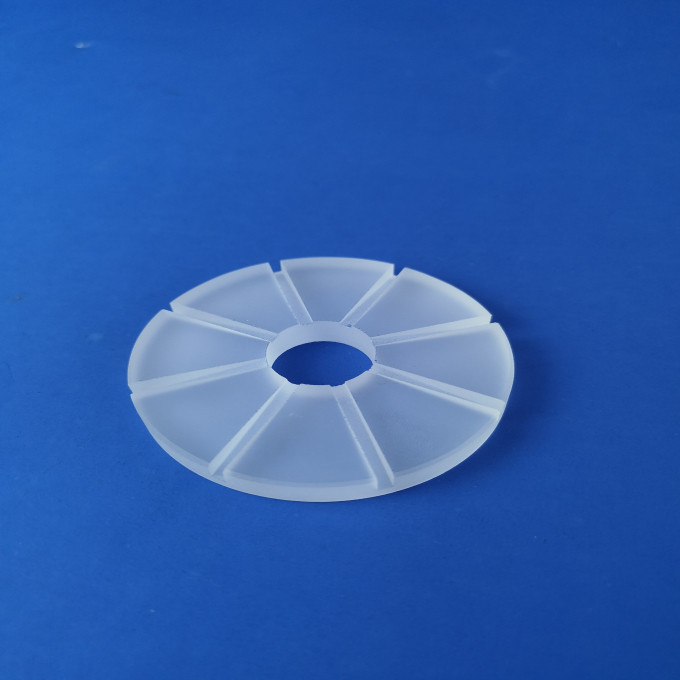

Slotting Fused Quartz Glass Plate Customized Fused Silica Plate

  • Slotting Fused Quartz Glass Plate Customized Fused Silica Plate
  • Slotting Fused Quartz Glass Plate Customized Fused Silica Plate
Place of Origin China
Brand Name ZCQ
Certification SGS
Model Number ZCQ
Minimum Order Quantity 1PC
Price USD 1-200/PC
Packaging Details Bubble pad, sponge, carton, wooden box
Delivery Time 5-10work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20pcs/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Slotting Customization Of Fused Silica Glass Plate Material Quartz Glass
Density 2.2g/cm3 Compressive Strength 1100Mpa
Young's Modulus 72000Mpa Modulus Of Rigidity 31000Mpa
Mohs Hardness 5.5~6.5 Short-term Use Temperature 1300ºC
Long-term Use Temperature 1100ºC MOQ 1
High Light

Slotting Quartz Glass Plate

,

Fused Quartz Glass Plate

,

Customized Fused Silica Plate
Leave a Message
Product Description

Slotting Customization Of Fused Silica Glass Plate



Fused quartz plates may be customized with holes, slots, angles and many other machining techniques.
Fused quartz plates can be produced in any size up.

Fused quartz plates can be supplied with various surface finishes
Ground and Polished
Blanchard Ground
Fine Lapped Ground
Sand Blasted

Custom sizes and tolerances are of course, quoted upon request. Custom is what we do.



 Parameter

Standard Grade

Precision Grade

Ultra-precision Grade
Dimensional Tolerance +/-0.2 +/-0.1 +/-0.05
Clear Aperture >80% to >90% >80% to >90% >80% to >90%
Surface Quality 80/50 60/40 40/20
Parallelism 3 arc min 1 arc min 30 arc seconds
Wavefront Distortion 5λper 25mm 1λper 25mm λ/4
Protective Bevel <0.25x45 deg <0.25x45 deg <0.25x45 deg
Material

Synthetic fused Silica, Fused quartz, IR quartz, Borosilicate glass,Sapphire crystal, K9, B270, etc.
Shape

Circular, square, triangular, oval, and other shaped windows
Dimension

Large window, Ultra-thin window, Regular size window
Precision

Ordinary refractory window, High precision optical window
Coating

High anti-UV Film, antireflective film, gold, aluminum, silver series quartz

glass, quartz UV filter, curved reflector and so on.



Special properties of Quartz Glass:

Extreme wide spectral transmission range from deep UV to middle IR (wider than all other glasses).
Extreme high optical transmission and low optical absorption.
Low variation and disturbance of the refractive index in one solid piece and optical homogeneity from one melt to the next (reproducibility).
High resistance to high intensity laser radiation, which also applies to the UV spectral range (e.g. excimer laser).
High application temperature 1200 degrees C— almost four times higher than ordinary glass.
Low thermal expansion coefficient resulting in an extremely high temperature shock resistance allowing rapid heating & cooling.



Slotting Fused Quartz Glass Plate Customized Fused Silica Plate 0

Slotting Fused Quartz Glass Plate Customized Fused Silica Plate 1

Slotting Fused Quartz Glass Plate Customized Fused Silica Plate 2

Slotting Fused Quartz Glass Plate Customized Fused Silica Plate 3

Rich experience in quartz glass industry

We have more than 25 years industry experience in quartz glass processing. We specialize in quartz glass capillary tubes and rods, quartz glass substrates, CNC machined quartz, and quartz instruments etc. According to product application, we have good grasp of material properties and adapt the proper material into product application.



Strong technical force in processing and application

Beijing Zhong Cheng Quartz Glass Co., Ltd(ZCQ) is a high-tech manufacturer specializing in the production and customization of quartz glass products and optical glass products. We has excellent technical strength, strong innovation ability and stable product quality. Our processing method is rich, drawing of glass, cold and thermal processing, micro size machining, high precision and difficulty process, combination of multiple processing methods, which guarantee that our product is excellent in all aspects.



Integrity and Quality Assurance

We are well known in quartz glass industry. Quality is the lifeline of enterprise survival and development. Integrity is the source of enterprise reputation, the foundation of standing and the foundation of development. Through unremitting efforts and continuous improvement, we have created a good manufacturing platform of optical glass for customers.

Slotting Fused Quartz Glass Plate Customized Fused Silica Plate 4
