High Purity High Temperature Quartz Protection Tube Corrosion Resistant
| Place of Origin | CHINA |
|---|---|
| Brand Name | ZKTD |
| Certification | SGS ISO |
| Model Number | quartz protection tube |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Product Details
| Material | High-purity Fused Quartz | Outer Diameter | Φ66mm |
|---|---|---|---|
| Inner Diameter | Φ38mm | Total Length | 435mm |
| Temperature Range | Up To 1100℃ (1200℃ Short-term) | ||
| Highlight | High Purity Quartz Protection Tube,High Temperature Quartz Protection Tube,Corrosion Resistant Quartz Protection Tube |
||
Product Description

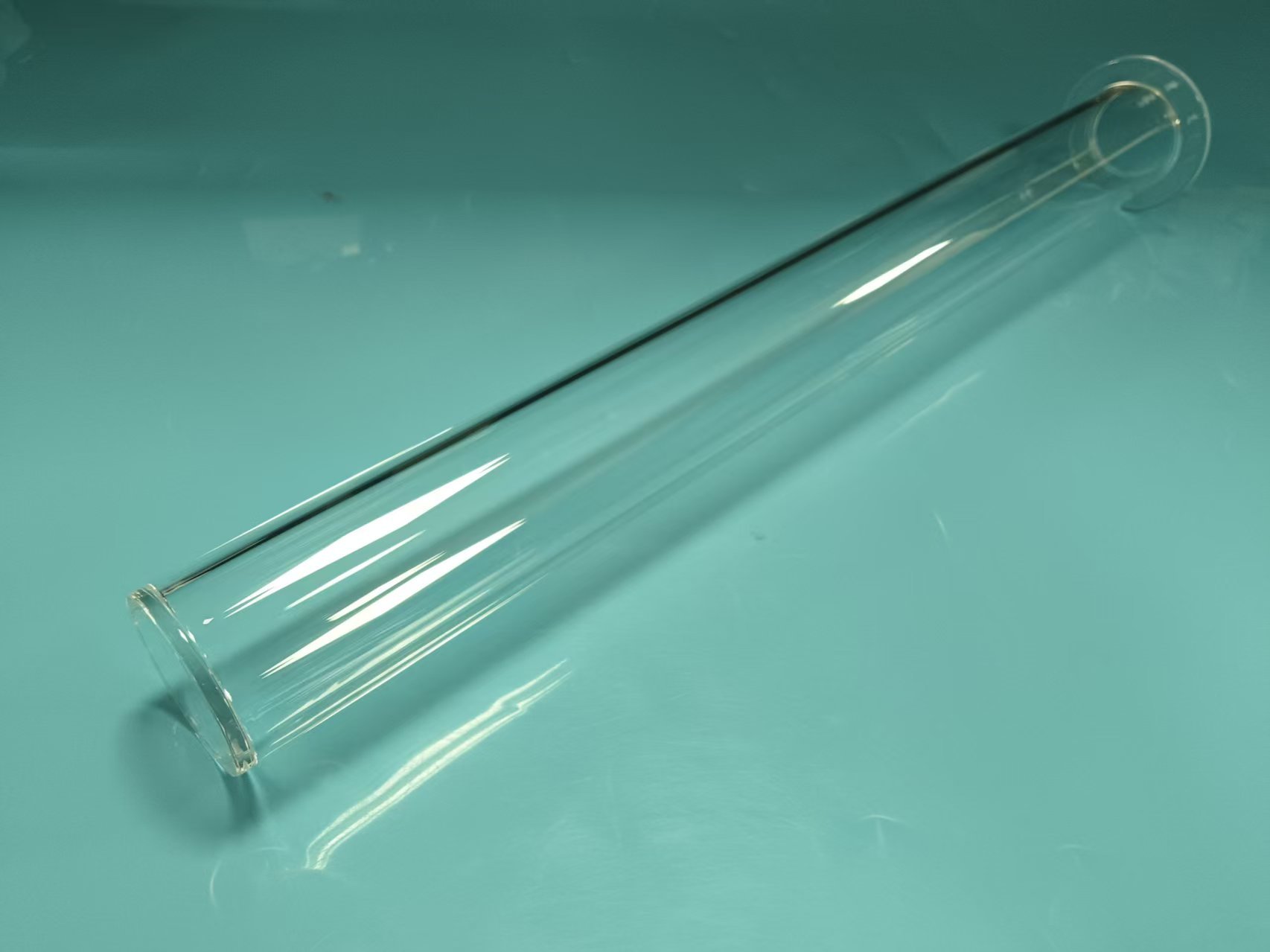

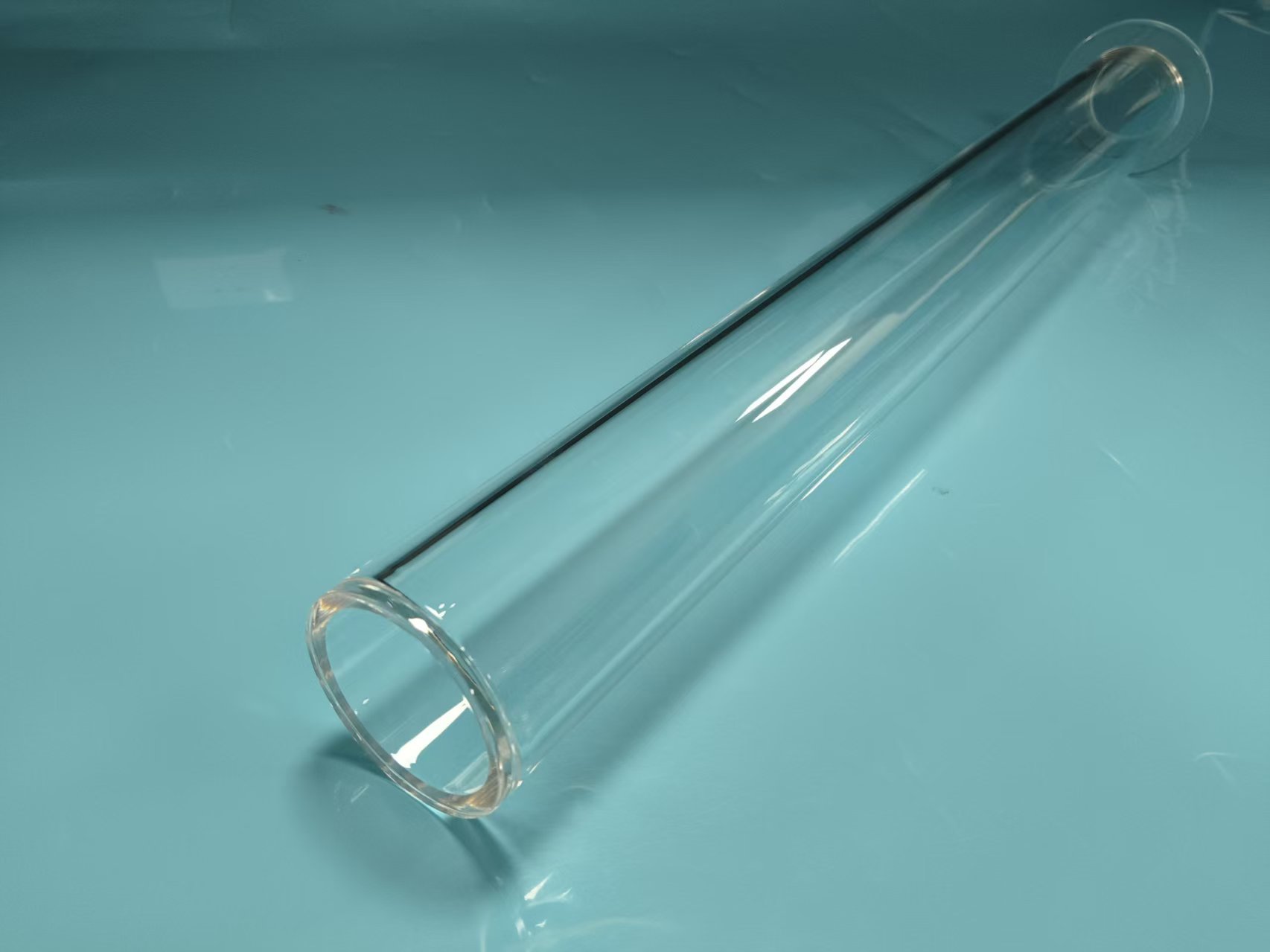

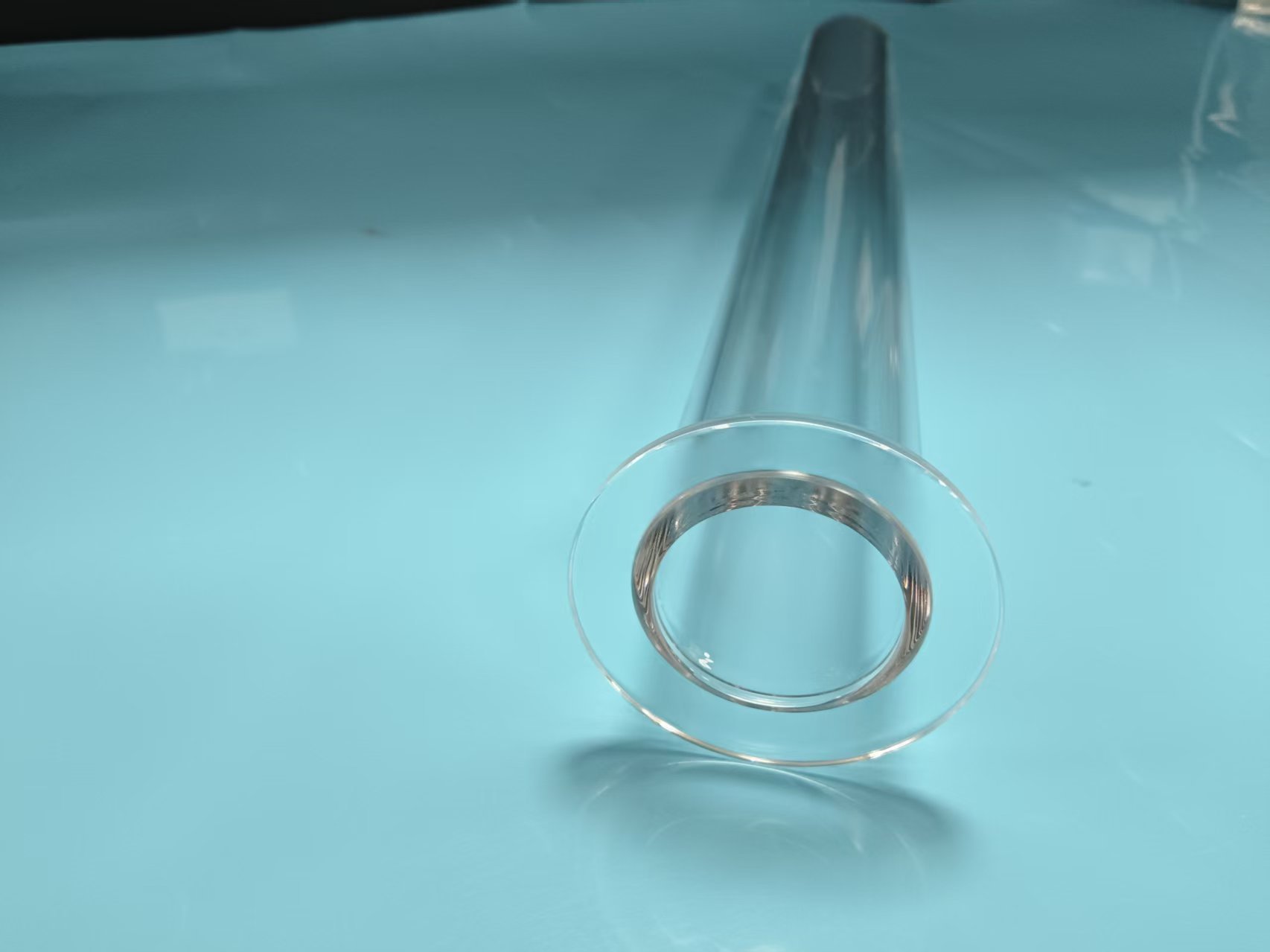

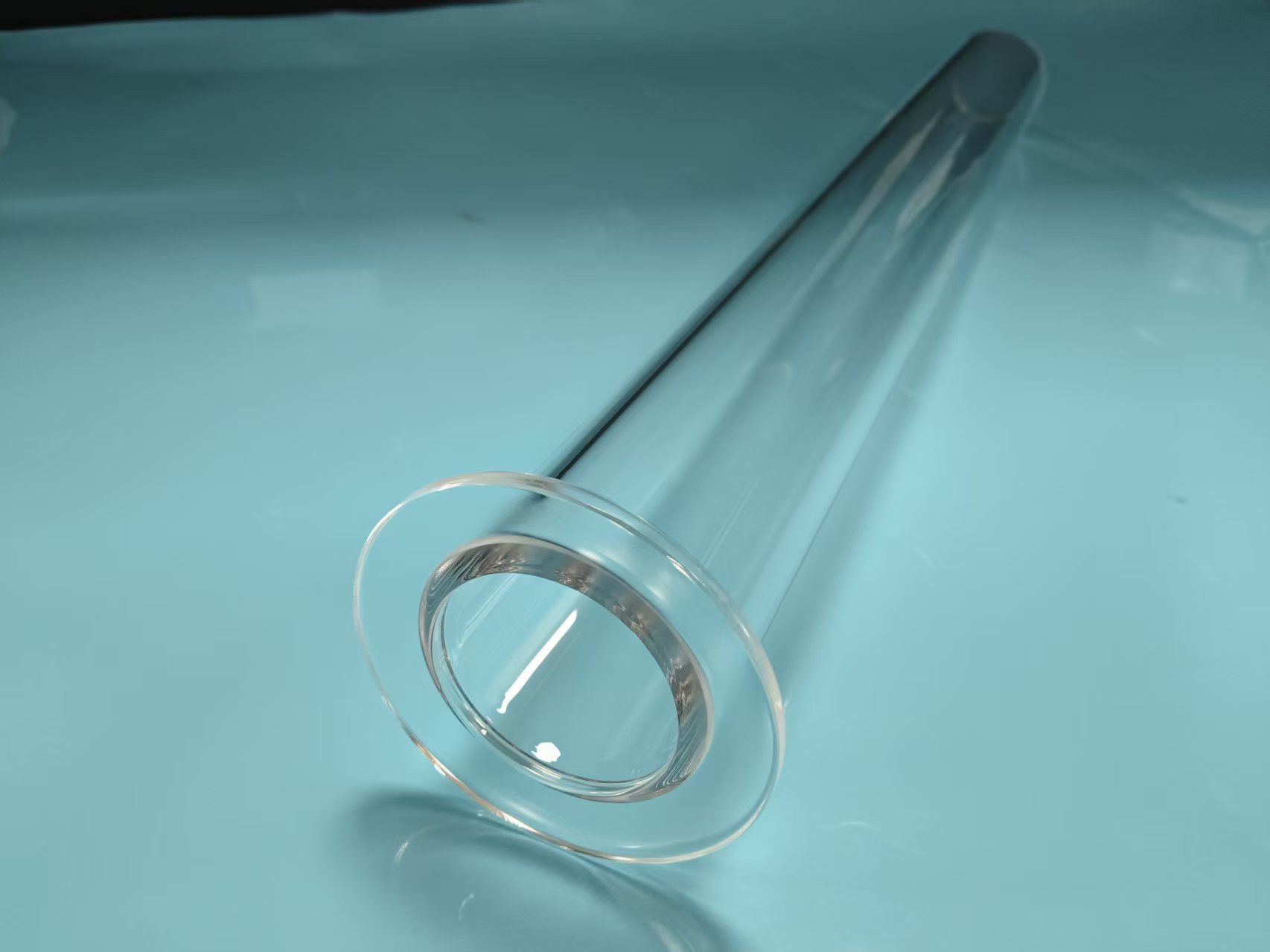

High Purity Quartz Protection Tube Basic Product Information
Product Name: High Temperature and Corrosion Resistant High Purity Quartz Protection Tube
Dimension: Outer Diameter Φ66mm * Inner Diameter Φ38mm * Total Length 435mm
Integrally formed from high-purity fused quartz, this tube features high temperature resistance, strong acid and alkali resistance, zero metal precipitation, excellent insulation and thermal stability. It is widely applied in high-temperature furnaces, semiconductor heat treatment, laboratory sintering, lithium battery new materials and industrial heat treatment for high-temperature protection.
Core Product Advantages (Compared with Ceramic and Stainless Steel Protection Tubes)1. Excellent High Temperature Resistance: Continuous working temperature up to 1100℃, short-term tolerance of 1200℃; outstanding thermal shock resistance, no cracking under rapid temperature change.
2. Superior Corrosion Resistance: Resistant to hydrofluoric acid, concentrated strong acids, strong alkalis and various corrosive organic fumes, unavailable for stainless steel and ceramic tubes under HF environment.
3. Ultra-High Purity without Precipitation: High-purity quartz substrate with no heavy metal or alkali metal ion dissolution, meeting ultra-clean manufacturing standards of semiconductors and lithium batteries.
4. Optional Light Transmittance and Insulation: High transmittance for visible and ultraviolet light, allowing direct observation of internal material reactions, with excellent insulating performance.
5. Low Thermal Deformation: Extremely low thermal expansion coefficient, minimal deformation under long-term high temperature and longer service life.
