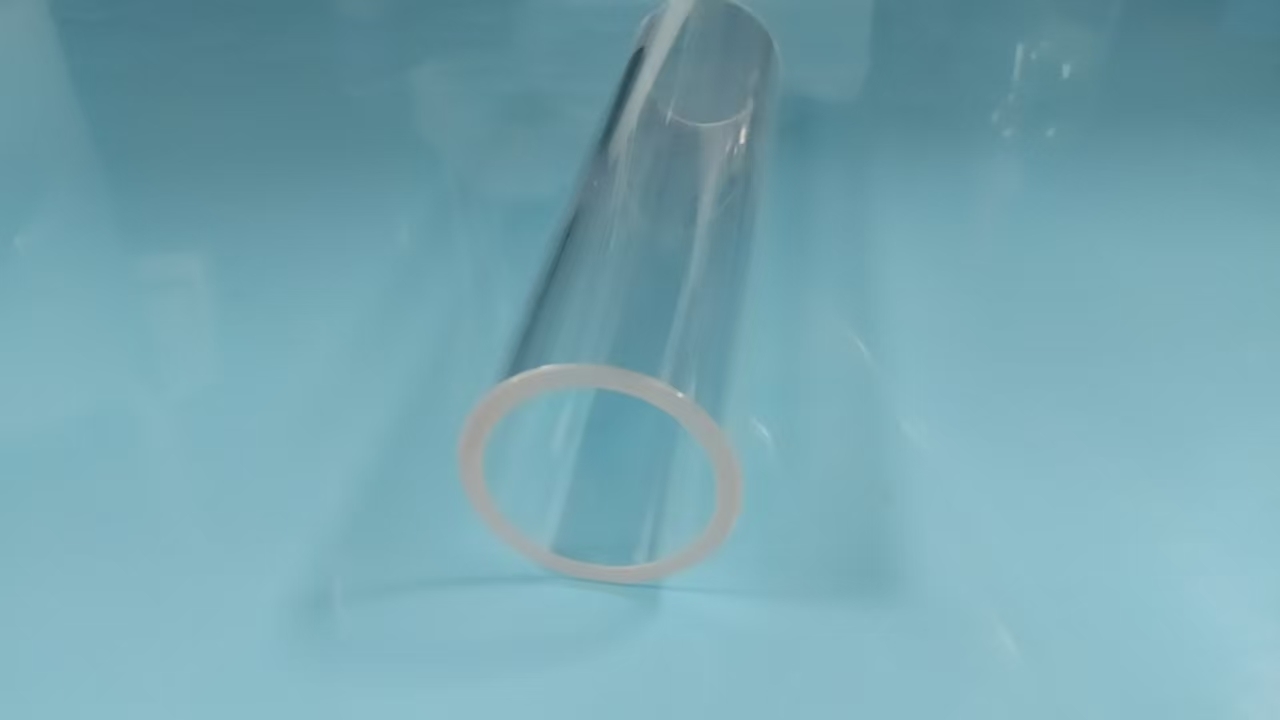

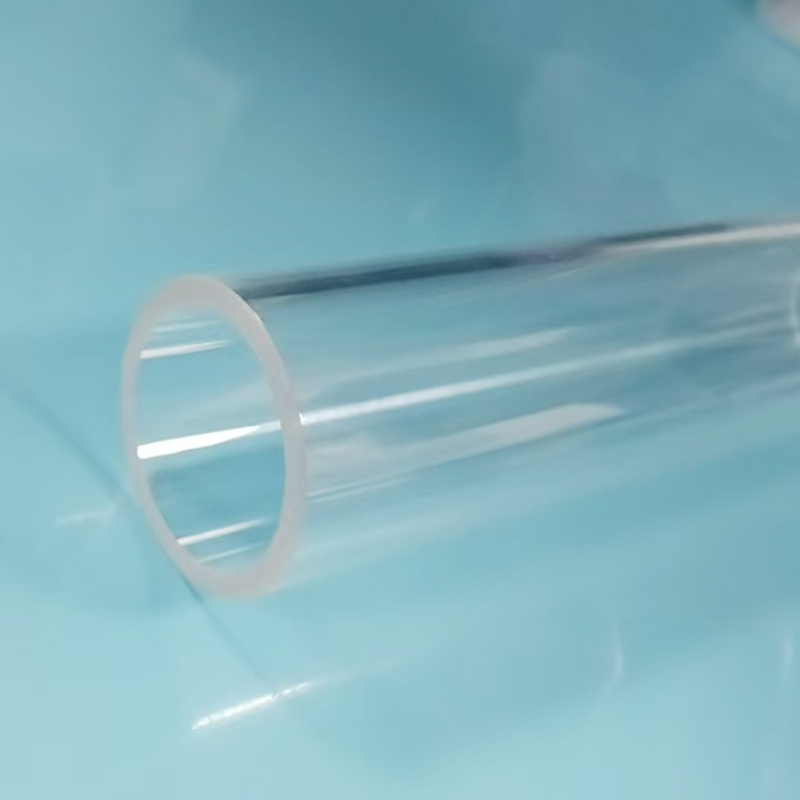

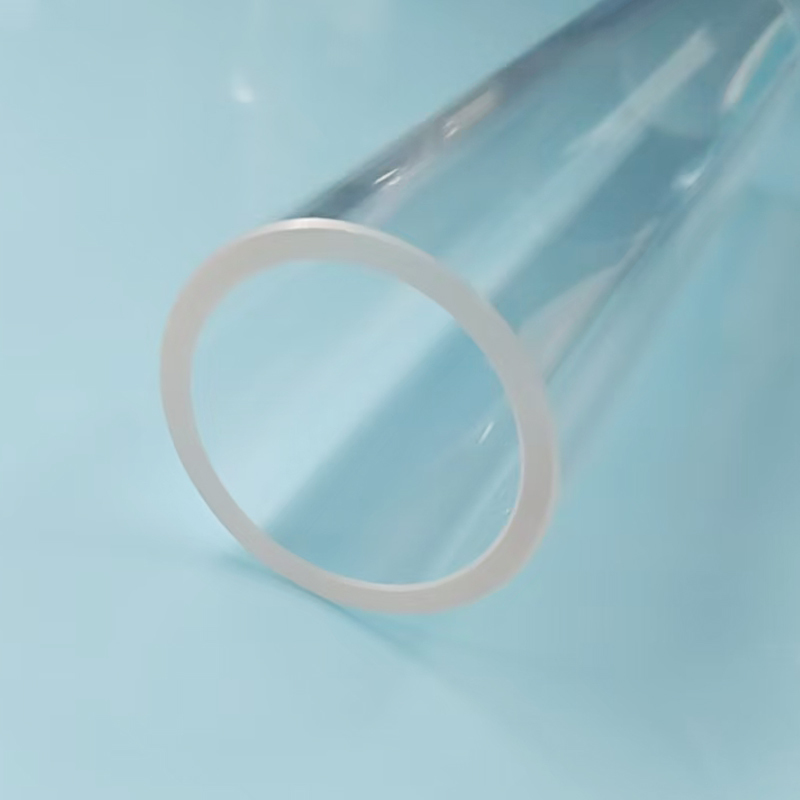

High Hardness 34*28*132mm Sapphire Glass Tube High Temperature Resistant

  • High Hardness 34*28*132mm Sapphire Glass Tube High Temperature Resistant
  • High Hardness 34*28*132mm Sapphire Glass Tube High Temperature Resistant
  • High Hardness 34*28*132mm Sapphire Glass Tube High Temperature Resistant
Place of Origin CHINA
Brand Name ZKTD
Certification SGS ISO
Model Number sapphire glass tube
Minimum Order Quantity 1
Price Negotiable
Delivery Time 5-8 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Details
Material Single-crystal Alumina (Al₂O₃) Hardness 9 Mohs
Dimensions Φ34*28*132mm Temperature Resistance Up To 1950℃
Corrosion Resistance Acid, Alkali, Plasma Resistant Application Semiconductor, Optics, Chemical, Medical
Highlight

high hardness sapphire glass tube

,

34*28*132mm sapphire glass tube

,

high temperature resistant sapphire glass tube
Leave a Message
Product Description
Sapphire Glass Tube Basic Product Parameters

Product Name: Sapphire Glass Tube
Specification and Dimensions: Φ34*28*132mm

Sapphire glass tube is a high hardness, high temperature resistant and corrosion-resistant transparent single-crystal alumina (Al₂O₃) tube, commonly known as "industrial sapphire".

Core Characteristics

Extreme Hardness: Rated 9 on the Mohs hardness scale, second only to diamond, featuring excellent wear resistance and impact resistance.

High Temperature Resistance: Capable of long-term service at temperatures up to 1950°C with superior thermal stability.

Superior Corrosion Resistance: Resistant to strong acids, strong alkalis and plasma, with a service life 3 to 5 times that of quartz tubes.

Excellent Optical Performance: Transmittance spectrum covers ultraviolet, visible and mid-infrared bands (up to approximately 5.5μm).

High Mechanical Strength: Features good air tightness, high pressure resistance and excellent electrical insulation properties.

Main Application Fields

Semiconductor Industry: High-temperature/vacuum chambers and observation windows for etching and deposition equipment.

Optics and Laser Industry: Laser tube housings, UV lamp protective sleeves, and optical instrument components.

Chemical and Energy Industry: Heavy oil reactors, high-temperature and high-pressure fluid pipelines, and sensor sheaths.

Medical Instruments: Endoscopes, laser scalpels, and sterile fluid pipelines.

High-temperature Furnace Industry: Furnace tubes and observation windows for tube furnaces and muffle furnaces.

High Hardness 34*28*132mm Sapphire Glass Tube High Temperature Resistant
