Supply Laser Spare Parts Ceramic Plate With Competitive Standard
| Place of Origin | China |
|---|---|
| Brand Name | ZKTD |
| Certification | SGS |
| Model Number | OEM |
| Minimum Order Quantity | 10pcs |
| Price | USD 95-150/PC |
| Packaging Details | Bubble pad, sponge, carton, wooden box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100pcs/day |
Product Details
| Feature | Pigment Removal,Skin Rejuvenation,Wrinkle Remover,Face Lift,Hair Removal | Name | Spare Parts Auto Focus Laser Head For Laser Cutting Machine,Laser Cutting Machine Spare Parts 100w Laser Tube |
|---|---|---|---|
| Application | Laser, Industry, Solar, Semiconductor | Durability | High |
| Service | Refill And Repair | Used | Laser Application |
| Machinery Test Report | Provided | Key Selling Points | Competitive Price |
| Size | Standard | Compressive Strength | 1100Mpa |
| Laser Power | Based On The Material | ||
| Highlight | Competitive Ceramic Plate,Standard Ceramic Plate,Supply Laser Spare Parts |
||
Product Description

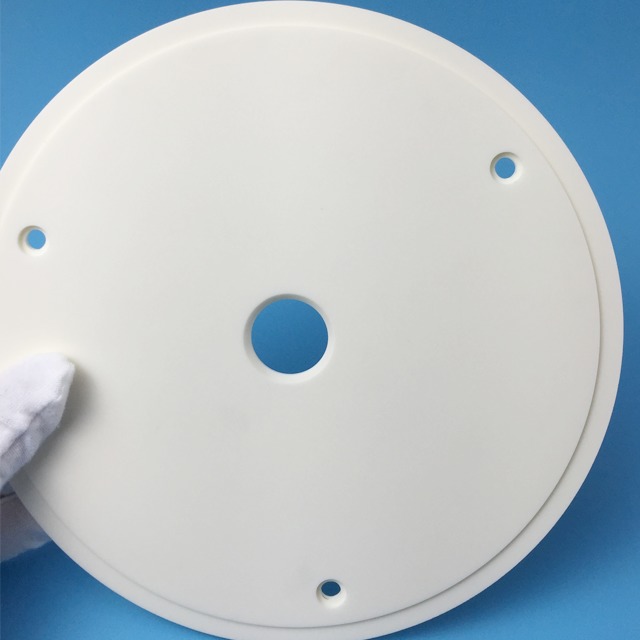

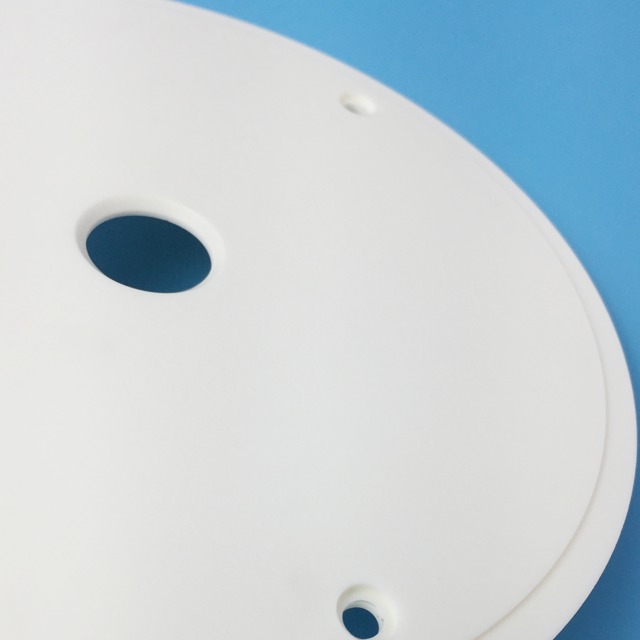

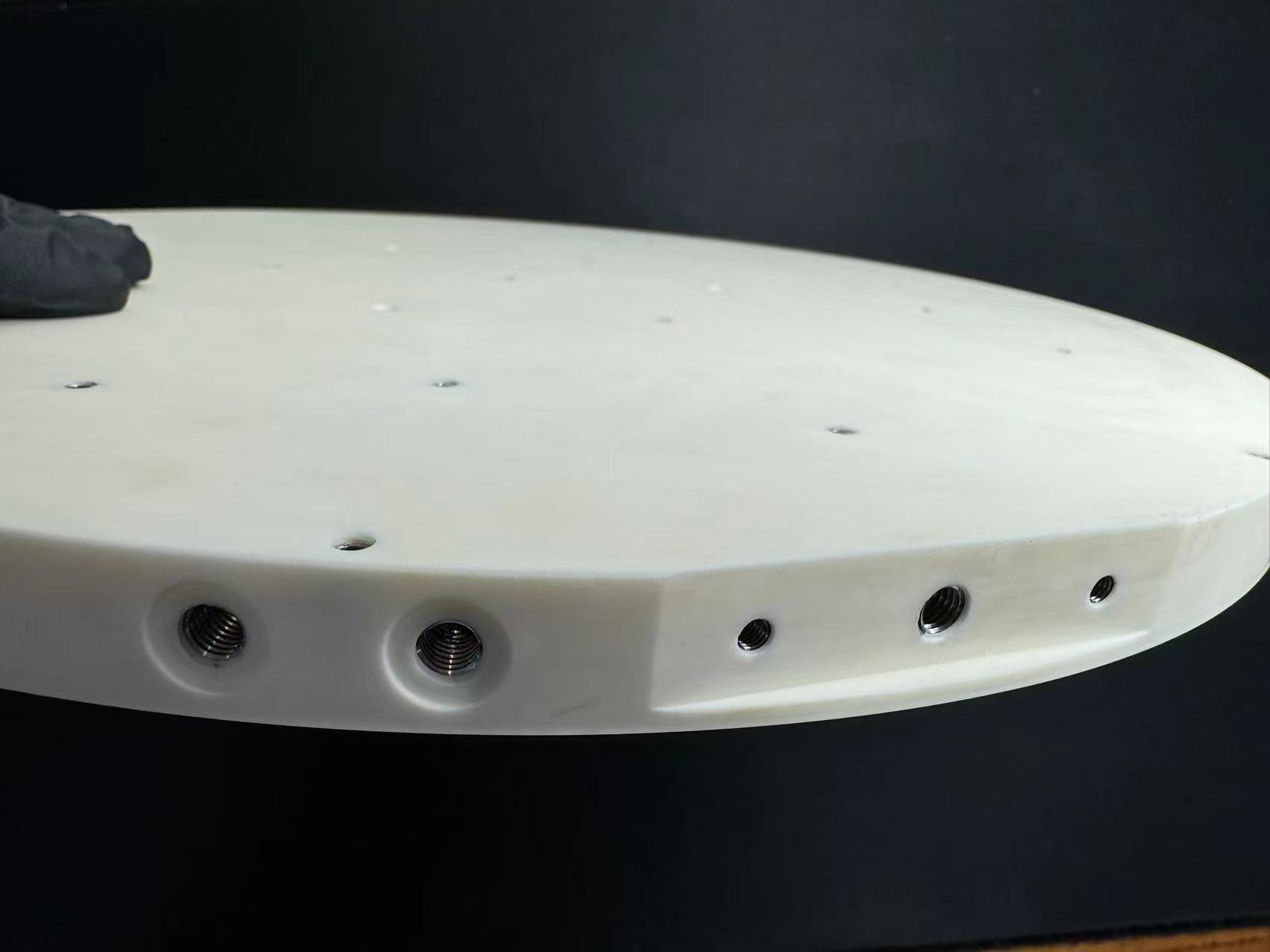

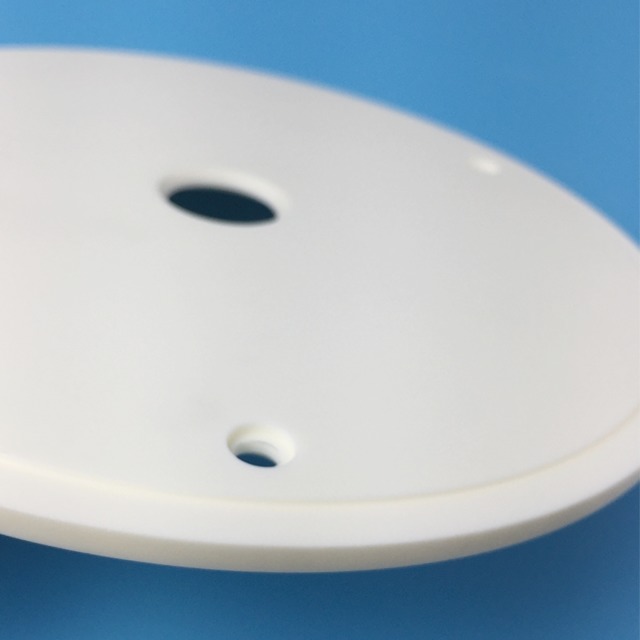

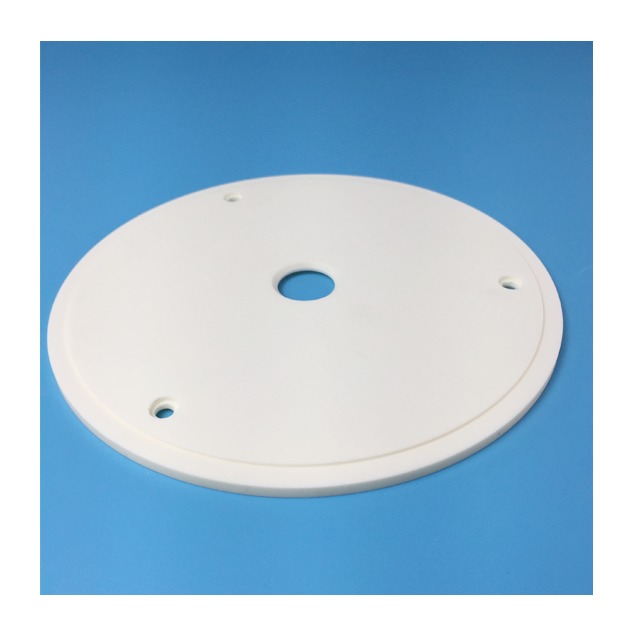

Laser Spare Parts Ceramic Plate Factory Supply
The laser cavity filters are widely used in the development of lamp, laser, and other fields. In Beijing Zhong Cheng Quartz Glass, laser cavity filters are manufactured with high precision, strict tolerance, improved strengthened performance to guarantee the satisfied quality.
|
Category |
Name |
Unit |
A95 Ceramic |
A99 Ceramic |
Alumina Ceramic |
High - Frequency Ceramic |
|
Physical Property |
Main Composition |
— |
Al₂O₃≥95% |
Al₂O₃≥99% |
ZrO₂≥94% |
MgO·SiO₂ |
|
|
Density (G/CM³) |
— |
＞3.5 |
3.85 |
5.9 |
2.8 |
|
|
Water Absorption (%) |
— |
0 |
0 |
0 |
0 |
|
|
Sintering Temperature (℃) |
— |
1670 |
1690 |
1650 |
1350 |
|
Material Property |
Hardness (HV) |
— |
1600 |
1700 |
1400 |
800 |
|
|
Flexural Strength (4pt) |
— |
3000 |
3500 |
11000 |
900 |
|
|
Compressive Strength (kgf/cm²) |
— |
25000 |
30000 |
25000 |
4000 |
|
Thermal Property |
Maximum Service Temperature |
℃ |
1400 |
1500 |
1600 |
1100 |
|
|
Thermal Expansion Coefficient |
1/℃ |
7.8 |
8 |
10 |
6 |
|
|
Thermal Shock Resistance (ΔT (℃)) |
— |
200 |
200 |
350 |
200 |
|
|
Thermal Conductivity (W/m·K) |
— |
31 |
31 |
3 |
2.5 |
