High Purity Fused Silica Tubes And Rods For Fiber Optic Products

  • High Purity Fused Silica Tubes And Rods For Fiber Optic Products
  • High Purity Fused Silica Tubes And Rods For Fiber Optic Products
  • High Purity Fused Silica Tubes And Rods For Fiber Optic Products
Place of Origin China
Brand Name ZKTD
Certification ISO 9001, RoHs
Model Number ZKTD-HH300
Minimum Order Quantity 1 pc
Price 0.1 USD per pc
Packaging Details carton, wooden case
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Fiber optic fused silica tubes

,

High purity fused silica rods

,

High purity fused silica tubes
Leave a Message
Product Description

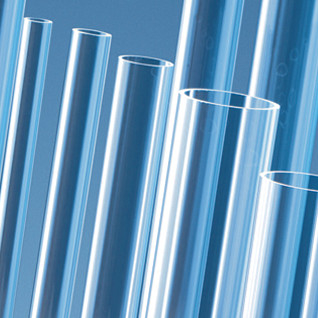

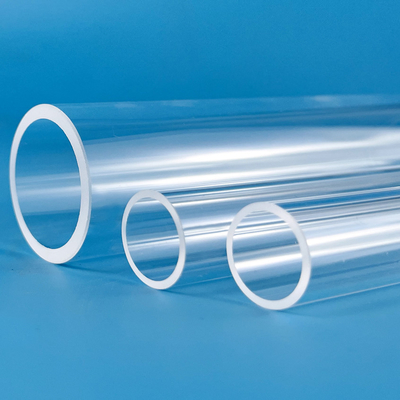

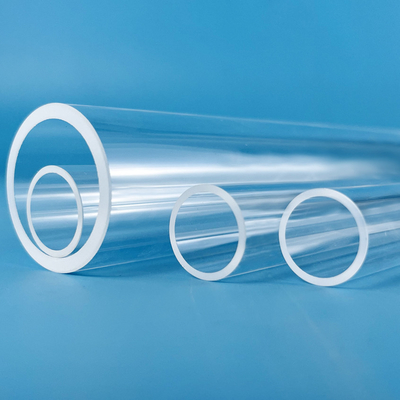

High-purity fused silica tubes and rods for fiber optic products





  • ZKTD-HH300 series high-purity fused quartz tube is characterized by hydroxyl content that is less than 1ppm, which is the most important parameter for fiber optic materials. The high-purity fused quartz tube is mainly used for the inner core or high reflection coatings production of optical fiber.
  • ZKTD-HH300D series high-purity fused quartz rod is featured with hydroxyl content that is less than 1ppm, which is the most important parameter for fiber optic materials. The high-purity fused quartz rod is widely applicable for the inner core or high reflection coatings production of optical fiber.


Technical Parameters





Highly pure quartz tubes
Exterior diameter Tube wall thickness Length
< 3mm 0.5-1.5 With a standard length of 1200mm (tailored to customers’ needs)
3-13mm 0.7-2.0 With a standard length of 1200mm (tailored to customers’ needs)
14-60mm 1.5-10.0 With a standard length of 1200mm (tailored to customers’ needs)
61-80mm 5.0-10.0 With a standard length of 1200mm (tailored to customers’ needs)


Highly pure quartz rods
Diameter Surface Length
≦10mm Opaque surface With a standard length of 1200mm (tailored to customers’ needs)
10-80mm Opaque surface / matte surface With a standard length of 1200mm (tailored to customers’ needs)





For more information, please feel free to contact us by sales.t@zktdoptics.com
