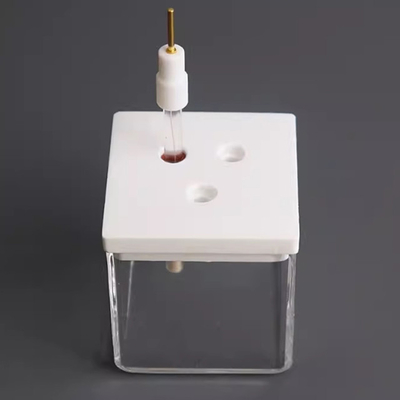

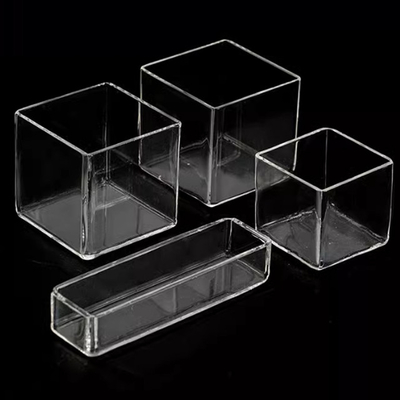

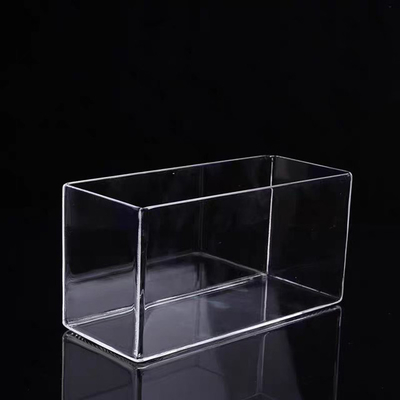

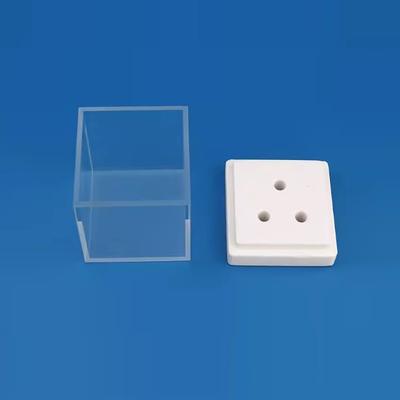

Custom Made Quartz Glass Rectangular Container Used As Plasma Reactors With Corrosive Liquids

  • Custom Made Quartz Glass Rectangular Container Used As Plasma Reactors With Corrosive Liquids
  • Custom Made Quartz Glass Rectangular Container Used As Plasma Reactors With Corrosive Liquids
  • Custom Made Quartz Glass Rectangular Container Used As Plasma Reactors With Corrosive Liquids
  • Custom Made Quartz Glass Rectangular Container Used As Plasma Reactors With Corrosive Liquids
Place of Origin China
Brand Name ZKTD
Certification ISO 9001, RoHs
Model Number ZKTD-R001
Minimum Order Quantity 1 pc
Price 0.1 USD per pc
Packaging Details carton, wooden case
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Quartz Glass Rectangular Container Material High Purity Quartz
Feature High Thermal Stability, Corrosion Resistance Surface Smooth
Certifications ISO 9001:2015, RoHS Application Laboratory Experiments And Industrial Processes
Hot Work Temperature 1100℃ Dimension Customized
Highlight

Plasma Reactors quartz glass rectangular container

,

Custom-made quartz glass rectangular container

,

Corrosive Liquids quartz glass rectangular container
Leave a Message
Product Description

Custom-made quartz glass rectangular container used as plasma reactors with corrosive liquids





Each ZKTD product is typical of high purity fused quartz (99.995% SiO2) material, high precision manufacturing

and strict quality control measures based on customer's requirement.



OEM services and technical expert advises are also our core policy. We carry customized quartz glass production

for R&D projects of universities like Tsing Hua University, Renmin University, National University of Singapore,

and popular brands.



Highest quality products in the shortest delivery time are our dedication to cooperation partners!



Custom Made Quartz Glass Rectangular Container Used As Plasma Reactors With Corrosive Liquids 0







Here following is the properties of quartz:



Physical Properties:

性能Properties 标准值Value

机械性能

Mechanical Properties

 密度/ Density 2.203g/cm3
抗压强度/ Compressive Strength 1100Mpa
抗弯强度/ Bending Strength 67Mpa
抗拉强度/ Tensile Strength 48.3Mpa
泊松比/ Poisson's Ratio 0.14～0.17
杨氏模量/Young’s Modulus 72000Mpa
刚性模量/ Rigidity Modulus 31000Mpa
莫氏硬度/ Mohs Hardness 5.5～6.5

热学性能

Thermal Properties

 变形温度/ Deformation Point 1280℃
软化点/Softening Point 1680℃
退火点/Annealing Point 1210℃
比热/Specific Heat (20～350℃) 670J/kg.℃
热导率/Thermal Conductivity (20℃) 1.4W/m.℃
热膨胀系数/ Coefficient of thermal expansion 5.5×10-7cm/cm.℃
热加工温度/Hot Work Temperature 1700～2000℃
短期使用温度/ Short-term Use Temperature 1300℃
长期使用温度/ Long-term Use Temperature 1100℃

电学性能

Electrical Properties

 电阻率/ Resistivity 7×107Ω.cm
介电强度/ Dielectric Strength 250～400Kv/cm
介电常数ε/ Dielectric Constant 3.7～3.9
介电吸收系数/ Dielectric absorption coefficient <4×104
介电损耗系数/ Dielectric loss coefficient <1×104

Chemical Properties:

溶 液

(Solution )

处理条件

(Treatment condition)

腐蚀量

(Corrosion capacity)
H2O 95℃ 45小时(Hours) 1~2×10-7 g/cm2
98%H2SO4 20℃ 2小时(Hours) 1.4×10-8 g/cm2
60%HNO3 20℃ 2小时(Hours) 5.0×10-8 g/cm2
36%HCl 20℃ 2小时(Hours) 15×10-8 g/cm2
5%NaOH 100℃ 10小时(Hours) 1.35×10-3 g/cm2
1%KOH 98℃ 2小时(Hours) 68×10-6 g/cm2


For more information, please feel free to contact sales.t@zktdoptics.com
