Rectangle Square Round Quartz Glass Plate Ultra Thin Jgs1 For Lab Project Research Fluorescence Detection

Place of Origin CHINA
Brand Name ZCQ
Certification ISO 9001
Model Number OEM
Minimum Order Quantity 1
Price USD0.1 per piece
Packaging Details carton, wooden case
Delivery Time 5 wooking days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material High Purity Quartz JGS1 Color Transparent Clear
Surface Quality 10/5 - 80/50 Work Temperature 1200 Degree
Feature Ultra Thin, High Precision, Good Performace, Long Service Life
High Light

ultra thin jgs1 quartz glass plate


oem quartz glass plate


fluorescence detection quartz glass sheet

Leave a Message
Product Description

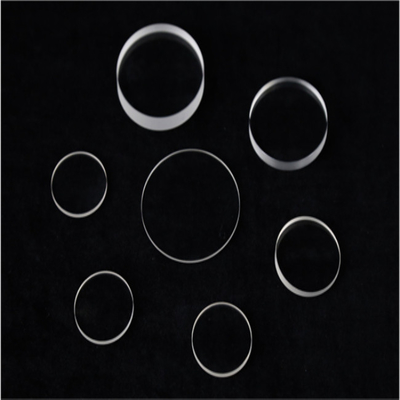

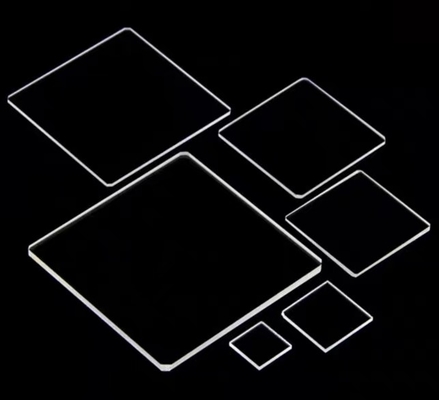

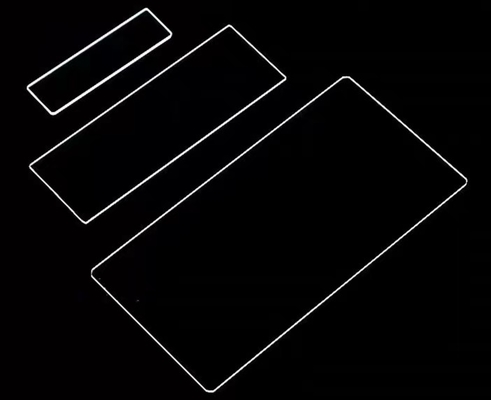

Wholesale rectangle square round ultra thin JGS1 quartz plate

for lab project research fluorescence detection


Quartz Ultra-Thin Plates

Quartz Cover Slips

Quartz Substrates

Quartz Slides

Ultrathin UV Quartz Sheets with Thickness 0.1mm To 0.5mm

Edu - Quartz glass sheet JGS1 high temperature resistance, acid and alkali resistance, ultra-thin, square/round glass sheet



Quartz Material: This product is made of JGS1 Quartz material, it can transmit 200-2500nm light, nice UV-Vis transmittance performance.


Features: strong acid and base resistance, organic solvent resistance, high temperature resistance.

1. Strong Acids Resistance

Except for some acids corrosive to the glass itself, such as, hydrofluoric acid.

2. Strong Base Resistance

Can withstand 6mol/L sodium hydroxide, holding for 24 hours without degumming, no leakage.

3. Organic Solvents Resistance

Can withstand C₂H₆O, CF4 and benzene, etc., without degumming and no leakage by 24h erosion of organic.

4. High Temperature Resistance

Can withstand high temperatures up to 1200°C


Sizes in Stock:

Length x Width Thickness
4mm x 2mm 0.1mm
5mm x 2.6mm 0.1mm
13mm x 9mm 0.5mm
14mm x 12mm 0.5mm
20mm x 10mm 0.25mm
20mm x 10mm 0.5mm
20mm x 15mm 0.5mm
40mm x 20mm 0.14mm
40mm x 20mm 0.17mm
40mm x 20mm 0.2mm
50mm x 24mm 0.1mm
50mm x 24mm 0.2mm
75mm x 25mm 0.17mm
75mm x 25mm 0.2mm
75mm x 25mm 0.5mm
155mm x 34mm 0.5mm


Optical property JGS1 in blue:

Rectangle Square Round Quartz Glass Plate Ultra Thin Jgs1 For Lab Project Research Fluorescence Detection 0


We also offer customize plate with High Purity Quartz, JGS1 (UV Quartz), JGS3 (IR Quartz), and K9 Optical Glass material.
