Multi Hole Quartz Glass Tubes For Electronic Cigarette Suction Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Quartz Glass | Holes | 10 Holes |
---|---|---|---|
Outer Diameter | 8mm | Surface | Transparent |
Precision | 0.1mm | Application | Electronic Cigarette/E-Cigarette |
Shape | Round | End Surface | Fine Ground |
High Light | multi hole quartz glass tubes,10 holes quartz glass tubes,electronic cigarette suction rod quartz tubes |

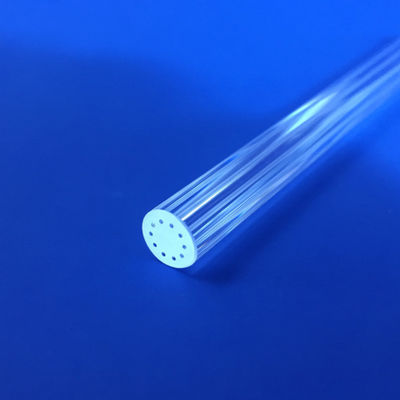

Multi-Hole Glass Tubes Used For Electronic Cigarette Suction Rod
The multi-hole glass tube is often used as suction rod in electronic cigarette application. The high temperature resistant material, consistent hole size, high precision dimension control, all makes the part have good performance and good suction feeling.
Product Features:
High precision dimension
Easy for liquid or gas flow
Consistent hole size for good suction feeling
High end part for electronic cigarette
As a manufacturer in glass processing field, we are experienced in all kinds of high precision glass part. For glass capillary tubes and rods, please find our production capability below:
Circular capillary | |||
Parameter | Diameter | Tolerance | Unit |
Length | 1~2000 | ±0.2 | mm |
OD | 0.2~6 | ±0.03 | |
ID | 0.06~5 | ±0.03 | |
Material | Quartz glass, borosilicate glass, and other materials | ||
Specification | Other dimensions and tolerances can be manufactured according to customer requirements |
Square capillary | |||
Parameter | Diameter | Tolerance | 单Unit |
Length | 1~2000 | ±0.2 | mm |
Width | 0.3x0.3~6x6 | ±0.03 | |
ID | 0.1x0.1~5x5 | ±0.03 | |
Material | Quartz glass, borosilicate glass, and other materials | ||
Specification | Other dimensions and tolerances can be manufactured according to customer requirements |
Capillary rod | |||
Parameter | Diameter | Tolerance | Unit |
Length | 1-2000 | ±0.2 | mm |
Square side length | 0.2-6 | ±0.03 | |
Round diameter | 0.06-5 | ±0.03 | |
Material | Quartz glass, borosilicate glass, and other materials | ||
Specification | Other dimensions and tolerances can be manufactured according to customer requirements |
Shaped Capillary Tube / Rod | |
Shape | Conical tube, D-shaped tube, Elliptical tube, Trapezoidal tube, Hexagonal tube, Triangular tube, V-shaped rod, U-shaped rod, |
Aperture | Multi-hole (double holes, four holes, six holes, seven holes, eight holes, double row three holes), elliptical, rectangle, square, triangle, eccentric, D-shaped |
Material | Quartz glass, borosilicate glass, and other materials |
Remark | Minimum tolerance ±0.05mm, other shapes and sizes can be produced according to customer’s requirements |
High purity Capillary Quartz Tubes & Rods(or Quartz/Glass Capillary Tubes & Rods) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.
