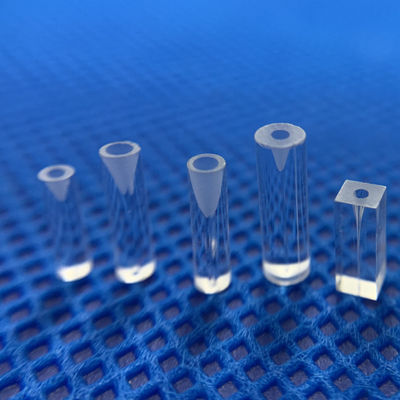

Conical Funnel Square Glass Capillary Tube For Fiber Sleeves

  • Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
  • Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
  • Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
  • Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
  • Conical Funnel Square Glass Capillary Tube For Fiber Sleeves
Place of Origin China
Brand Name ZCQ
Certification RoHs
Model Number Custom
Minimum Order Quantity Ten piece
Packaging Details Standard Safe
Delivery Time 2-4 weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Quartz Glass Or Borosilicate Glass Dimension φ0.125mm, φ0.126mm, Etc.
Application Optical Fiber Sleeves Surface Transparent
Resistivity 7×107Ω.cm Dielectric Strength 250～400Kv/cm
Dielectric Constant 3.7～3.9 Dielectric Absorption Coefficient <4×104
Dielectric Loss Coefficient <1×104 Deformation Point 1280℃
High Light

conical funnel square glass capillary tube

,

fiber sleeves square glass capillary tube

,

conical funnel quartz capillary tube
Leave a Message
Product Description

High Precision Custom Glass Capillary Tubes with Conical Funnel for Fiber Sleeves



High purity Capillary Quartz Tubes & Rods(or Quartz/Glass Capillary Tubes & Rods) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.



Square capillary
Parameter Diameter Tolerance 单Unit
Length 1~2000 ±0.2 mm
Width 0.3x0.3~6x6 ±0.03
ID 0.1x0.1~5x5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements



Capillary rod
Parameter Diameter Tolerance Unit
Length 1-2000 ±0.2 mm
Square side length 0.2-6 ±0.03
Round diameter 0.06-5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements





Circular capillary
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
OD 0.2~6 ±0.03
ID 0.06~5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification

Other dimensions and tolerances can be manufactured according to customer requirements

Conical Funnel Square Glass Capillary Tube For Fiber Sleeves 0



Conical Funnel Square Glass Capillary Tube For Fiber Sleeves 1

Conical Funnel Square Glass Capillary Tube For Fiber Sleeves 2
