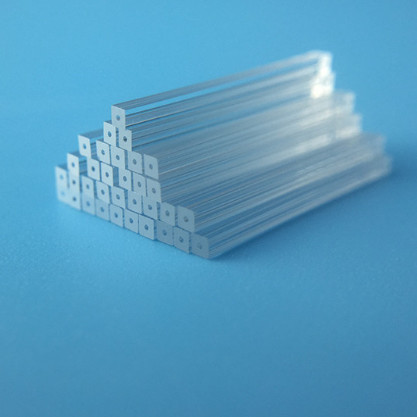

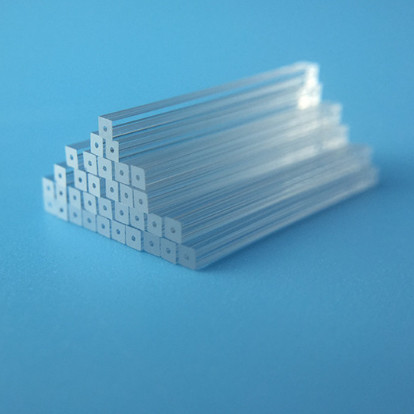

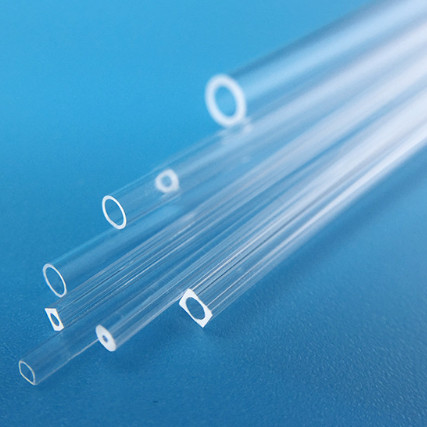

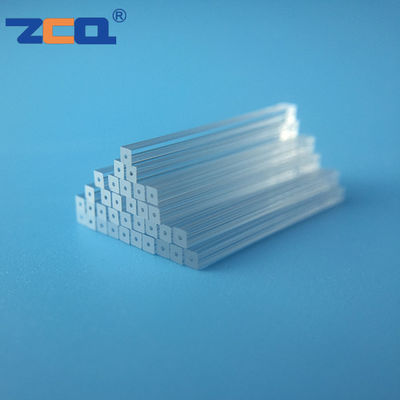

2.2g/Cm3 Quartz Capillary Tube Polished Surface Clear Quartz Pipe

Place of Origin Beijing
Brand Name ZCQ
Certification ISO9001 / RoHS
Model Number CapillaryTube0001
Minimum Order Quantity 10 pcs
Price USD0.5~80/pcs
Delivery Time 5-8 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Clear Quartz Pipe Surface Treatment Polished
Color Clear Outside Diamete 0.5-350mm
Material 99.99% Pure Quartz Density 2.2g/cm3
Work Temperature 1200℃ Annealing Point 1250℃
Category JGS1/JGS2
High Light

2.2g/cm3 Quartz Capillary Tube


Polished Quartz Capillary Tube


Capillary Clear Quartz Pipe

Leave a Message
Product Description

High Quality Quartz Glass Capillary Tube


Quartz glass capillaries have a series of excellent properties such as optics, physics, mechanics, and electricity. With the continuous miniaturization of high-precision technology, quartz glass capillaries will play an increasingly important role.


Capillary Tube / Rod
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
OD 0.2~11 ±0.03
ID 0.06~10 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements


Application: Quartz glass capillary tubing and rods are widely used as supporting glass capillary tubes for PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), optical fiber array substrate,fiber optic connectors in laser(wire glass tube), optoelectronics, optical communications industry.

In addition,quartz capillary tubing is the essential component and required material of electronic, medical Treatment, and optical industry.

(1)According to precision grade: High precision, medium precision
(2)According to different shapes: Standard Quartz Capillary Tubing, Square-Shape Tubing, Rectangular- shape,Conic-shape Tubing, D-Shape Tubing, V-Shape Tubing, U-Shape Tubing, Hexagonal-shape tube,Triangle-shape Tubing, or other custom shape.
(3)According to inner diameter hole :Round Hole Tube,Multiple Hole Tube(Double Hole,Four Holes,Eight Holes, Double Row Three Holes),Square Hole Tube, Oval Hole Tube, Eccentric Tube, D-shaped Hole Tube and other custom irregular shaped quartz tubes.2.2g/Cm3 Quartz Capillary Tube Polished Surface Clear Quartz Pipe 02.2g/Cm3 Quartz Capillary Tube Polished Surface Clear Quartz Pipe 12.2g/Cm3 Quartz Capillary Tube Polished Surface Clear Quartz Pipe 2



Rich experience in quartz glass industry

We have more than 25 years industry experience in quartz glass processing. We specialize in quartz glass capillary tubes and rods, quartz glass substrates, CNC machined quartz, and quartz instruments etc. According to product application, we have good grasp of material properties and adapt the proper material into product application.


Strong technical force in processing and application

Beijing Zhong Cheng Quartz Glass Co., Ltd(ZCQ) is a high-tech manufacturer specializing in the production and customization of quartz glass products and optical glass products. We has excellent technical strength, strong innovation ability and stable product quality. Our processing method is rich, drawing of glass, cold and thermal processing, micro size machining, high precision and difficulty process, combination of multiple processing methods, which guarantee that our product is excellent in all aspects.


Integrity and Quality Assurance

We are well known in quartz glass industry. Quality is the lifeline of enterprise survival and development. Integrity is the source of enterprise reputation, the foundation of standing and the foundation of development. Through unremitting efforts and continuous improvement, we have created a good manufacturing platform of optical glass for customers.
