Transparent Customized Large Diameter Quartz Tube Vase Inner Shape

Place of Origin CHINA
Brand Name ZCQ
Certification ISO 9001
Model Number OEM
Minimum Order Quantity 1
Price USD0.1 per piece
Packaging Details carton, wooden case
Delivery Time 5 wooking days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material High Purity Quartz Product Name ZCQ Transparent Customized Large Diameter Quartz Tube
Color Transparent Clear Application Semiconductor, Medical, Industry, Solar
Size Shape & Dimension Customized Surface Treatment Polished
Work Temperature 1200 Degree
High Light

transparent large diameter quartz tube


vase inner large diameter quartz tube


customized large diameter quartz glass tube

Leave a Message
Product Description

Wholesale ZCQ Transparent Customized large diameter quartz tube Quartz pipe vase inner shape


1. SiO2> 99.99% ,high purity quartz tube.

2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
3.Excellent visual and chemical
performance .
4. without surface coating and infectant.
5. Health care and environmental protection. 6. Any dimension can be made.
7. CE.RoHs SGS approved.

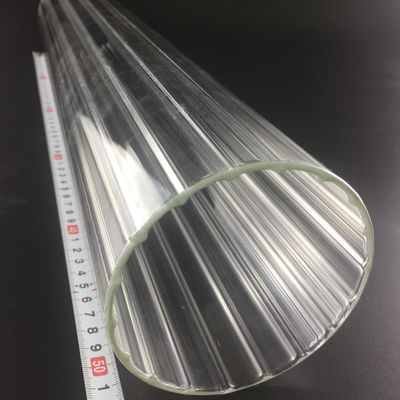

Transparent Customized Large Diameter Quartz Tube Vase Inner Shape 0

Quartz Performance

Chemical properties:Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material, with better chemical stability than opaque quartz glass, non-hygroscopic and non-weathering.
Electrical Properties:Quartz glass has high dielectric strength and low conductivity, even at high temperature, high pressure and high frequency, still maintain high dielectric strength and resistance, almost no dielectric loss in the applied frequency band, so quartz glass is excellent high temperature dielectric insulation material.
Optical Performance:Quartz glass has its unique optical properties, it can transmit both the far-ultraviolet spectrum, which is a good choice for all UV-transmitting materials, and can transmit visible light and near-infrared spectrum, high temperature resistance, small coefficient of thermal expansion, good chemical thermal stability, bubbles, streaks, uniformity, birefringence and comparable to general optical glass.
Thermal Properties:The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of the ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
Mechanical properties:Quartz glass mechanical properties than coin glass and ceramics are better, but the brittleness is poor. The theoretical calculated strength of quartz glass is very high, about 24 * 1.3 MPA, but the actual measured strength is tens of times lower than this value.
Airtight performance:The structure of quartz is very relaxed, even at high temperatures also allows the ions of certain gases to diffuse through the network, including the diffusion of sodium ions for the faster. This property of quartz glass is particularly important for users.
Company profile
Transparent Customized Large Diameter Quartz Tube Vase Inner Shape 1


Founded in 1998, Beijing Zhong Cheng Quartz Glass Co., Ltd. (ZCQ for short) represents a high-tech supplier manufacturing quartz, optical glass, crystal glass products and molding tools located in Changping District, Beijing, China. Our main customers are from overseas countries and mainland China. ZCQ's products are widely in the lines of semiconductors, electronics, coating, laser, chemicals, medical treatment, spaceflight, optical resources, laboratory research, mechanical equipment and others.


We mainly supply:

1. Quartz Products

2. Optical Glass

3. Crystal Glass

4. Some plastic and metal molding tools


In Type 1 Quartz Glass, we are supplying:

a. Quartz discs, windows, flats, plates, rings, substrates, wafers, fringes, and panels: both in fine polishing, fine grinding or commercial polishing and grinding; in transparent, nontransparent or opaque statuses

b. CNC Quartz components and parts:

Through CNC design and software control, the Quartz parts can be precisely fabricated especially in doing arcs, slopes, slots, spheres, holes and cones, and taking 3D and angle processing in accordance with clients' own designs.

c. Quartz labware made by thermal treatment:

Tubing, apparatuses and various customer-designed labware can be made.

d. Sio2 Targets (Silicon Dioxide Sputtering Targets): as a thin film and composite coating material for vacuum coating:

Purity: Containing SIO2 of 99.95%-99.9999%

Characteristics: High Purity; Low Air Bubble Density; Low Impurity Content

Category: Grains, Wafers, Discs, Panels, Plates, Rings, and Blocks



In Type 2 and 3 Optical Glass, we are supplying:

a. BK7 glass

b. B270 glass

c. F-series glass

d. Float glass

e. CaF2 glass

f. Quartz Crystal

g. Optical Coating (AR, UV Filters)

h. Other various optical materials


Some typical products:

1. High Precision Windows

Dimension Tolerance: plus/minor 0.1mm ~ plus/minor0.01mm

Flatness: fringe ~ fringe /10

Surface Quality: 60/40 ~ 10/5


2. Ultra Thin Windows

Custom-Made Length / Width / OD by Thickness 1mm ~ 0.05mm


3. High Reflective Coating (HR), Anti-Reflection Coating, Protected Aluminum, and Protected Gold


In Type 4 molding tools, we are supplying:

Through CNC design and control, the metal and plastic molding tools and tooling fixtures for customers' mass production of their products, such as aluminum, copper, metal and others.


We welcome clients both in domestic and overseas markets to contact us for an inquiry and friendly collaboration!
