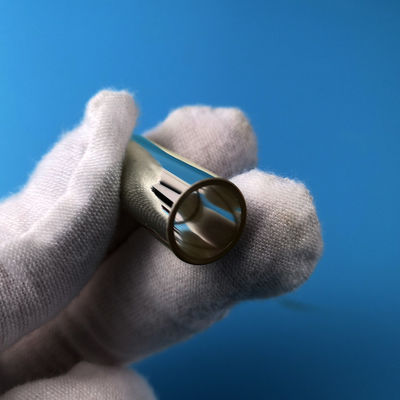

High Reflectivity Quartz Glass Test Tube Silver Coated Surface For Laser Industry

Place of Origin CHINA
Brand Name ZCQ
Certification ISO 9001
Model Number OEM
Minimum Order Quantity 1
Price USD0.1 per piece
Packaging Details carton, wooden case
Delivery Time 5 wooking days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 1000 pieces per week
Product Details
Material High Purity Quartz Color Silver
Application Lab, Industrial, Semiconductor, Optical Size Shape & Dimension Customized
Surface Treatment Silver Plated Work Temperature 1200 Degree
High Light

high reflectivity quartz glass test tube

,

laser industry quartz glass test tube

,

silver coated surface quartz glass tube

Leave a Message
Product Description



Description:

High reflectivity silver plated surface quartz glass tube is made of SiO2 and coated by silver in special industrial technology. It is a kind of base material with excellent physical and chemical performance. The softening point of Quartz glass is around 1730°C. It can be used for a long time under 1100°C, and for a short period of time at the highest temperature of 1450°C. Except hydrofluoric acid, quartz glass has no chemical reaction with other acid materials. The acid capacity is 30 times that of ceramic and 150 times that of stainless steel. Especially at high temperatures, the chemical stability is unmatched by any other engineering materials. In addition, Quartz glass has good transmission from the UV to IR spectrum, over 90% transmitted at vision, and especially in the UV spectrum, it can reach more than 80%. The resistance value of quartz glass is equivalent to ten-thousand times of common glass. It is an excellent electric insulation material with good performance, even under high temperatures.



The silver mirror has a high reflectivity in the visible and near-infrared spectral range, and the silver layer coated with a protective film has a good cleanability and firmness. It is 18% at 300nm. At 500nm, the reflectivity is 90%





KEY FEATURES

  • High temperature resistance/good thermal stability
  • Corrosion resistance
  • High light transmission
  • Good electrical insulating properties
  • High Reflectivity Quartz Glass Test Tube Silver Coated Surface For Laser Industry 0

High Reflectivity Quartz Glass Test Tube Silver Coated Surface For Laser Industry 1High Reflectivity Quartz Glass Test Tube Silver Coated Surface For Laser Industry 2



Company profile

Beijing Zhong Cheng Quartz Glass Co., Ltd. (short for ZCQ) founded in 1998, Beijing Zhong Cheng Quartz Glass Co., Ltd. (ZCQ for short) represents a high-tech supplier manufacturing quartz, optical glass, crystal glass products and molding tools located in Changping District, Beijing, China. Our main customers are from overseas countries and mainland China. ZCQ's products are widely in the lines of semiconductors, electronics, coating, laser, chemicals, medical treatment, spaceflight, optical resources, laboratory research, mechanical equipment and others.



We mainly supply:

1. Quartz Products

2. Optical Glass

3. Crystal Glass

4. Some plastic and metal molding tools

High Reflectivity Quartz Glass Test Tube Silver Coated Surface For Laser Industry 3



In Type 1 Quartz Glass, we are supplying:

a. Quartz discs, windows, flats, plates, rings, substrates, wafers, fringes, and panels: both in fine polishing, fine grinding or commercial polishing and grinding; in transparent, nontransparent or opaque statuses

b. CNC Quartz components and parts:

Through CNC design and software control, the Quartz parts can be precisely fabricated especially in doing arcs, slopes, slots, spheres, holes and cones, and taking 3D and angle processing in accordance with clients' own designs.

c. Quartz labware made by thermal treatment:

Tubing, apparatuses and various customer-designed labware can be made.

d. Sio2 Targets (Silicon Dioxide Sputtering Targets): as a thin film and composite coating material for vacuum coating:

Purity: Containing SIO2 of 99.95%-99.9999%

Characteristics: High Purity; Low Air Bubble Density; Low Impurity Content

Category: Grains, Wafers, Discs, Panels, Plates, Rings, and Blocks





In Type 2 and 3 Optical Glass, we are supplying:

a. BK7 glass

b. B270 glass

c. F-series glass

d. Float glass

e. CaF2 glass

f. Quartz Crystal

g. Optical Coating (AR, UV Filters)

h. Other various optical materials



Some typical products:

1. High Precision Windows

Dimension Tolerance: plus/minor 0.1mm ~ plus/minor0.01mm

Flatness: fringe ~ fringe /10

Surface Quality: 60/40 ~ 10/5



2. Ultra Thin Windows

Custom-Made Length / Width / OD by Thickness 1mm ~ 0.05mm



3. High Reflective Coating (HR), Anti-Reflection Coating, Protected Aluminum, and Protected Gold



In Type 4 molding tools, we are supplying:

Through CNC design and control, the metal and plastic molding tools and tooling fixtures for customers' mass production of their products, such as aluminum, copper, metal and others.



We welcome clients both in domestic and overseas markets to contact us for an inquiry and friendly collaboration!
