Ultra Thin Round Optical Quartz Glass Fused Silica Window

  • Ultra Thin Round Optical Quartz Glass Fused Silica Window
Place of Origin China
Brand Name ZCQ
Certification ISO 9001
Model Number ZCQ-OQG-102102
Minimum Order Quantity 1 PCS
Packaging Details Export wooden boxes and cartons
Delivery Time 2-3 weeks
Payment Terms T/T
Supply Ability 100000 tablets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ultra Thin Round Optical Glass Window Material Customer Specified
Colour Clear Shape Circular
Size Customized Thickness 0.1-15mm
Thickness Tolerance 0.001mm-0.05mm Machining Cold Working
MOQ 1 Packing Carton, Wooden Case
High Light

ultra thin optical quartz glass

,

round optical quartz glass

,

ultra thin fused silica window
Leave a Message
Product Description

Ultra Thin Round Optical Glass Window



    Optical glass is the foundation and important component of photoelectric technology industry. Especially after the 1990s, with the continuous integration of optics, electronic information science and new material science, the application of optical glass, as the basic material of optoelectronics, in the three fields of optical transmission, optical storage and photoelectric display has progressed by leaps and bounds, becoming one of the basic conditions for the development of social informatization, especially photoelectric information technology.



Specification parameters
Outline tolerance ±0.005 ~ ±0.2mm Thickness tolerance ±0.001 ~ ±0.05mm
Surface Quality 10/5 ~ 80/50 Surface shape accuracy λ/20 ~ 5λ
Parallelism 10″~ 5′ angle 10″~ 5′
Material Synthetic fused Silica, Fused quartz, IR quartz, Borosilicate glass,Sapphire crystal, K9, B270, etc.
Shape Circular, square, triangular, oval, and other shaped
Dimension Large, Ultra-thin, Regular size
Precision Ordinary refractory, High precision optical
type Plane window, arc window, prism, lens, parts, deepening light glue assembly, etc
Coating

High anti-UV Film, antireflective film, gold, aluminum, silver series quartz

glass, quartz UV filter, curved reflector and so on.

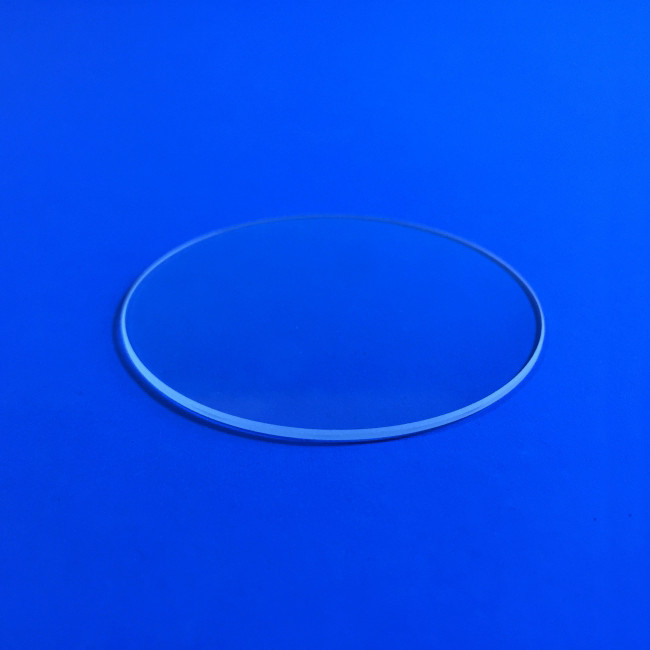

Ultra Thin Round Optical Quartz Glass Fused Silica Window 0

Ultra Thin Round Optical Quartz Glass Fused Silica Window 1

Ultra Thin Round Optical Quartz Glass Fused Silica Window 2
