Product Details
Name High Temperature Resistant Circular Horn Mouth Quartz Glass Tubing Material Quartz Glass
Diameter 0.6-11mm Length 5-500mm
Density 2.203g/cm³ Work Temperature 1100℃
Softening Point 1680℃ Annealed Point 1210℃
Purity 99.99% MOQ 10
High Light

High Purity Quartz Capillary Tube

,

Circular Horn Mouth Quartz Capillary Tube

,

High Temperature Resistant Quartz Capillary Tubing

Leave a Message
Product Description

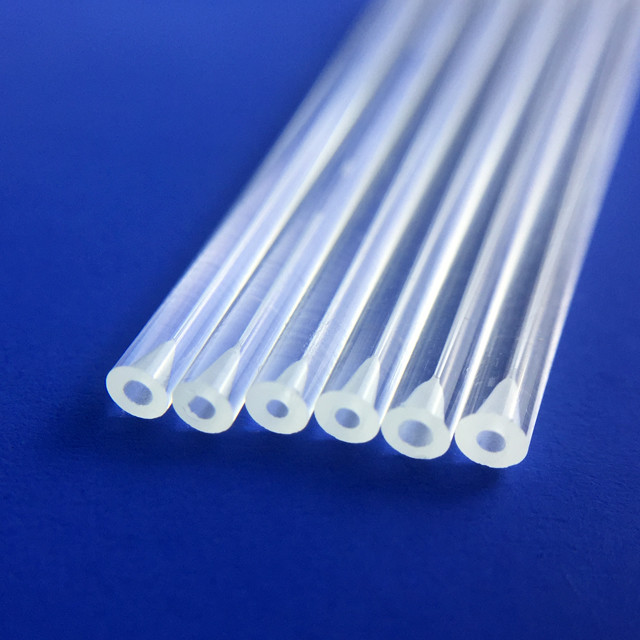

High temperature resistant circular horn mouth quartz glass tubing

High purity Capillary Quartz Tubes & Rods(or Quartz/Glass Capillary Tubes & Rods) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.



Circular capillary tube
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
OD 0.2~11 ±0.03
ID 0.06~10 ±0.03
Square capillary tube
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
Width 0.5x0.5~8x8 ±0.03
ID 0.1x0.1~7x7 ±0.03

Hydroxyl group

<10ppm
Material

Quartz glass,High borosilicate glass

Specification

Other dimensions and tolerances can be manufactured according to customer requirements



High Purity Quartz Capillary Tube High Temperature Resistant Circular Horn Mouth 0High Purity Quartz Capillary Tube High Temperature Resistant Circular Horn Mouth 1High Purity Quartz Capillary Tube High Temperature Resistant Circular Horn Mouth 2

High Purity Quartz Capillary Tube High Temperature Resistant Circular Horn Mouth 3High Purity Quartz Capillary Tube High Temperature Resistant Circular Horn Mouth 4

Rich experience in quartz glass industry

We have more than 25 years industry experience in quartz glass processing. We specialize in quartz glass capillary tubes and rods, quartz glass substrates, CNC machined quartz, and quartz instruments etc. According to product application, we have good grasp of material properties and adapt the proper material into product application.



Strong technical force in processing and application

Beijing Zhong Cheng Quartz Glass Co., Ltd(ZCQ) is a high-tech manufacturer specializing in the production and customization of quartz glass products and optical glass products. We has excellent technical strength, strong innovation ability and stable product quality. Our processing method is rich, drawing of glass, cold and thermal processing, micro size machining, high precision and difficulty process, combination of multiple processing methods, which guarantee that our product is excellent in all aspects.



Integrity and Quality Assurance

We are well known in quartz glass industry. Quality is the lifeline of enterprise survival and development. Integrity is the source of enterprise reputation, the foundation of standing and the foundation of development. Through unremitting efforts and continuous improvement, we have created a good manufacturing platform of optical glass for customers.



High Purity Quartz Capillary Tube High Temperature Resistant Circular Horn Mouth 5
