40 Array Optical Precision Bracket 60mm × 32mm × 5mm High Flatness Optical Mounting Base For Optical Sensor Arrays

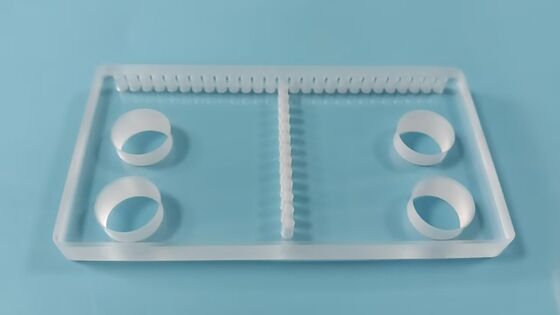

The 40 Array Optical Precision Bracket is a high-precision mounting component engineered for multi-channel optical and sensor applications. Measuring 60mm × 32mm × 5mm, this ultra-thin bracket delivers exceptional dimensional accuracy and structural stability across a broad range of demanding environments. Manufactured from optical-grade quartz and glass materials through precision CNC milling and grinding processes, it provides a standardized 40-position array layout that ensures consistent alignment and repeatable performance in every assembly cycle. Whether deployed in spectroscopy instruments, photoelectric detection systems or high-throughput laboratory test setups, this bracket delivers the flatness, positional accuracy and thermal resilience required for precision-critical optical engineering projects.

• Precision 40-Channel Array Layout: Integrates 40 standardized mounting positions with tight hole and slot tolerances, guaranteeing accurate alignment without deviation during mass component assembly and optical path configuration.
• Ultra-Thin 5mm Profile Design: The slim 5mm thickness allows seamless integration into compact and miniaturized equipment enclosures, maximizing internal space utilization without compromising structural rigidity.
• Superior Surface Flatness: Precision milled and ground surfaces achieve flatness within 0.005mm, ensuring planar stability across the entire bracket area even under fluctuating high and low temperature operating conditions.
• Exceptional Thermal Resistance: Constructed from optical-grade quartz and borosilicate glass materials, the bracket maintains mechanical integrity across an operating temperature range from -50°C to 350°C without warping or deformation.
• Broad Multi-Component Compatibility: Supports array installation of optical lenses, filters, miniature light sources, photoelectric sensors, infrared detectors, cuvettes and quartz sample cells across diverse industries and testing disciplines.
• Standardized Quick Assembly: The uniform array layout enables rapid component removal and replacement, fully compatible with automated batch production and high-throughput assembly workflows for enhanced operational efficiency.
• Long-Term Dimensional Stability: Engineered with stress-relieved material processing techniques to maintain consistent geometric accuracy over extended service life, minimizing recalibration requirements in critical measurement applications.

The 40 Array Optical Precision Bracket is designed for multi-disciplinary use across optical engineering, analytical instrumentation and photonic research environments. In spectroscopy and spectral analysis equipment, it serves as a reliable mounting platform for arranging 40 optical lenses, gratings and filters into precise parallel light paths, significantly improving batch measurement consistency. For photoelectric and infrared sensor systems, the bracket functions as a rigid positioning base that locks 40-channel sensing elements in place while isolating them from mechanical assembly stress, ensuring stable signal output in gas detection analyzers, water quality monitoring devices and material sorting machinery. In biological and chemical laboratory settings, the bracket accommodates high-throughput test workflows by holding 40 cuvettes or quartz sample cells in a standardized array, enabling synchronized light irradiation and parallel sample analysis for accelerated experimental throughput. The bracket also integrates into compact analytical instruments and online monitoring devices as an internal array support structure, where its thin profile conserves valuable enclosure space while delivering the structural reliability required for long-duration unattended operation.

Each 40 Array Optical Precision Bracket is individually inspected for dimensional accuracy, surface flatness and positional tolerance using precision coordinate measuring equipment before shipment. Products are carefully wrapped in anti-static protective film and secured within custom-cut EPE foam inserts to prevent movement and surface contact during transit. The foam-packed units are placed into reinforced export-grade corrugated cartons with clear external labeling for safe handling. Our quality management system is certified to ISO9001 standards, and all products comply with CE and RoHS directives. We offer flexible packaging configurations for bulk orders and provide comprehensive technical support including installation guidance, custom dimension engineering and material selection consultation tailored to your specific application requirements. Standard delivery is completed within 7 to 15 working days, and we welcome OEM and ODM inquiries for custom bracket designs.
