High Precision Custom Glass Capillary Tubes Rectangular For Laboratory

Place of Origin China
Brand Name ZCQ
Certification RoHs
Model Number Custom
Minimum Order Quantity One piece
Packaging Details Standard Safe transportation
Delivery Time 2-4 weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fused Silica Shape Rectangular
Surface Transparent Dimension Custom
Transmission 90% Refractive 1.45845
/ Short-term Use Temperature 1300℃ Long-term Use Temperature 1100℃
Resistivity 7×107Ω.cm Dielectric Loss Coefficient <1×104
High Light

high precision custom glass capillary tubes

,

rectangular glass capillary tubes

,

laboratory glass capillary tubes

Leave a Message
Product Description

High Precision Custom Rectangular Glass Capillary Tubes for Laboratory



High purity Capillary Quartz Tubes & Rods(or Quartz/Glass Capillary Tubes & Rods) with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Tubing is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.



Circular capillary
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
OD 0.2~6 ±0.03
ID 0.06~5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements







Square capillary
Parameter Diameter Tolerance Unit
Length 1~2000 ±0.2 mm
Width 0.3x0.3~6x6 ±0.03
ID 0.1x0.1~5x5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements



Capillary rod
Parameter Diameter Tolerance Unit
Length 1-2000 ±0.2 mm
Square side length 0.2-6 ±0.03
Round diameter 0.06-5 ±0.03
Material Quartz glass, borosilicate glass, and other materials
Specification Other dimensions and tolerances can be manufactured according to customer requirements

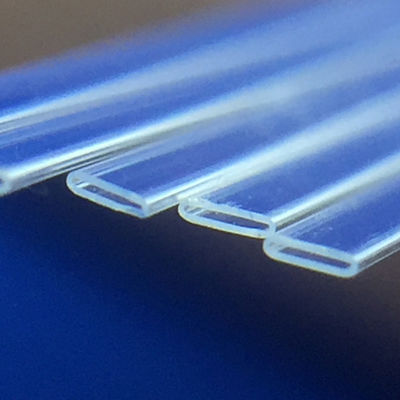

High Precision Custom Glass Capillary Tubes Rectangular For Laboratory 0

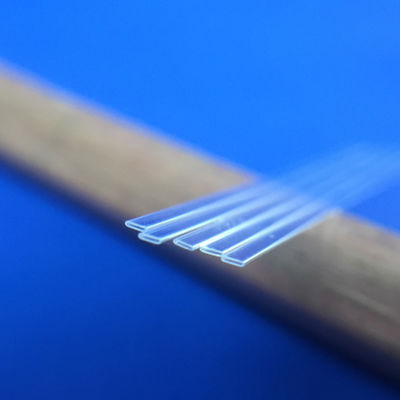

High Precision Custom Glass Capillary Tubes Rectangular For Laboratory 1

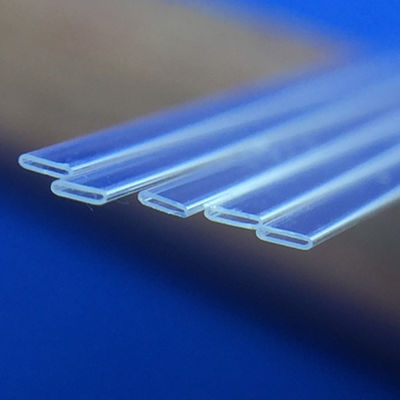

High Precision Custom Glass Capillary Tubes Rectangular For Laboratory 2
