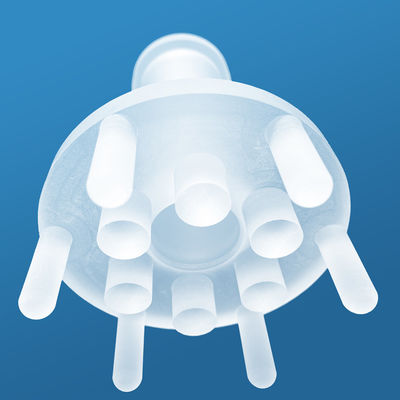

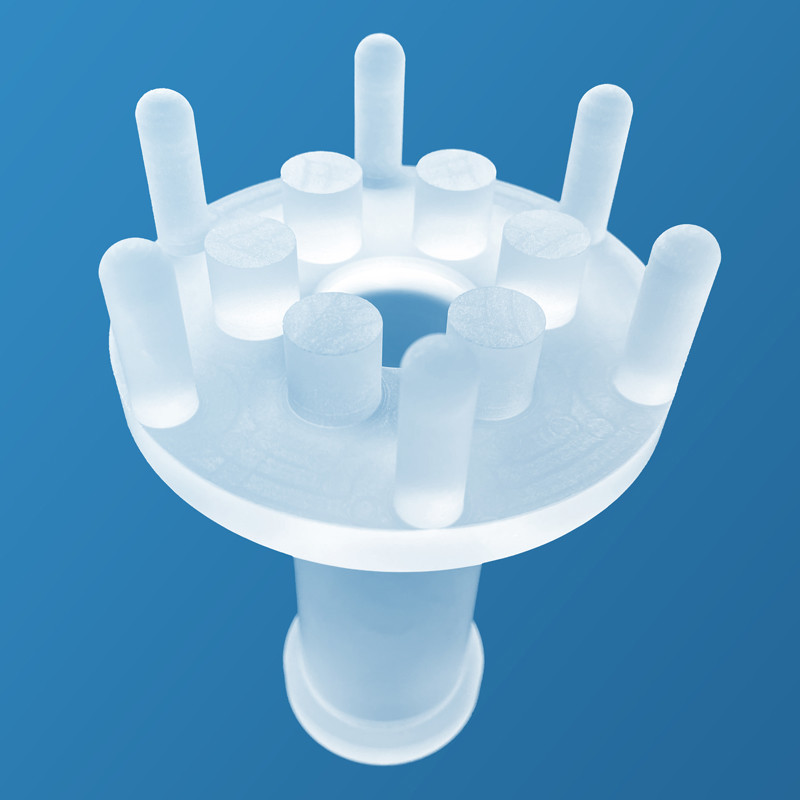

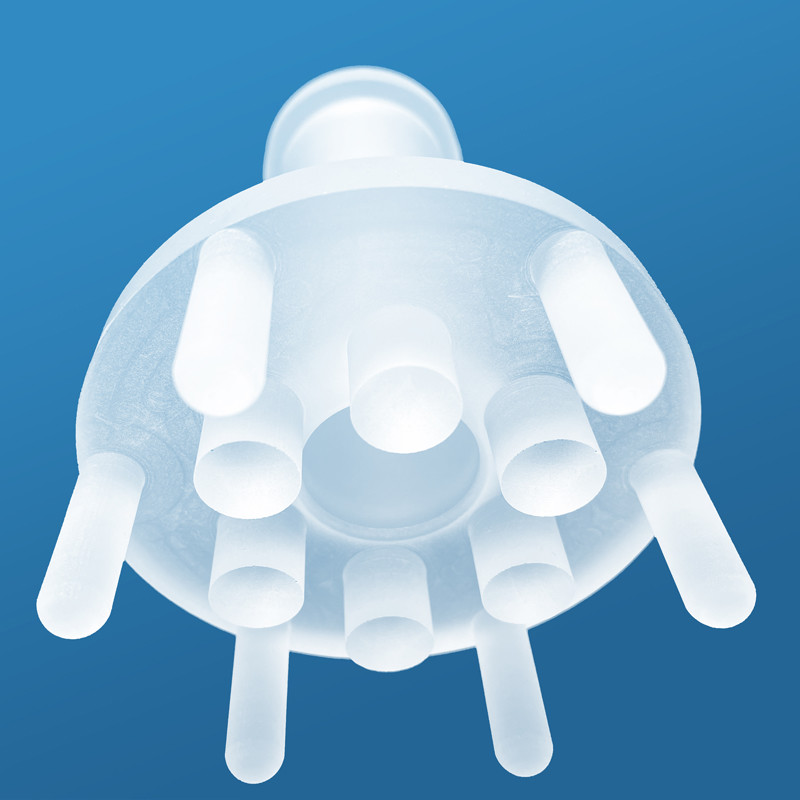

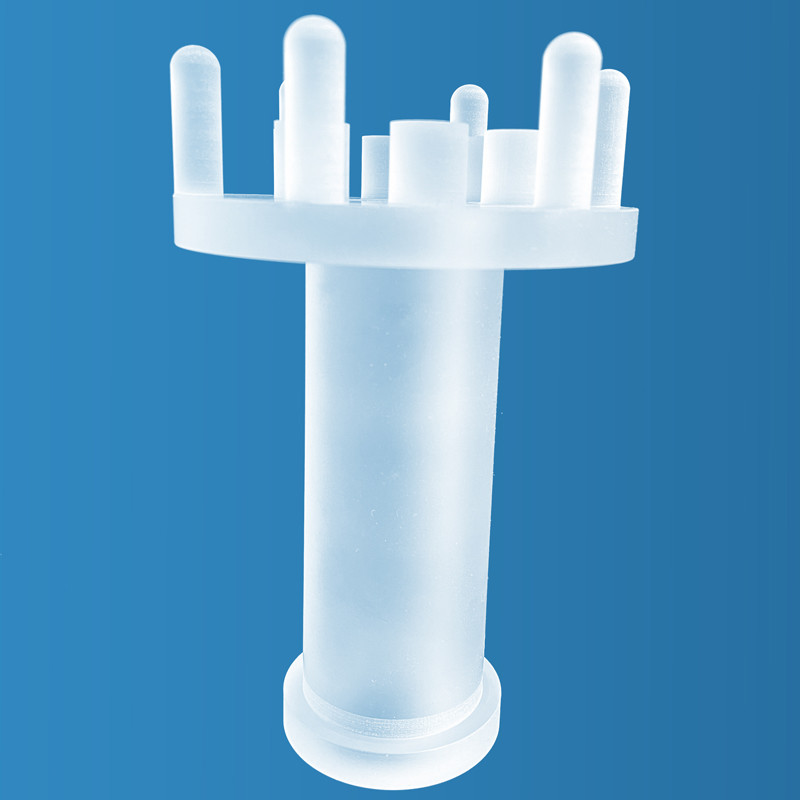

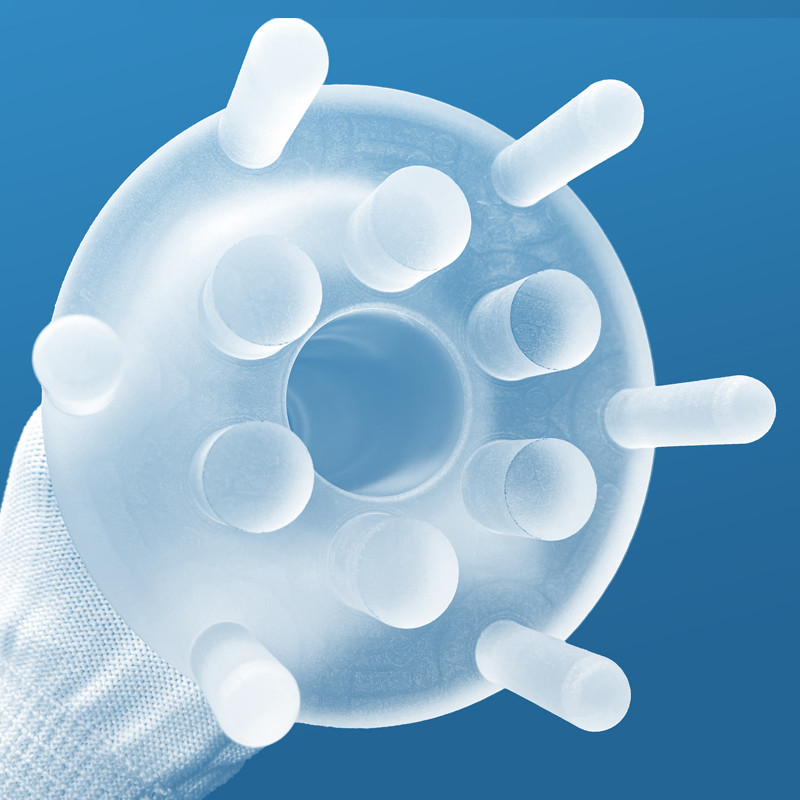

Long Lasting High Precision Quartz Mechanism Support For Semiconductor
| Place of Origin | CHINA |
|---|---|
| Brand Name | ZCQ |
| Certification | ISO 9001 |
| Model Number | OEM |
| Minimum Order Quantity | 1 |
| Price | USD0.1 per piece |
| Packaging Details | carton, wooden case |
| Delivery Time | 5 wooking days |
| Payment Terms | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability | 1000 pieces per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | High Purity Quartz | Density | 2.2g/cm3 |
|---|---|---|---|
| Working Temperature | 1200 Degree | Color | Frosted |
| Application | Semiconductor | Feature | High Precision, Good Performace, Long Service Life |
| High Light | high precision quartz mechanism,long lasting quartz mechanism,semiconductor quartz mechanism |
||
Product Description
High precision Long Lasting Mechanism parts quartz support for semiconductor
Because quartz glass has unique comprehensive properties that other materials do not have, that is, very low thermal conductivity, excellent thermal vibration resistance, high deformation temperature and softening temperature, very low thermal conductivity, very low dielectric loss and optical transmittance in a very wide spectral range from ultraviolet to infrared, quartz glass is made into various parts and is widely used in various fields.
With the help of CNC, ZCQ can achieve precise and difficult machining of the arc, slope, slot, sphere, cylinder, cambered and
curved surface, and angle of the product. The minimum aperture can reach 0.8 mm and the minimum geometric tolerance can reach ±0.02 mm. Finish, surface, roughness and raw materials can be customized according to customer requirement.
curved surface, and angle of the product. The minimum aperture can reach 0.8 mm and the minimum geometric tolerance can reach ±0.02 mm. Finish, surface, roughness and raw materials can be customized according to customer requirement.
Features of product:
* High purity quartz with Silica content 99.99% or above.
* Very low thermal conductivity, excellent thermal vibration resistance
* Very high deformation temperature and softening temperature
* High dielectric electric field strength, low dielectric loss, and low conductivity
* Optical transmittance in an extremely wide spectral range from ultraviolet to infrared
* Very good chemical stability, does not react with water, salt solutions and most acids.
* Excellent radiation resistance.
* Very low thermal conductivity, excellent thermal vibration resistance
* Very high deformation temperature and softening temperature
* High dielectric electric field strength, low dielectric loss, and low conductivity
* Optical transmittance in an extremely wide spectral range from ultraviolet to infrared
* Very good chemical stability, does not react with water, salt solutions and most acids.
* Excellent radiation resistance.
Mechanical Properties
| Density (g/cm3) | 2.203 |
| Modulus of Elasticity (MPa) | 7.25x104 |
| Poisson's Ratio | 0.17 |
| Compressive Strength (MPa) | 1150 |
| Tensile Strength (MPa) | 50 |
| Bending Strength (MPa) | 67 |
| Mohs Hardness | 5.5~6.5 |
| Micro Hardness | 8000~9000 |
Electrical Properties
| Dielectric constant (ε) | 0-106Hz | 3x1010Hz | |
| 3.7 | 3.81 | ||
| Dielectric strength in kV/cm | 20°C | 500°C | |
| 250-400 | 40-50 | ||
| Dielectric loss angle (tg δ) | 1KHz | 1MHz-109Hz | 3x1010Hz |
| <5x10-4 | <1x10-4 | <4x10-4 | |
| Resistivity in Ω·cm | 20°C | 100°C | 400°C |
| 1x1018 | 1x1016 | 1x1010 | |
| Resistivity in Ω·cm | 800°C | 1000°C | 1200°C |
| 6.3x106 | 1x106 | 1.3x105 | |
Company profile
Beijing Zhong Cheng Quartz Glass Co., Ltd. (short for ZCQ) founded in 1998, Beijing Zhong Cheng Quartz Glass Co., Ltd. (ZCQ for short) represents a high-tech supplier manufacturing quartz, optical glass, crystal glass products and molding tools located in Changping District, Beijing, China. Our main customers are from overseas countries and mainland China. ZCQ's products are widely in the lines of semiconductors, electronics, coating, laser, chemicals, medical treatment, spaceflight, optical resources, laboratory research, mechanical equipment and others.
We mainly supply:
1. Quartz Products
2. Optical Glass
3. Crystal Glass
4. Some plastic and metal molding tools
In Type 1 Quartz Glass, we are supplying:
a. Quartz discs, windows, flats, plates, rings, substrates, wafers, fringes, and panels: both in fine polishing, fine grinding or commercial polishing and grinding; in transparent, nontransparent or opaque statuses
b. CNC Quartz components and parts:
Through CNC design and software control, the Quartz parts can be precisely fabricated especially in doing arcs, slopes, slots, spheres, holes and cones, and taking 3D and angle processing in accordance with clients' own designs.
c. Quartz labware made by thermal treatment:
Tubing, apparatuses and various customer-designed labware can be made.
d. Sio2 Targets (Silicon Dioxide Sputtering Targets): as a thin film and composite coating material for vacuum coating:
Purity: Containing SIO2 of 99.95%-99.9999%
Characteristics: High Purity; Low Air Bubble Density; Low Impurity Content
Category: Grains, Wafers, Discs, Panels, Plates, Rings, and Blocks
In Type 2 and 3 Optical Glass, we are supplying:
a. BK7 glass
b. B270 glass
c. F-series glass
d. Float glass
e. CaF2 glass
f. Quartz Crystal
g. Optical Coating (AR, UV Filters)
h. Other various optical materials
Some typical products:
1. High Precision Windows
Dimension Tolerance: plus/minor 0.1mm ~ plus/minor0.01mm
Flatness: fringe ~ fringe /10
Surface Quality: 60/40 ~ 10/5
2. Ultra Thin Windows
Custom-Made Length / Width / OD by Thickness 1mm ~ 0.05mm
3. High Reflective Coating (HR), Anti-Reflection Coating, Protected Aluminum, and Protected Gold
In Type 4 molding tools, we are supplying:
Through CNC design and control, the metal and plastic molding tools and tooling fixtures for customers' mass production of their products, such as aluminum, copper, metal and others.
We welcome clients both in domestic and overseas markets to contact us for an inquiry and friendly collaboration!
