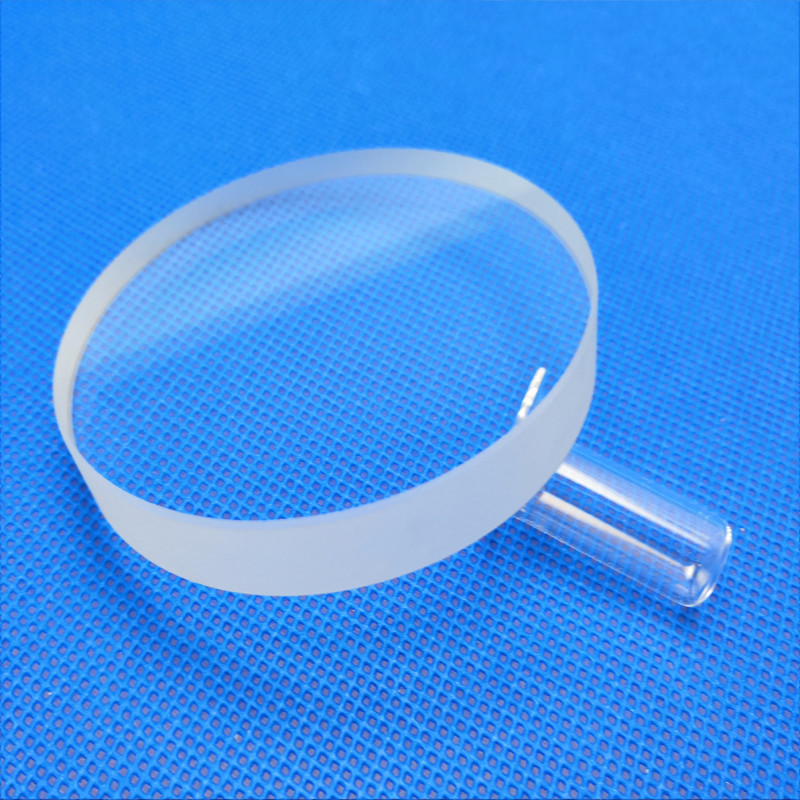

Custom High Purity Synthetic Quartz Glass Plate For Optical

  • Custom High Purity Synthetic Quartz Glass Plate For Optical
Place of Origin CHINA
Brand Name ZCQ
Certification SGS,ISO
Model Number ZCQ
Minimum Order Quantity 1pc
Price USD 1 to 100/day
Packaging Details Wooden box
Delivery Time 5-8 work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fused Silica Purity 99.999%
Applications Optical Surface Polished
Work Temperature 1100degree Dimension Accurate, Tight Tolerance
High Light

high purity quartz glass plate

,

custom synthetic quartz glass plate

,

optical fused silica plate
Leave a Message
Product Description

Custom High Purity Synthetic Quartz Plate for Optical



Synthetic Quartz Property
Density 1.92*103kg/m3
Compression Strength >1.0*109Pa(N/m2)
Coefficient of Thermal Expansion 5.4*10-7cm/cm°C
Thermal Conductivity LOW
Specific Heat 640J/kg°C
Softening point 1600°C
Annealing point 1050°C



Specification Of ZCQ Supply Synthetic Quartz Plate

Parameter Standard Grade Precision Grade Ultra-precision Grade
Dimensional Tolerance +/-0.1 +/-0.1 +/-0.1
Clear Aperture >80% to >90% >80% to >90% >80% to >90%
Surface Quality 60-40 40-20 20-10 to 10-5
Parallelism 1 arc min 30 arc seconds 1 arc min
Wavefront Distortion 1λper 25mm λ/4 λ/10
Protective Bevel <0.25x45 deg <0.25x45 deg <0.25x45 deg
Coating Optional Optional Optional
Dimension Depends on material
Thickness Depends on material



Custom High Purity Synthetic Quartz Glass Plate For Optical 0
