Sio2 High Pressure Transparent Large Diameter Quartz Glass Tube For Uv Lamp
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Sio2 | Out Diameter | 10 To 800mm |
---|---|---|---|
Wall Thickness | 10 To 200 Mm | Temperature | 1100 |
Color | Clear | Name | Sio2 High Pressure Transparent Large Diameter Quartz Glass Tube For Uv Lamp |
High Light | sio2 large diameter quartz glass tube,clear large diameter quartz glass tube,uv lamp clear fused quartz tubing |

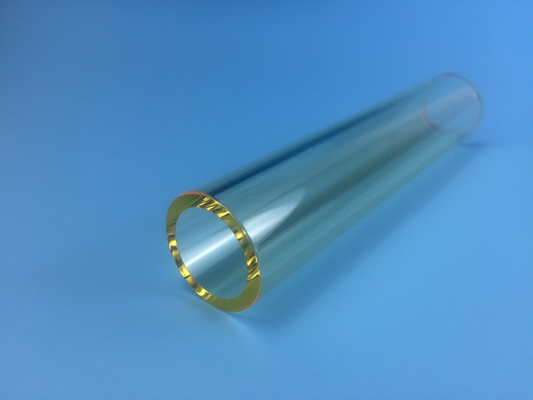

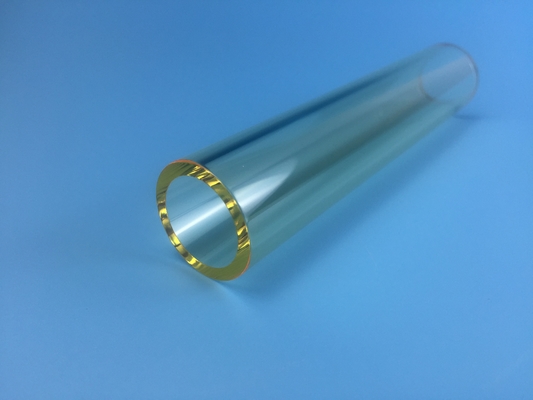

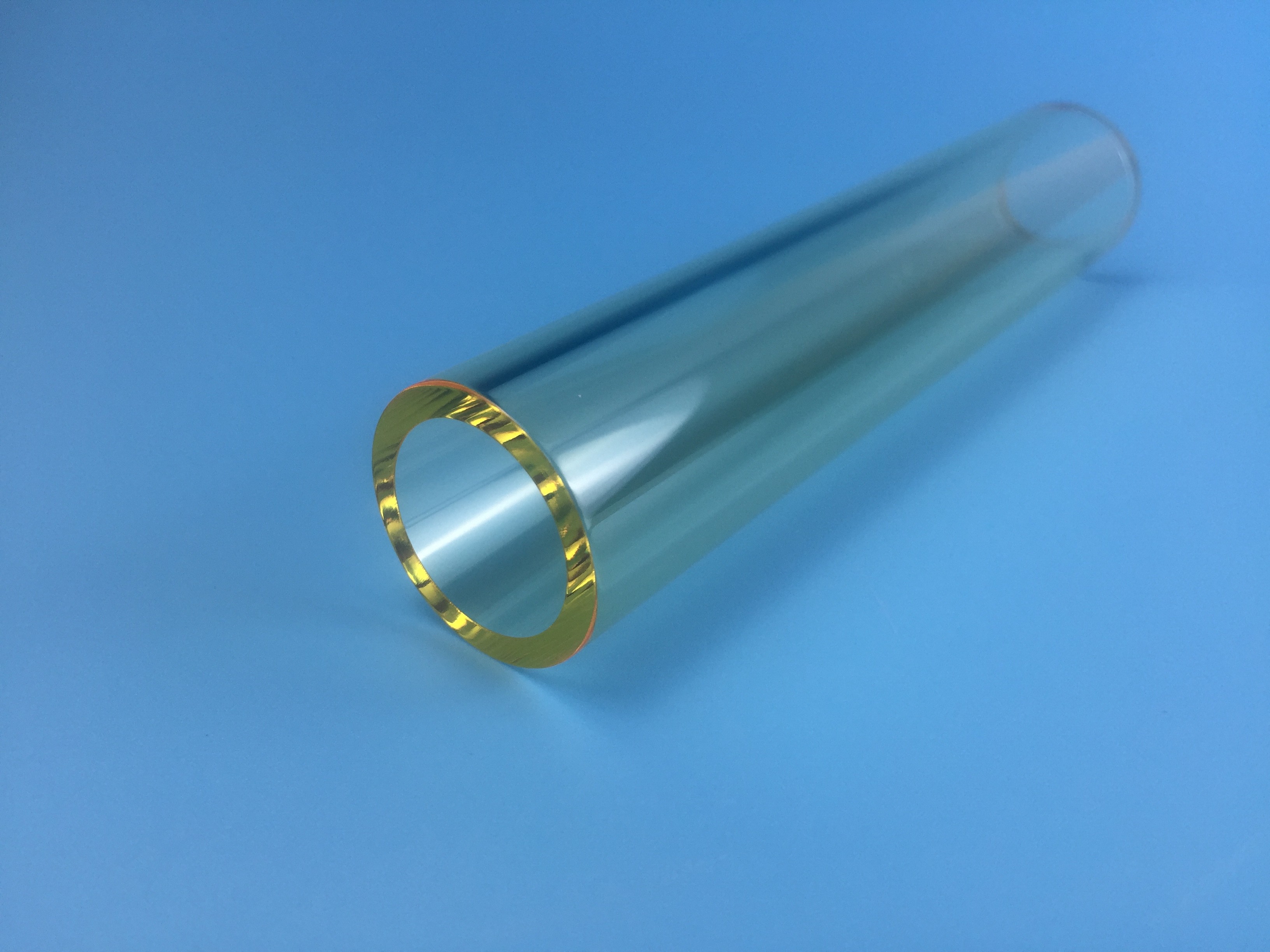

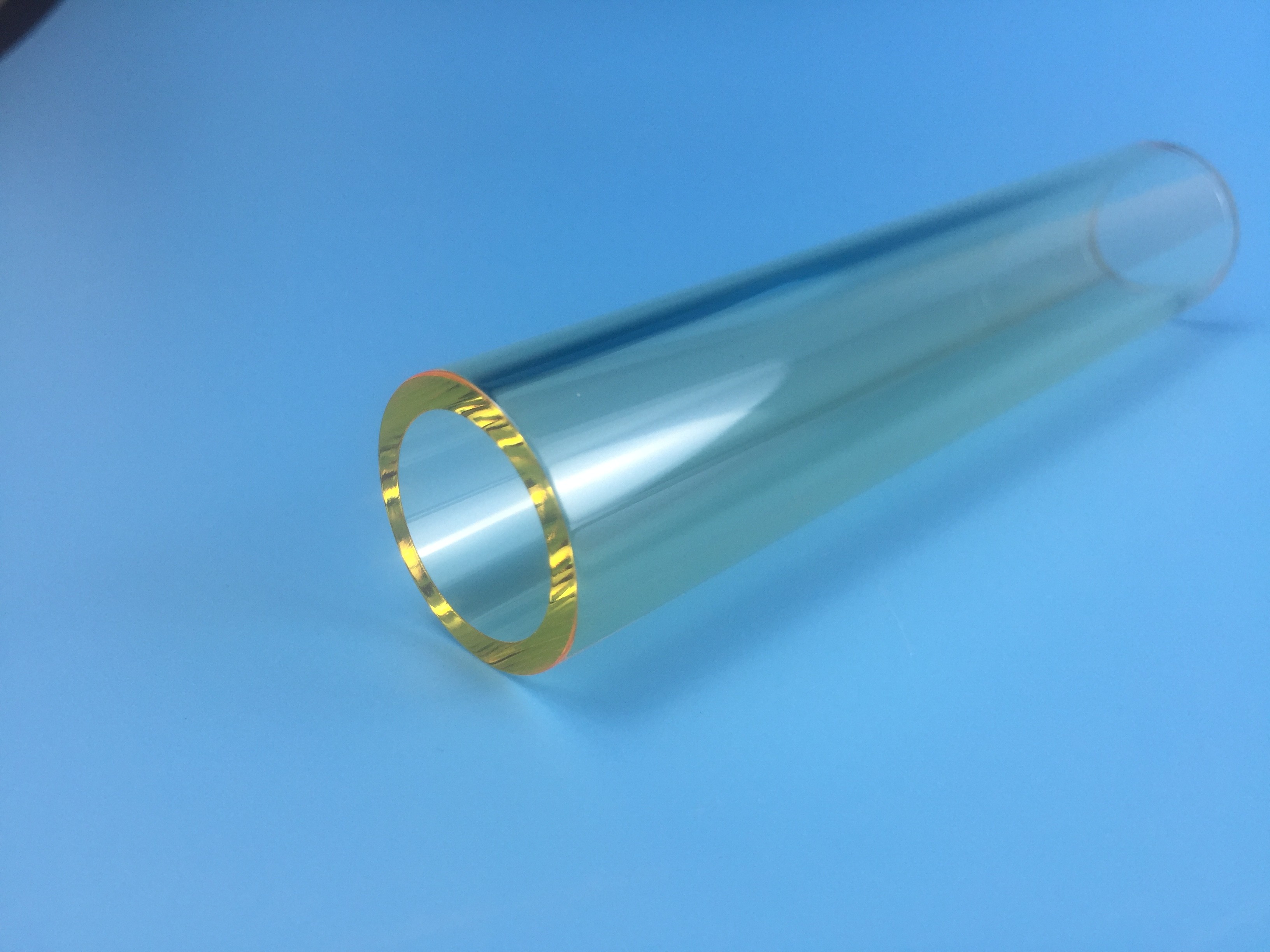

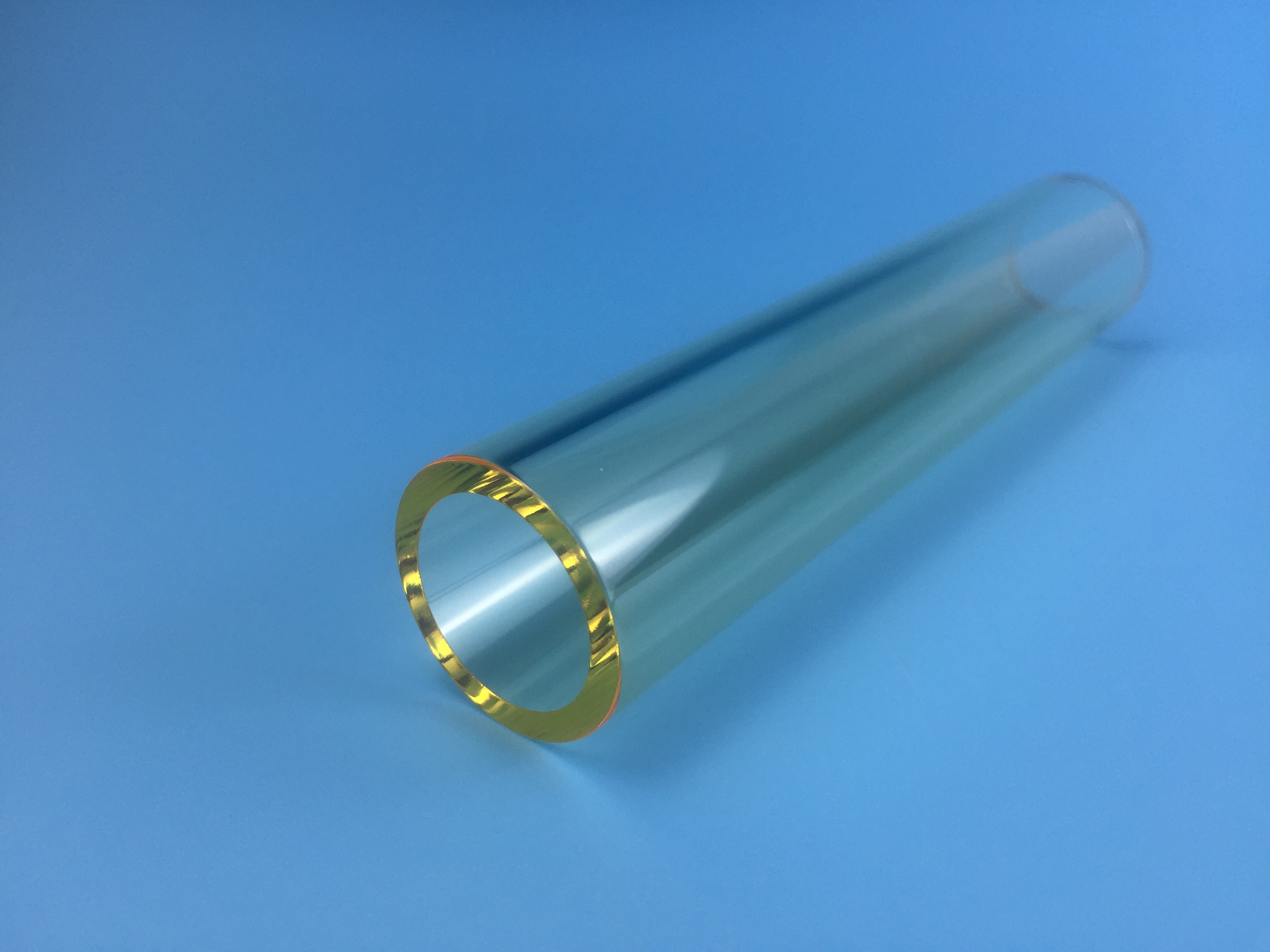

High Pressure Transparent Large Diameter Fused Silica Quartz Glass Tube For UV Lamp
Advantages of quartz tube:
1.Very Low Coefficient of Thermal Expansion |
2.Resistance to High Temperature |
3.High Chemical Purity |
4. High Corrosion Resistance |
5.Extensive Optical Transmission from Ultra-Violet to Infra-Red |
6.Excellent Electrical Insulation Qualities |
Manufacturing Features:
1. Customer Designed Products
2. Different Precise Levels for Different Products
3. Good Quality
4. No Minimum Order
5. Timely Delivery and Various Transport Channels
6. Supply OEM Services
Transmission Of quartz glass tube
Conveniences Wavelength |
Transmission% | ||
nm |
Synthetic Fused Silica |
Fused Quartz | Infrared Optical Quartz |
170 | 50 | 10 | 0 |
180 | 80 | 50 | 3 |
190 | 84 | 65 | 8 |
200 | 87 | 70 | 20 |
220 | 90 | 80 | 60 |
240 | 91 | 82 | 65 |
260 | 92 | 86 | 80 |
280 | 92 | 90 | 90 |
300 | 92 | 91 | 91 |
320 | 92 | 92 | 92 |
340 | 92 | 92 | 92 |
360 | 92 | 92 | 92 |
380 | 92 | 92 | 92 |
400-2000 | 92 | 92 | 92 |
2500 | 85 | 87 | 92 |
2730 | 10 | 30 | 90 |
3000 | 80 | 80 | 90 |
3500 | 75 | 75 | 88 |
4000 | 55 | 55 | 73 |
4500 | 15 | 25 | 35 |
5000 | 7 | 15 | 30 |
