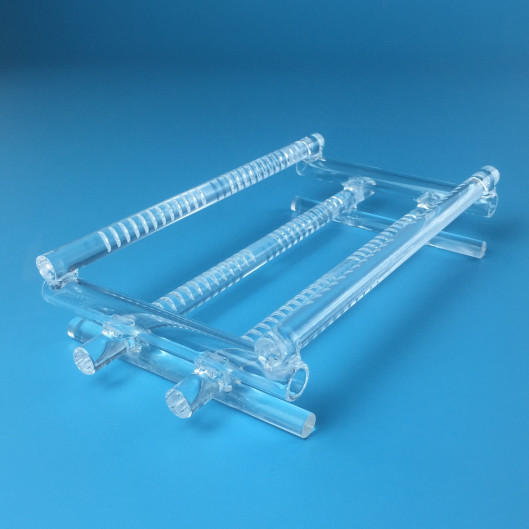

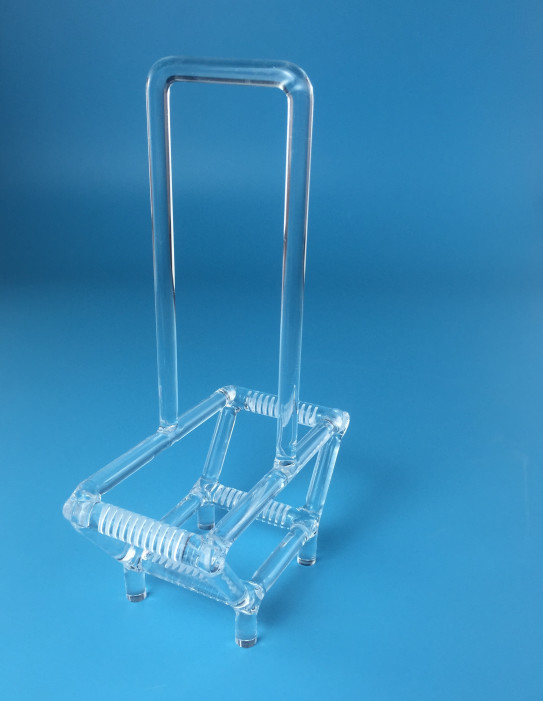

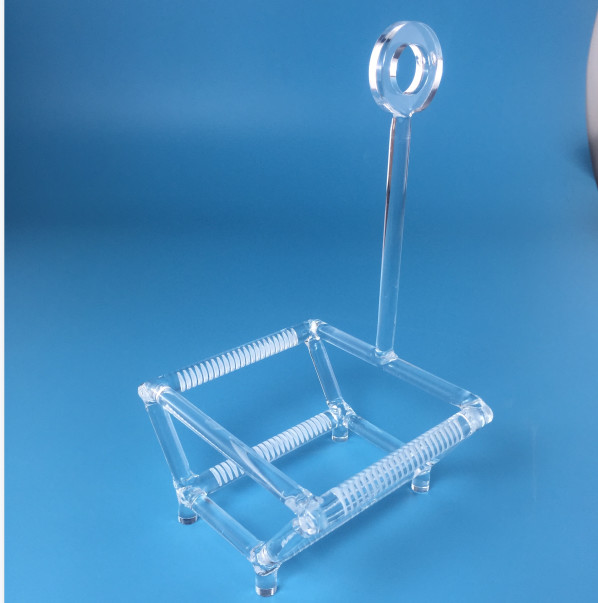

Custom Large 2.2g/Cm2 Quartz Wafer Boat For Solar

Product Description:

The rapid development of the solar energy industry has driven the increasing demand for quartz boats. Our company can customize the quartz boats used in the solar energy industry according to the customer's size, using high-purity quartz rods as raw materials, and high-precision CNC numerical control. , accurate size, to meet the needs of different customers.

Charac Teris Tics Of ZCQ Components

1. Purity:

SiO2 content is more than 99.9%, transparent quartz tube can reaches above 99.95%.

2. Temperature :

softening point temperature is about 1730 degrees Celsius ,1100 degrees Celsius in a long time used ,short-time maximum use temperature is up to 1450 degrees Celsius.

3. Anti-corrosion:

Quartz glass is acidic materials, except hydrofluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. At room temperature, alkali and salt on quartz glass corrosion degree is minimal.

4. Transmittance good performance :

Compare to ordinary silicate glass, transparent quartz tube in the whole wavelength head excellent permeability. In the infrared spectrum through than ordinary glass; in the visible region, quartz glass transmittance is relatively high ,above 85%-90%. In the UV spectral region especially in the ultraviolet region, the spectral transmission is much better than other glass,about 80%.

5. Good electrical insulation properties :

Quartz glass with high dielectric strength and very low electrical conductivity, even in high temperature, high pressure and high frequency,it can still maintain high dielectric strength and resistance, in the application of the band almost no dielectric loss, therefore the quartz glass is an excellent high temperature dielectric insulating material.

6.Thermal stability :

The thermal expansion coefficient of quartz galss is extremely small ,it can be able to adapt drastic temperature changes.

Application :

Widely used for high technology fields such as semiconductor technology, integrated circuit production, optical fiber telecom, laser technology,space flight technolody, national defense war industry and optical industry etc.

Mechanical Property:

Packing:

Safe packing in wooden box or carton, with bubble pad for anti-collision protection.
