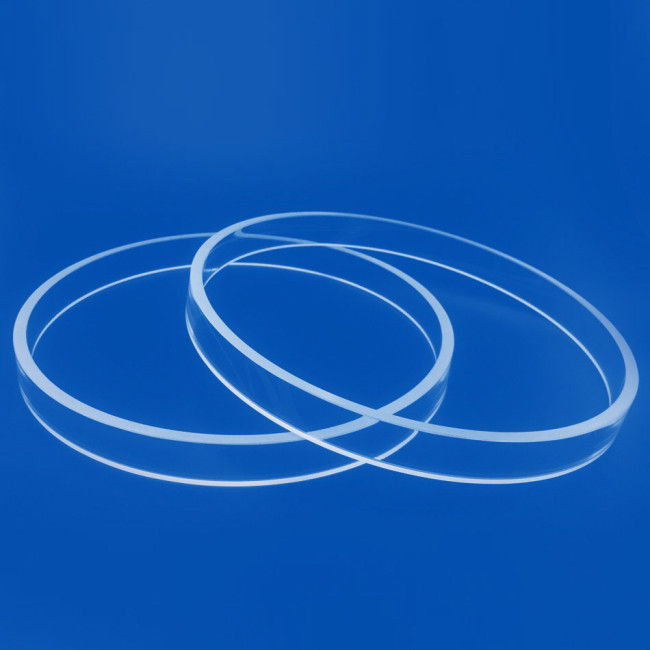

300mm Diameter Fused Silica Ring Large Size Transparent

Place of Origin China
Brand Name ZCQ
Certification SGS
Model Number ZCQ-QGT-04
Minimum Order Quantity 1pc
Price USD 1 to 100 /pcs
Packaging Details Wooden box
Delivery Time 5-10 work day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000000pcs/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 300mm Diameter Large Size Transparent Fused Silica Ring Material Fused Silica
Color Clear Length 50-1000mm
Accuracy +/-0.5mm Long-time Use Temperature 1100℃
Softening Point 1683℃ Annealing Point 1210℃
Service Customizable MOQ 1
High Light

300mm diameter fused silica ring

,

large size fused silica ring

,

transparent fused silica ring

Leave a Message
Product Description

300mm Diameter Large Size Transparent Fused Silica Ring



Quartz tube is a special industrial technology glass made of silica. It is a very excellent basic material.
1. High temperature resistance. The softening point temperature of quartz glass is about 1730 ℃, which can be used for a long time at 1100 ℃, and the maximum service temperature in a short time can reach 1450 ℃.
2. Corrosion resistance. Except hydrofluoric acid, quartz glass hardly reacts with other acids. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel. Especially its chemical stability at high temperature is unmatched by any other engineering materials.
3. Good thermal stability. The coefficient of thermal expansion of quartz glass is very small and can withstand drastic temperature changes. If the quartz glass is heated to about 1100 ℃, it will not burst in normal temperature water.

4. Good light transmittance. Quartz glass has good light transmission performance in the whole spectral band from ultraviolet to infrared, and the visible light transmittance is more than 93%, especially in the ultraviolet spectral region, the maximum transmittance can reach more than 80.
5. Good electrical insulation. The resistance value of quartz glass is 10000 times that of ordinary glass. It is an excellent electrical insulation material and has good electrical properties even at high temperature.

300mm Diameter Fused Silica Ring Large Size Transparent 0

300mm Diameter Fused Silica Ring Large Size Transparent 1

Rich experience in quartz glass industry

We have more than 25 years industry experience in quartz glass processing. We specialize in quartz glass capillary tubes and rods, quartz glass substrates, CNC machined quartz, and quartz instruments etc. According to product application, we have good grasp of material properties and adapt the proper material into product application.



Strong technical force in processing and application

Beijing Zhong Cheng Quartz Glass Co., Ltd(ZCQ) is a high-tech manufacturer specializing in the production and customization of quartz glass products and optical glass products. We has excellent technical strength, strong innovation ability and stable product quality. Our processing method is rich, drawing of glass, cold and thermal processing, micro size machining, high precision and difficulty process, combination of multiple processing methods, which guarantee that our product is excellent in all aspects.



Integrity and Quality Assurance

We are well known in quartz glass industry. Quality is the lifeline of enterprise survival and development. Integrity is the source of enterprise reputation, the foundation of standing and the foundation of development. Through unremitting efforts and continuous improvement, we have created a good manufacturing platform of optical glass for customers.

300mm Diameter Fused Silica Ring Large Size Transparent 2
