Ar Coating Optical Quartz Glass End Cap For Fiber Laser Connector

  • Ar Coating Optical Quartz Glass End Cap For Fiber Laser Connector
  • Ar Coating Optical Quartz Glass End Cap For Fiber Laser Connector
Place of Origin China
Brand Name ZCQ
Certification SGS,ISO
Model Number ZCQ
Minimum Order Quantity 10PCS
Price USD 10-20/PCS
Packaging Details Carton
Delivery Time 5-10working day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability 10000PCS/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fused Quartz，Corning 7979, Corning 7980, Heraeus 300, Heraeus 313, And Other Custom Material Coating AR Coating
SD 10/5 Dimension Custom
Tolerance ±0.02mm Surface Transparent Or Grinded, Coated Or Uncoated
Application Laser Processing Equipment. Other Description Fiber Laser Connector
High Light

end cap optical quartz glass

,

fiber laser connector optical quartz glass

,

ar coating optical quartz glass
Leave a Message
Product Description
Parameter Unit Value
Diameter of fiber core um 10~800
Numerical aperture NA 0.06/0.46
Size MM 2*4 or 8*20
Angle deg 0±0.5 or 8±0.5
Output beam M2 ≦1.5
Fiber length M 1~15
Operating wavelength nm 900~1100
Max. holding power W 50~10000
Insert loss dB ≦0.3
Return loss dB ≧50
Operating temperature ℃ -5~+70
Storage temperature ℃ -40~+85

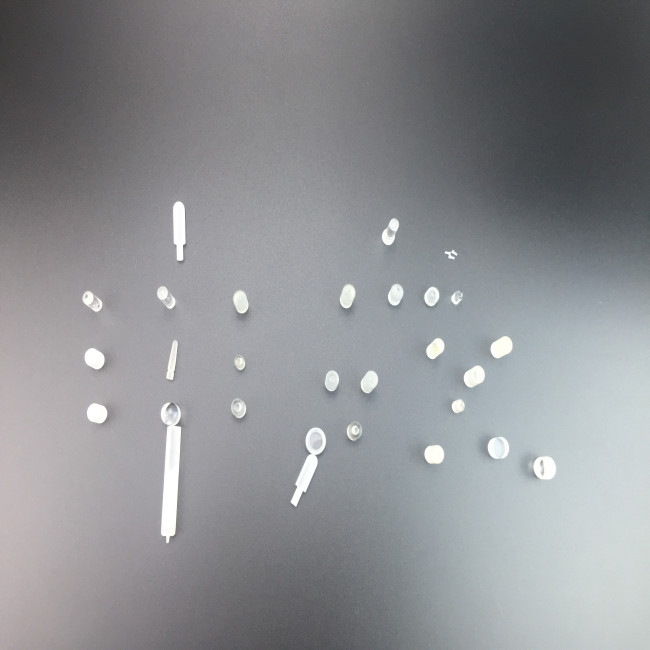

Ar Coating Optical Quartz Glass End Cap For Fiber Laser Connector 0

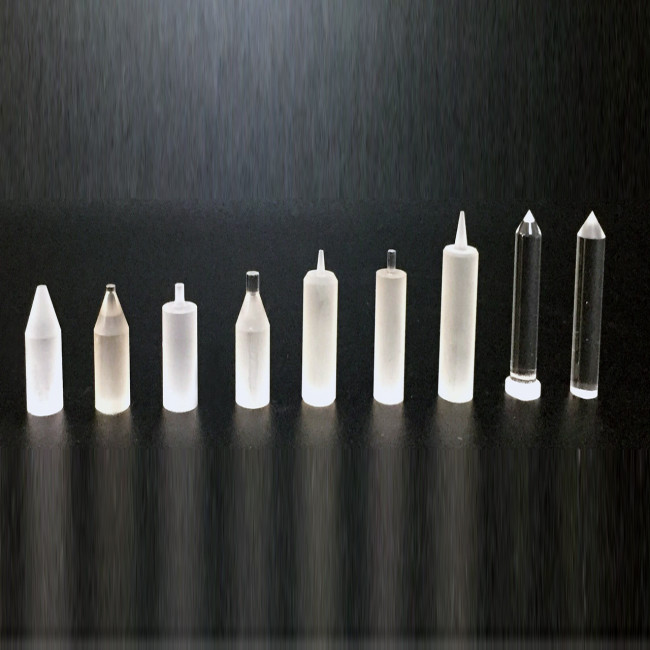

Ar Coating Optical Quartz Glass End Cap For Fiber Laser Connector 1Ar Coating Optical Quartz Glass End Cap For Fiber Laser Connector 2
